4. CONFIGURATION

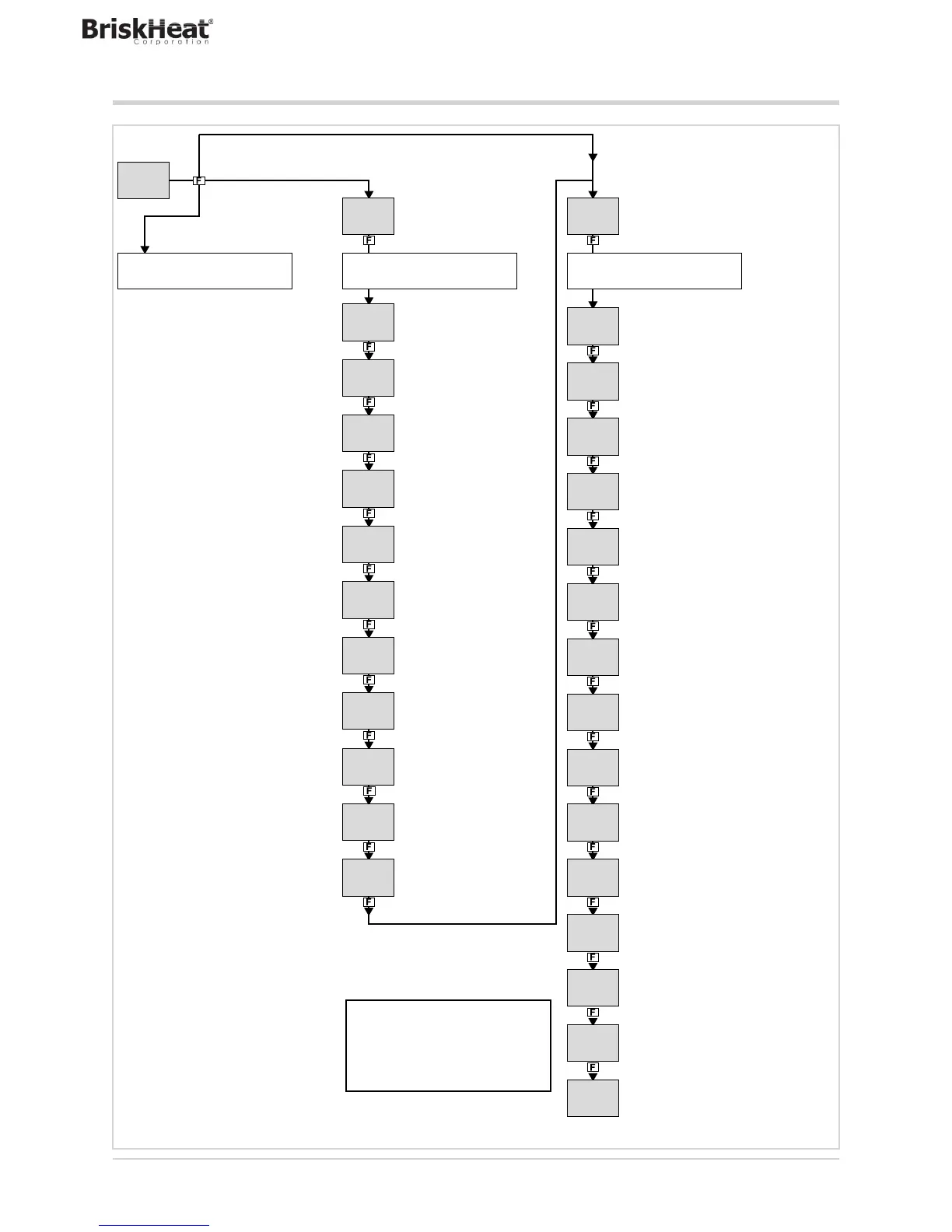

4.2. Main menu
0000
0000
0
PASS1
INFO
PR.OPT
PR.STP
I.MAIN
I.SPR
I.CT1
I.CT2
ALARM
AL.HB
PID
PID.GR
0
PASS2
I.DIGT
OUTPU
OUT.AN
VALVE
MODE
TIMER
ENERG
SERIA
HMI
LINRZ
US.CAL
PASC1
PASC2
FI.CFG
0000
0000
Home
Insert password 1
Configuration of
Heater Break alarm
Configuration of
control parameters
Configuration of
groups of control
parameters
Insert password 2
Configuration of
digital inputs
Configuration of
outputs
Configuration of analog
retransmission output
Configuration of
valve parameters
Configuration of
function modes
Configuration of
timer parameters
Configuration of
energy counter
parameters
Configuration of
serial
Configuration of
display and keypad
Configuration of
custom linearization
User calibrations
Setting level
1 password
Setting level
2 password
Entering reset code
(optional)
Home
Display information
Configuration
of programs
Configuration
of program steps
Configuration
of main input
Configuration
of remote setpoint
input
Configuration of CT1
current transformer input
Configuration of CT2
current transformer input
Configuration of
intercepts
> 2 s
> 6 s
Submenu
pag.
Submenu
pag.
Pag.
If password is correct, enter menu,
if not, Home
User configuration menu
(max 50 parameters)
If password is correct, enter menu,
if not, Home
If you correctly enter the reset code, the
factory configuration is restored and all
custom configurations are lost; if not,
Home
ATTENTION!
The reset procedure is not reversible.
46
53
<?>
63
69
<?>
74
76
80
<?>
92
96
99
104
107
110
115
<?>
121
123
129
131
136
136
136
