151
STEP2 - setting events at start of step:
•
EVN.r
.1 = OFF
•
EVN.r
.2 = OFF
•
EVN.r
.3 = On
•
EVN.r
.4 = nonE
STEP2 - setting events at start of hold:
•
EVN.h.1 = nonE
•
EVN.h.2 = nonE
•
EVN.h.3 = OFF
•
EVN.h.4 = nonE

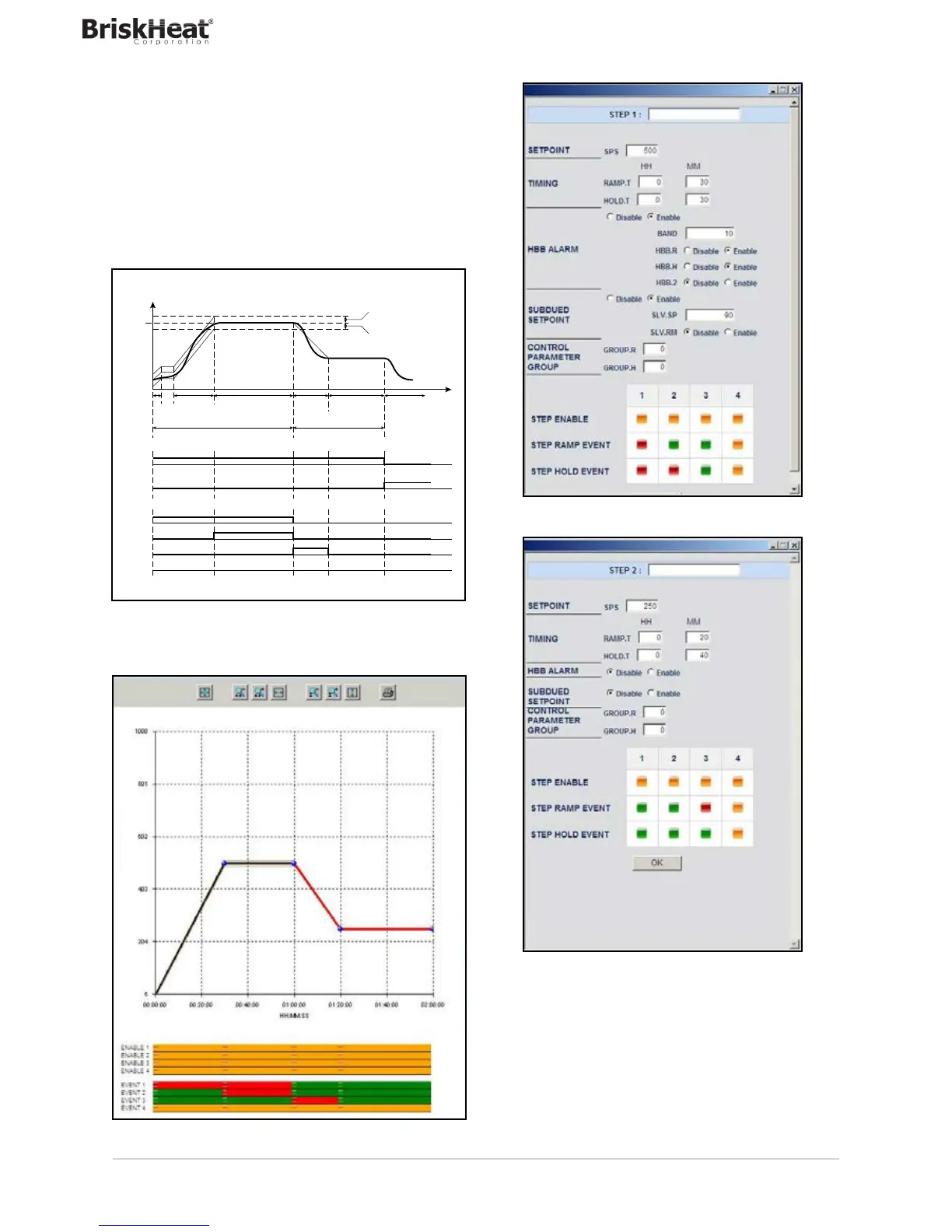

Using GF_eXpress softwar
e for the configuration, the di-
splayed pages would be:
Program diagram
Configuration of STEP 1
Configuration of STEP 2
5. Examples and applicative notes
Wait band
Wait band
time
END
STEP 1
STEP 2
PV
Set
point
SP
t1
t2
Soak time
Ramp
time
Soak time
t1 + t2 = Ramp time
RUN
PRG
END
PRG
EV1
EV2
EV3
EV4
Gefran 650/1250/1350 Temperature Controller – Abbreviated Manual
40524-04 Rev0
76
