37
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
B B
C C

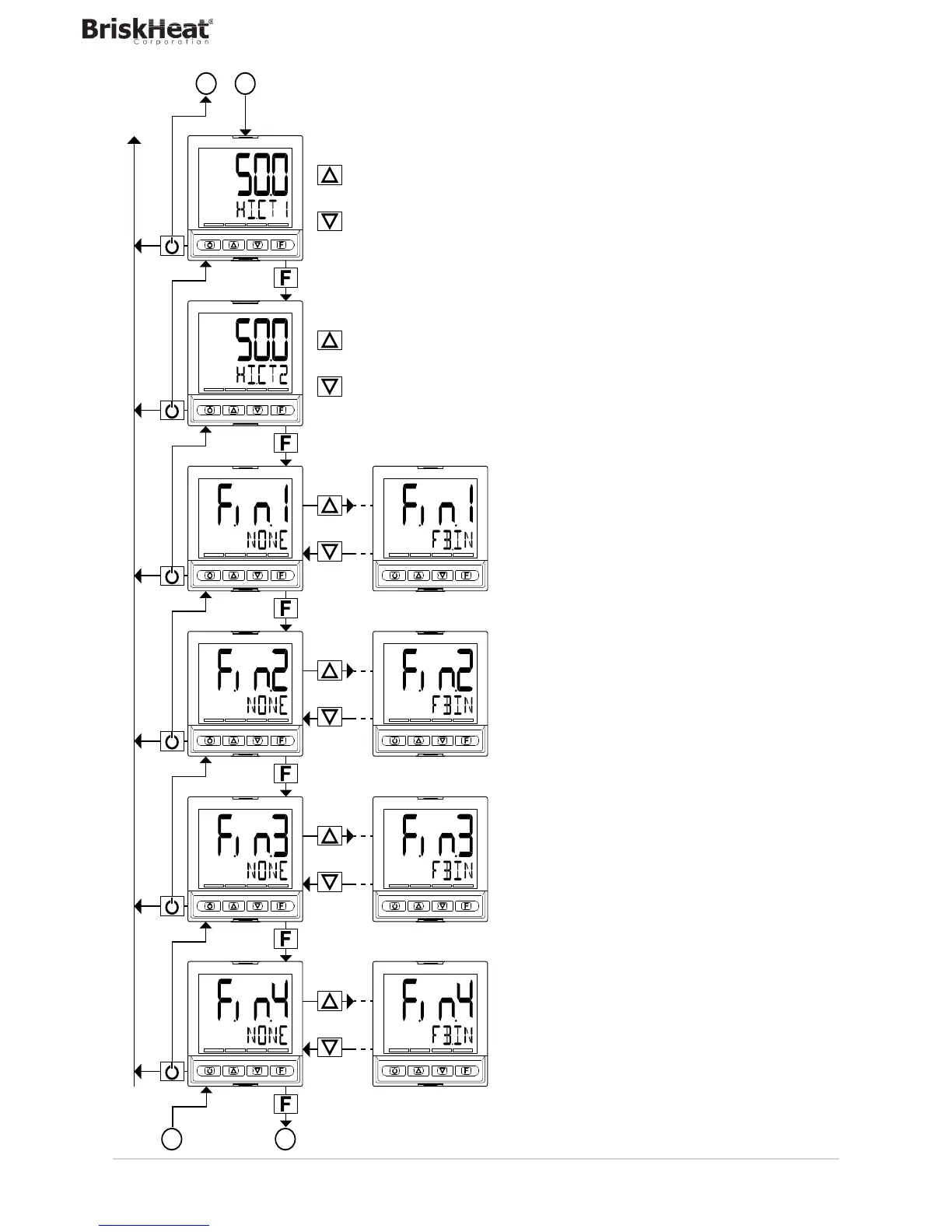

Selecting digital input 1 function
The menu item appears only if the optional input is available
Selecting digital input 2 function
The menu item appears only if the optional input is available
Selecting digital input 3 function
The menu item appears only if the optional input is available
Full-scale value of current transformer CT1
The menu item appears only if the optional input is available
Full-scale value of current transformer CT2
The menu item appears only if the optional input is available
Raises the value
Raises the value
Lowers the value
Lowers the value
Home
Selecting digital input 4 function
The menu item appears only if the optional input is available
(for models 1250 and 1350 only).
3. COMMISSIONING
Gefran 650/1250/1350 Temperature Controller – Abbreviated Manual
40524-04 Rev0
