124 ADV200 • Functions description and parameters list
22.8 – FUNCTIONS/DOUBLE PAR SET

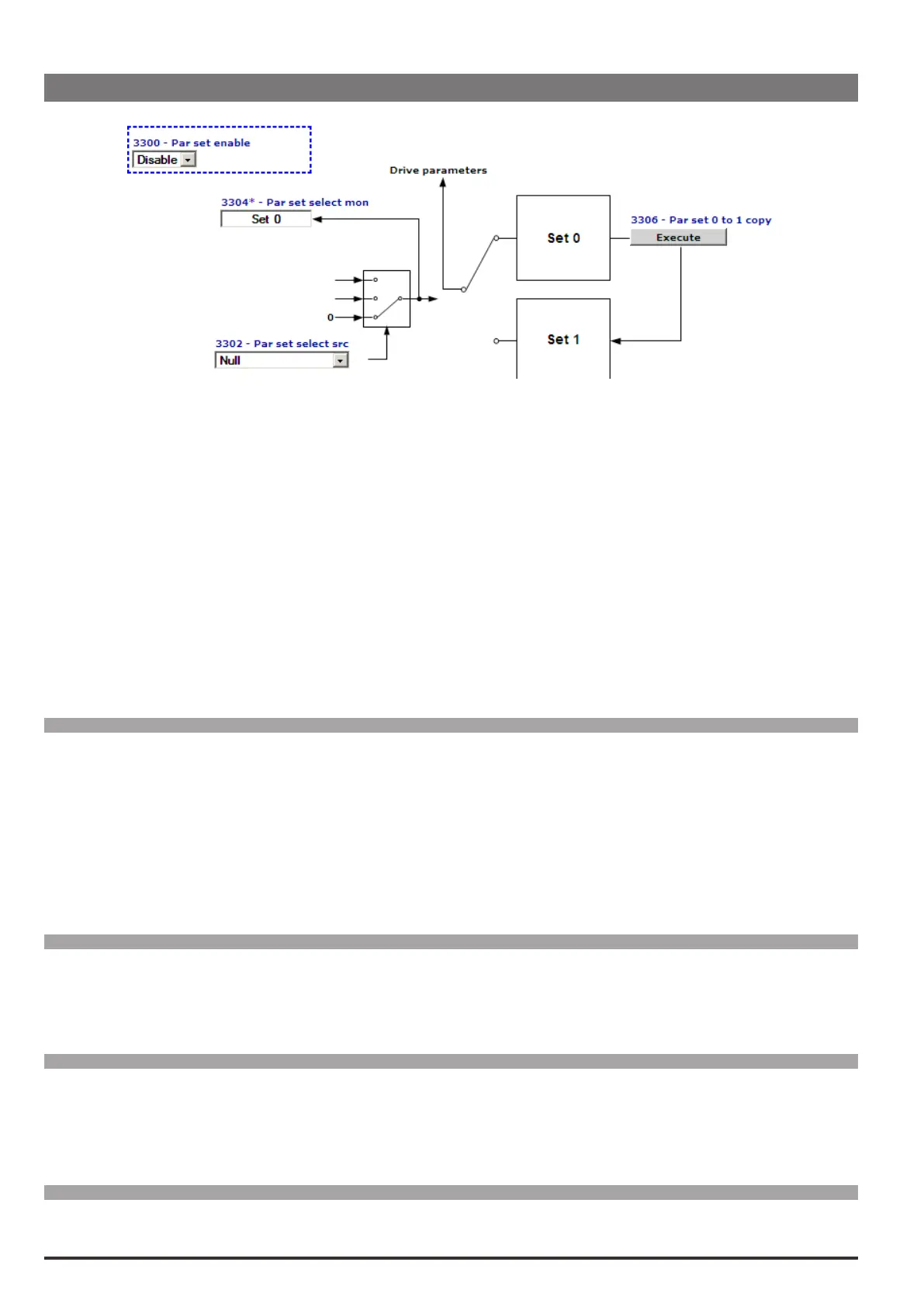

Two independent sets of parameters can be stored in the ADV200 drive. These can be selected via the keypad or by
using an external command.
This makes it possible to change all the drive parameters quickly and automatically according to the various operating
requirements. For example, two motors with different characteristics can be controlled alternately.
MDPLC application parameters are not included in the two sets of parameters. This makes it possible to switch be-
tween all drive parameters in two separate groups, while having a single set of parameters for the application.
With the GF_eXpress congurator this function can be managed using the commands in the program toolbar.
R0|1 -> “read set 0/1”
This command is used to read set 0 (and store set 1 in a .gfe le) or vice versa, depending on which set is currently active
W0|1 -> “ write set 0/1”
This command is used to load both sets of parameters to the drive
The toolbar commands “Copy set 0” and “Copy set 1” are used, after opening a .gfe le where the two sets have been
stored, to load set 0 and set 1, respectively, to the parameter grid, without interacting with the drive. The previous contents of
the parameter grid (which will not necessarily have coincided with either set 0 or set 1) are lost. Use this command to nd out
which values will actually be sent to the drive.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.8.1 3300 Par set enable ENUM Disable 0 1 ERW FVS
Enabling of management of two parameter sets
0 Disable
1 Enable
When set to 0 only one parameter set is managed (the one used as the default set).
If set to 1 two separate parameter sets can be congured. These can be selected using a command signal on a
digital input of the terminal strip.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.8.2 3302 Par set select src LINK 16 6000 0 16384 ERWZ FVS
Selection of the origin (source) of the signal to be used to select the parameter set. The terminal or digital
command that can be associated with this function can be selected from among those available in the “L_DIG-
SEL2” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.8.3 3304 Par set select mon ENUM 16 Set 0 0 0 ER FVS
The parameter set currently in use is displayed.
0 Set 0
1 Set 1
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.8.4 3306 Par set 0 to 1 copy BIT 0 0 1 ERW FVS
