140 ADV200 • Functions description and parameters list
22.14 - FUNCTIONS/BRAKE CONTROL
This function is used to control the motor parking brake.
Do not use the Brake control and the Speed Capture functions together, as the latter, if enabled before the Start
command, attempts to execute synchronisation with the motor speed and with the brake closed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.14.1 3170 Brake control funct ENUM Disable 0 3 ERWZ FVS
This parameter is used to enable the Brake control funct.
0 Disable
1 Standard
2 Hoist mode 1
3 Hoist mode 2
If set to 0 the function is disabled:
If set to 1 the function is enabled.
Set to 2 to enable the Hoist mode 1 function for hoisting applications using the standard drive.
Set to 3 to enable the Hoist mode 2 function for hoisting applications using the drive with the special “Position-
er” application.
In “Hoist mode 1” all the parameters between PAR 3170 and PAR 3186 are used, whereas in “Hoist mode
2” PAR 3188 and 3190 are also used, but parameter 3182 is ineffective (since it is the “torque” value that is
considered, not the “current”).
If the drive is in “V/f” control mode, the only possible selection is “Standard” and “Hoist mode 1”.
If “Hoist mode 2” is enabled and the drive is thus in “Flux vector CL” or “Flux vector OL” mode, when switch-
ing to “V/f control” the brake control mode (PAR 3170) is automatically set to “Disable”.
The following can be selected, depending on the control mode used:
1) V/f control -> “Standard” ; “Hoist mode 1” (for asynchronous motors)
2) Flux vector CL -> “Standard” ; “Hoist mode 1” ; “Hoist mode 2”
3) Flux vector OL -> “Standard” ; “Hoist mode 1” ; “Hoist mode 1”

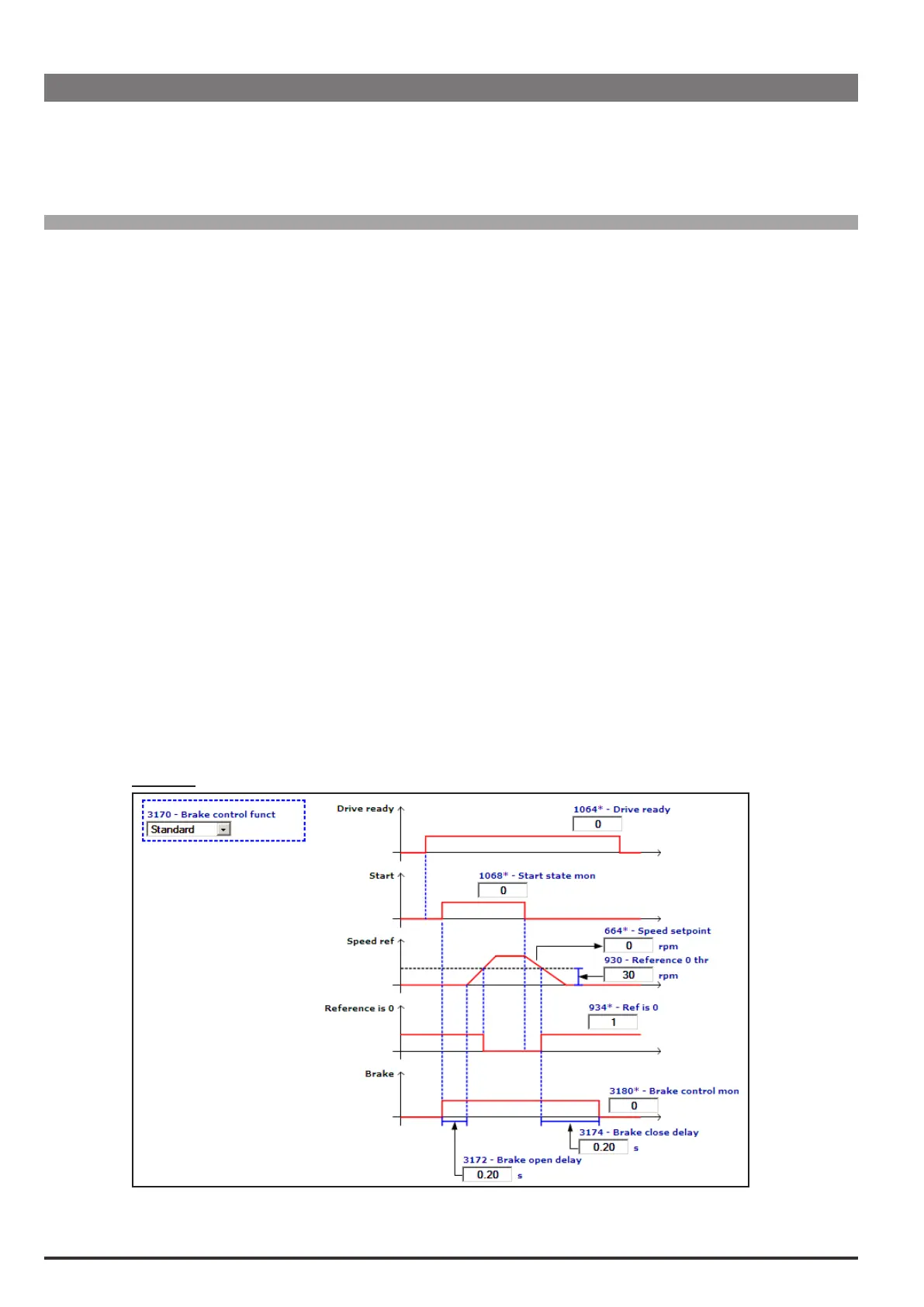

Standard
