34 ADV200 • Functions description and parameters list

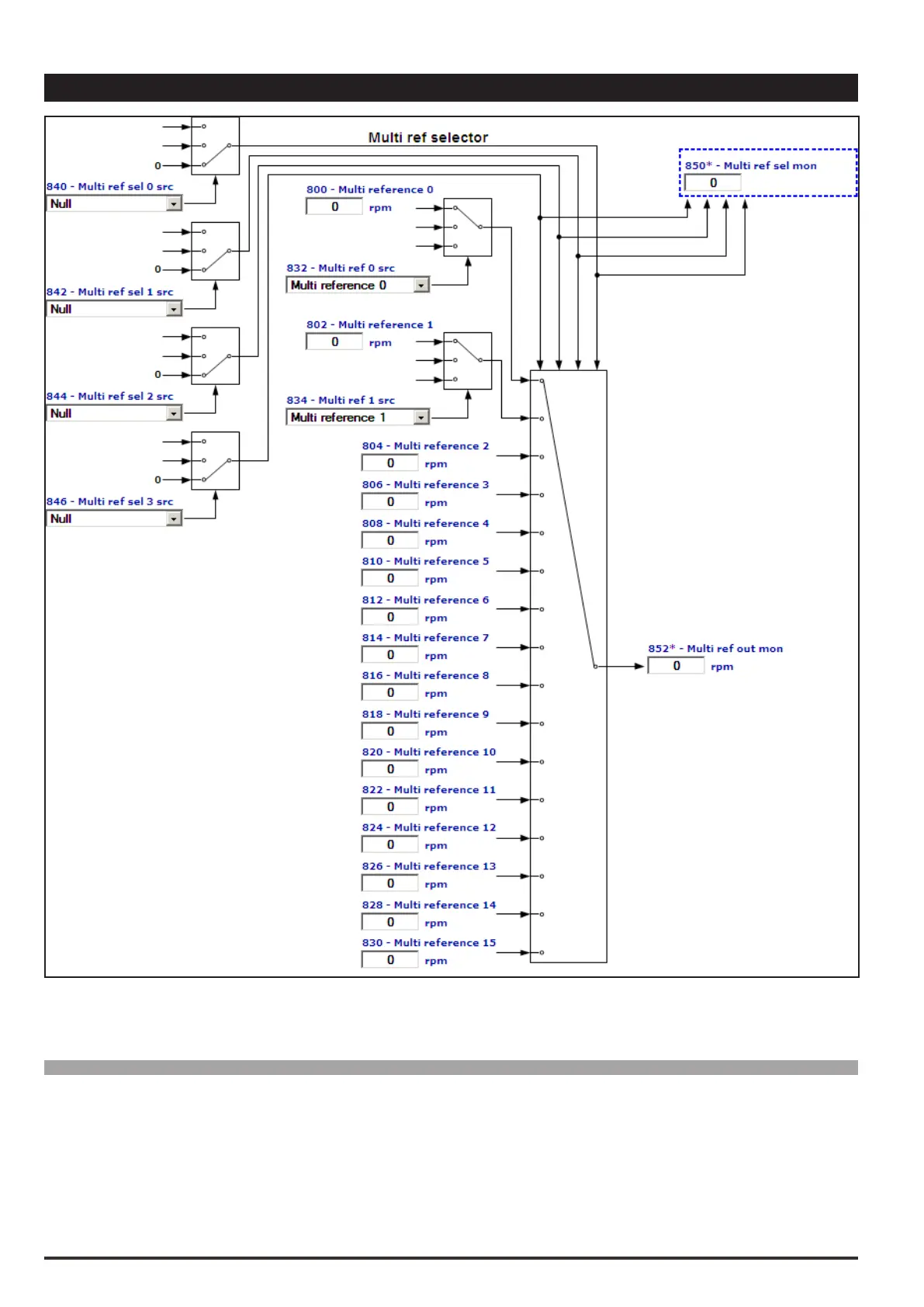

7 – MULTI REFERENCE
With the “Multispeed” function (Multi references) it is possible to recall up to sixteen internally saved speed refer-
ences to be recalled using a digital signal or via digital inputs on the terminal strip.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
7.1 800 Multi reference 0 FF INT16 16/32 0 CALCI CALCI RW FVS
7.2 802 Multi reference 1 FF INT16 16/32 0 CALCI CALCI RW FVS
7.3 804 Multi reference 2 FF INT16 0 CALCI CALCI RW FVS
7.4 806 Multi reference 3 FF INT16 0 CALCI CALCI RW FVS
7.5 808 Multi reference 4 FF INT16 0 CALCI CALCI RW FVS
7.6 810 Multi reference 5 FF INT16 0 CALCI CALCI RW FVS
