gefran ADV200 User Manual

138 ADV200 • Functions description and parameters list
22.12 – FUNCTIONS/PADS

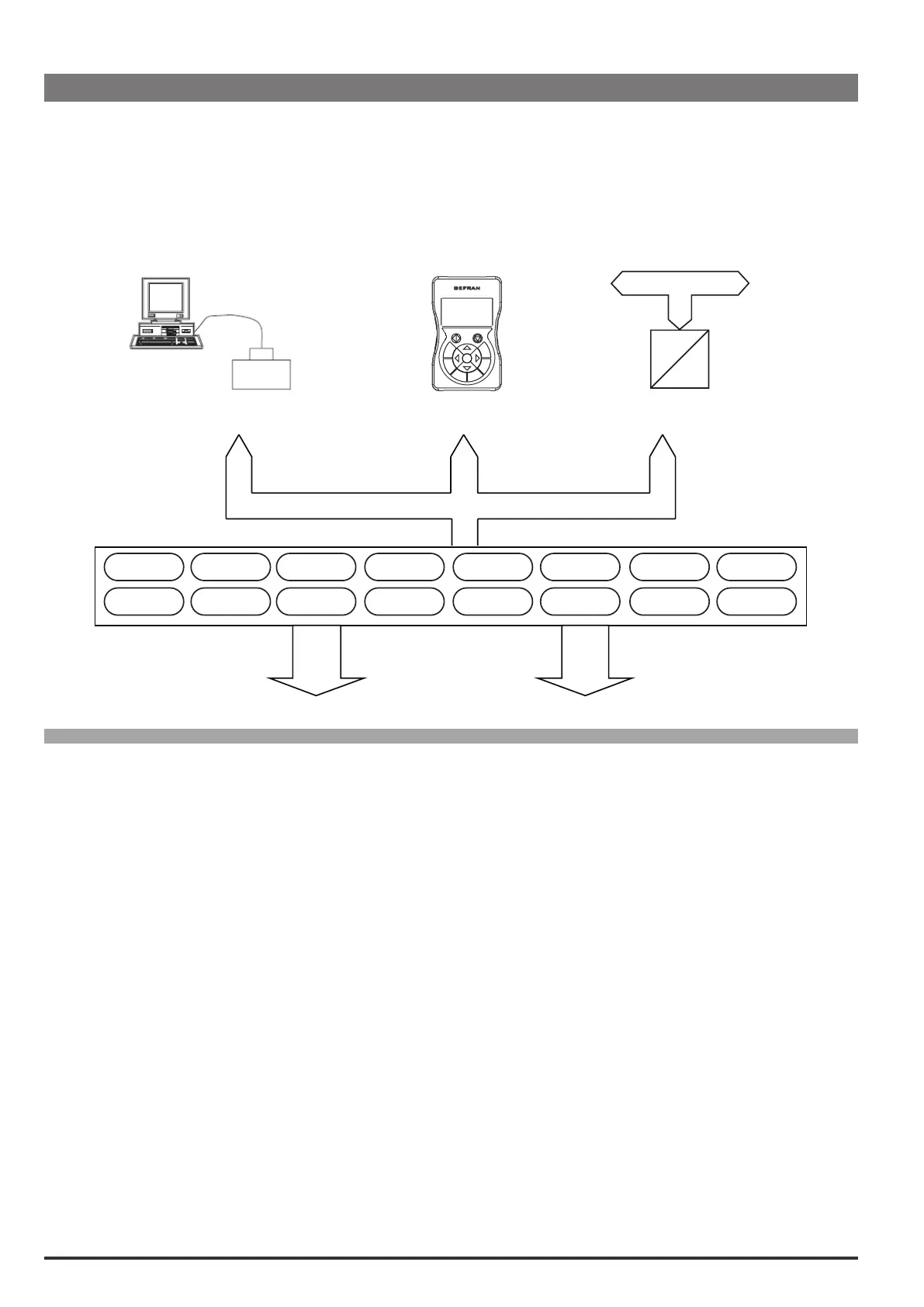

The general variables are used to exchange data between the various components of a Bus system. They are similar
to the variables of a PLC. The basic structure of the system is illustrated below. Pads can be used, for example, to
send information from a eldbus to an optional card. All Pads can be read and written.
The Pads can also be used to exchange data with an MDPlc application installed in the drive. See the MDPlc manual
for more details.
PAD 1
0
PAD 2
0
PAD 3
0
PAD 4
0
PAD 5
0
PAD 6
0
PAD 7
0
PAD 8
0
PAD 9
0
PAD 10
0
PAD 11
0
PAD 12
0
PAD 13
0
PAD 14
0
PAD 15
0
PAD 16
0
ANAL OG
OUTPUTS
DIGI TA L
OUTP UT S
Options (Bus Interface ...)
PROFIBUS DP, etc.
KeypadRS 485
DISPESC
FWD
REV
CUST
RST
LOC
REM
E
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.12.1 3700 Pad 1 INT32 32 0 0 0 ERW FVS
22.12.2 3702 Pad 2 INT32 32 0 0 0 ERW FVS
22.12.3 3704 Pad 3 INT32 32 0 0 0 ERW FVS
22.12.4 3706 Pad 4 INT32 32 0 0 0 ERW FVS
22.12.5 3708 Pad 5 INT32 32 0 0 0 ERW FVS
22.12.6 3710 Pad 6 INT32 32 0 0 0 ERW FVS
22.12.7 3712 Pad 7 INT32 32 0 0 0 ERW FVS
22.12.8 3714 Pad 8 INT32 32 0 0 0 ERW FVS
22.12.9 3716 Pad 9 INT32 32 0 0 0 ERW FVS
22.12.10 3718 Pad 10 INT32 32 0 0 0 ERW FVS
22.12.11 3720 Pad 11 INT32 32 0 0 0 ERW FVS
22.12.12 3722 Pad 12 INT32 32 0 0 0 ERW FVS
22.12.13 3724 Pad 13 INT32 32 0 0 0 ERW FVS
22.12.14 3726 Pad 14 INT32 32 0 0 0 ERW FVS
22.12.15 3728 Pad 15 INT32 32 0 0 0 ERW FVS
22.12.16 3730 Pad 16 INT32 32 0 0 0 ERW FVS
Setting of general, 32 Bit variables. PAD parameters can be used as supporting parameters to send values
written by the eldbus, serial line, etc. to analog or digital outputs.
