ADV200 • Functions description and parameters list 167
Setting of the digital input decoded by the “Word decomp” block.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
23.6.2 4452 Word decomp src LINK 16 4450 0 16384 ERW FVS
Selection of the origin (source) of the word to be decoded by the “Word decomp” block. Each bit that is part of
the word to be decoded is associated with the output channel of the “Word decomp” block. The variables that
can be used for this function can be selected from among those listed in the “L_WDECOMP” selection list.

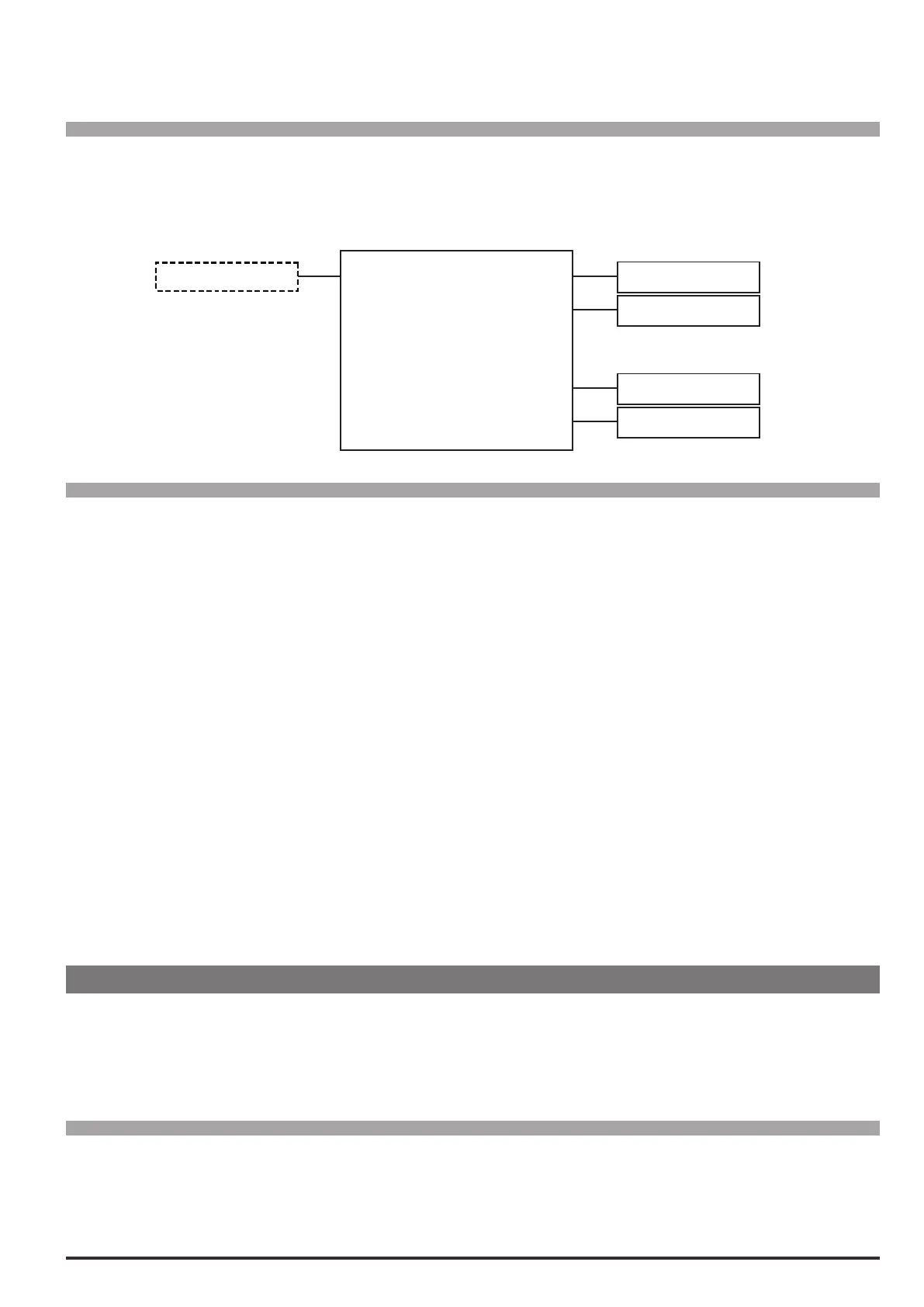

Word decomp src
Bit0 decomp mon
WORD_0
BIT_0
BIT_1
BIT_14
BIT_15
BIT_1
......... ................
Bit10 decomp mon
Bit14 decomp mon
Bit15 decomp mon
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
23.6.3 4454 Bit0 decomp mon BIT 16 0 0 1 ER FVS
23.6.4 4456 Bit1 decomp mon BIT 16 0 0 1 ER FVS
23.6.5 4458 Bit2 decomp mon BIT 16 0 0 1 ER FVS
23.6.6 4460 Bit3 decomp mon BIT 16 0 0 1 ER FVS
23.6.7 4462 Bit4 decomp mon BIT 16 0 0 1 ER FVS
23.6.8 4464 Bit5 decomp mon BIT 16 0 0 1 ER FVS
23.6.9 4466 Bit6 decomp mon BIT 16 0 0 1 ER FVS
23.6.10 4468 Bit7 decomp mon BIT 16 0 0 1 ER FVS
23.6.11 4470 Bit8 decomp mon BIT 16 0 0 1 ER FVS
23.6.12 4472 Bit9 decomp mon BIT 16 0 0 1 ER FVS
23.6.13 4474 Bit10 decomp mon BIT 16 0 0 1 ER FVS
23.6.14 4476 Bit11 decomp mon BIT 16 0 0 1 ER FVS
23.6.15 4478 Bit12 decomp mon BIT 16 0 0 1 ER FVS
23.6.16 4480 Bit13 decomp mon BIT 16 0 0 1 ER FVS
23.6.17 4482 Bit14 decomp mon BIT 16 0 0 1 ER FVS
23.6.18 4484 Bit15 decomp mon BIT 16 0 0 1 ER FVS
The single bits that make up the selected word are displayed.
23.7 - COMMUNICATION/EXTERNAL IO
The optional EXP-FL-XCAN-ADV card (generally inserted in slot 1) allows the number of I/Os managed by the
drive to be increased, using an external device. Communication with the external device is performed via CAN
using the “DS401 Device prole for generic IO modules”.
For more details see manual 1S5F32_EXP-FL-XCAN-ADV.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
23.7.1 5480 External IO enable ENUM Disable 0 1 ERW FVS
This parameter is used to enable or disable communication between the EXP-FL-XCAN-ADV card and the
external device.
0 Disable
