ADV200 • Functions description and parameters list 143

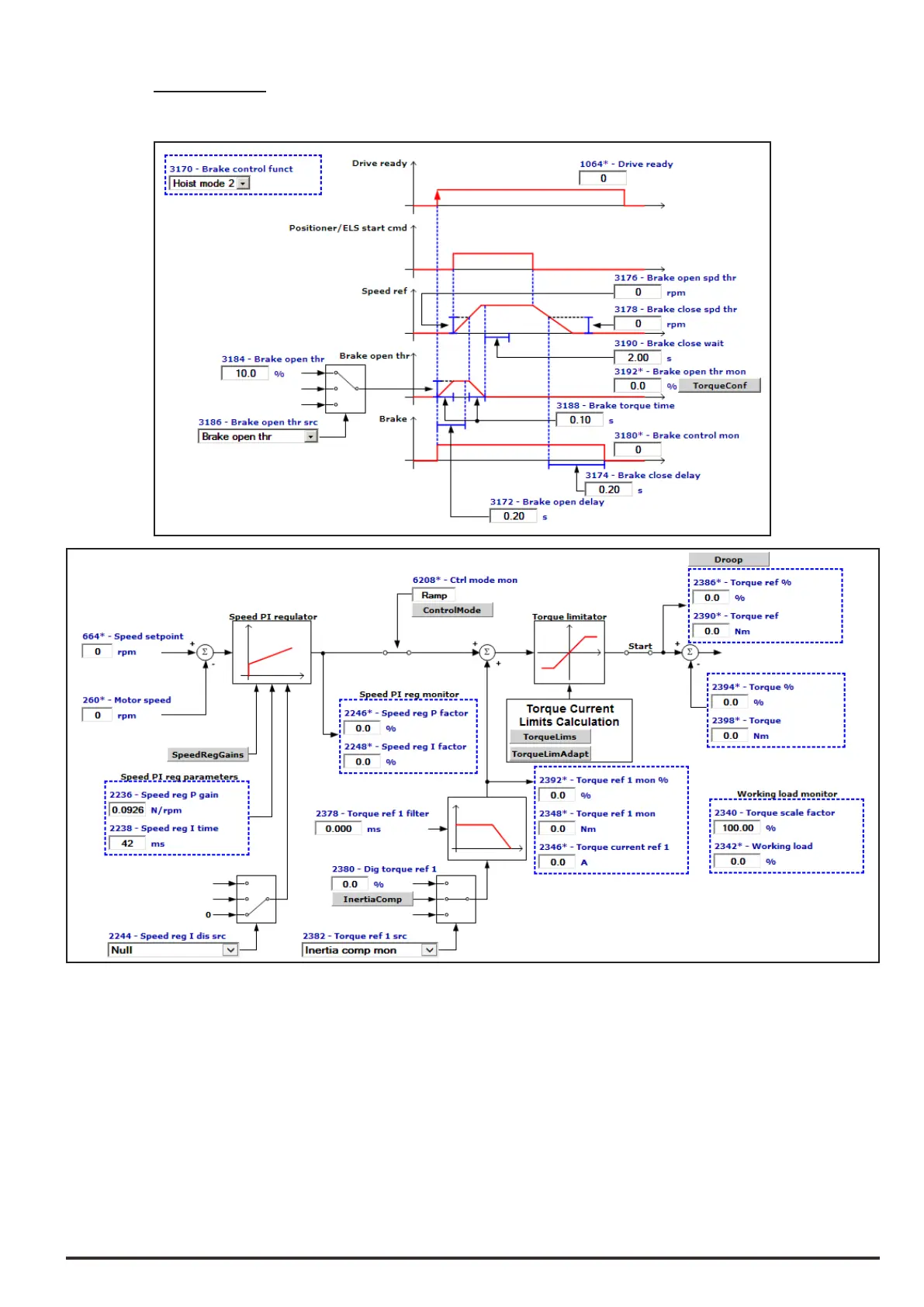

“Hoist mode 2”:
This mode can only be used when the “Positioner” application is installed in the drive.
Opening phase:
Setting of parameters 3172, 3176, 3184, 3186, 3188 and 2382.
Parameter 2382 Torque ref 1 src (menu 20 - TORQUE CONFIG) must be set to PAR 3192 Brake open thr
mon.
Parameter 3182 Brake open thr sel is not considered, in that regardless of its value, the values considered
are always to be taken as “torque” and not “current” (since the positioner can only be used in Flux vector CL
mode).
When the “Drive ready” (enable drive) signal switches from 0->1 the open brake command is sent immedi-
ately. At the same time, parameter 3192 Brake open thr mon, added to the TORQUE CONFIG block, starts
to increase in value from 0 up to the threshold value dened on the output of the selector associated with the
pair of parameters 3184/3186. This value increases over a ramping up time settable in parameter 3188 Brake
torque time. Parameter 3188 must be set to a value close to the brake open delay (i.e. the time it takes for the
brake to be opened after the open command is sent). This ramp can be monitored via parameter 2392 Torque
