64 ADV200 • Functions description and parameters list
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.3 1504 Analog inp 1 scale FLOAT 1.0 -10.0 10.0 RW FVS
14.19 1554 Analog inp 2 scale FLOAT 1.0 -10.0 10.0 RW FVS

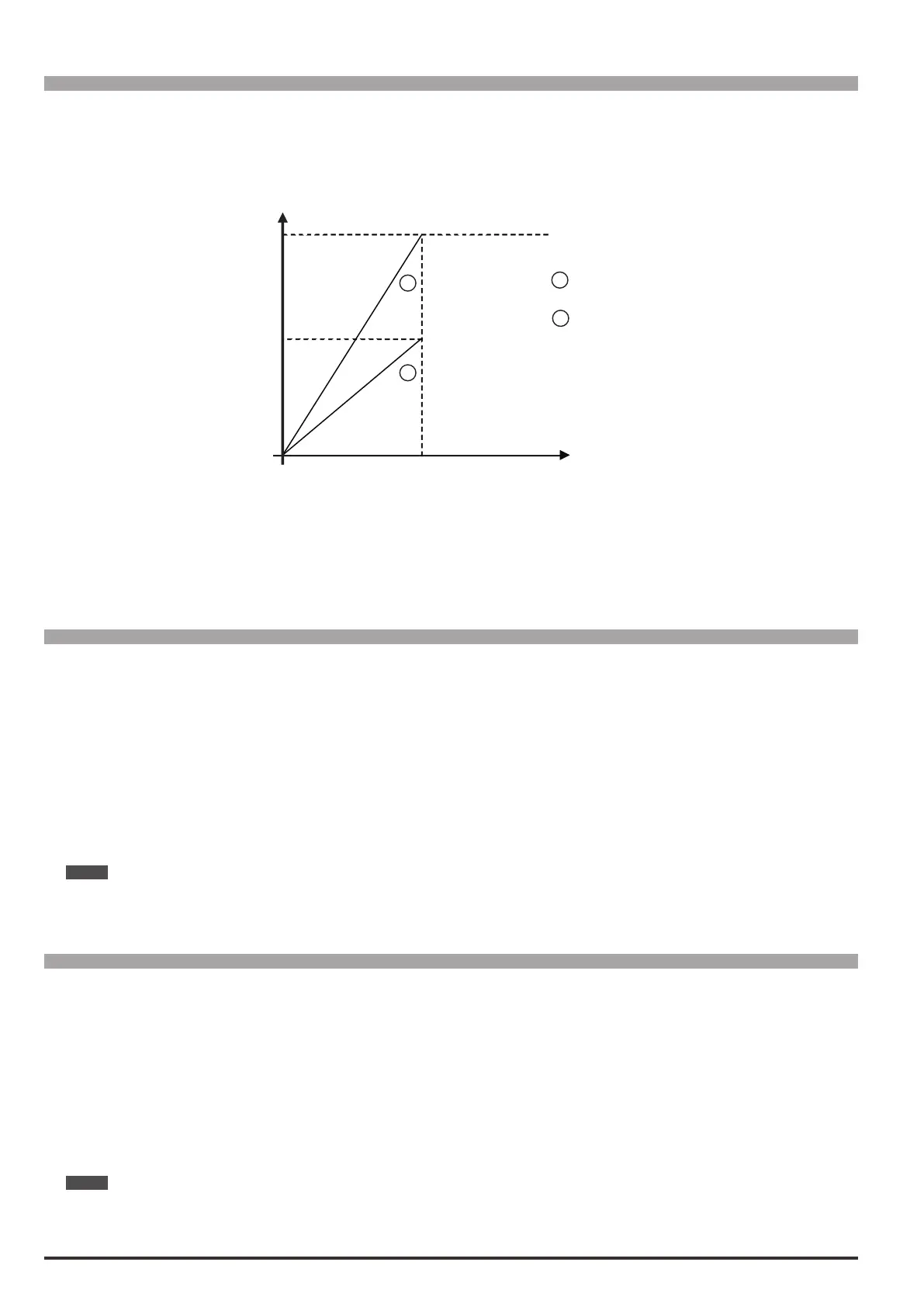

Setting of a multiplier factor to apply to the relative analog input.
1
2
1
2
Analog inpxscale = 1,0
Analog inpxscale = 2,0
0
100%
50%
Speed
Example:
The speed reference of a drive is assigned with a max external voltage of 5V. With this value the drive must
reach the maximum speed allowed (set using Full scale speed).
As the Analog inp x scale parameter a scale factor of 2 is entered (10V : 5V)
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.4 1506 An inp 1 offset tune BIT 0 0 1 RW FVS
14.20 1556 An inp 2 offset tune BIT 0 0 1 RW FVS
Self-tuning command for the relative analog input offset. Automatic ne tuning of the input. To perform self-
tuning, set the input signal to its minimum value and execute the command. The conditions containing an offset
can be compensated. When this command is sent, An inp x offset tune is automatically selected so that the
available input signal corresponds to the zero value of the variable. Offset tuning can also be performed with
the drive enabled.
Automatic tuning can only be performed if the following condition is present:
- Input voltage less than 1V or input current less than 2 mA
Note ! The value that is obtained automatically can be changed manually if necessary, using Analog inp x offset.
If the voltage setting on the analog input is higher than 1V, the Value too low alarm is generated.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.5 1508 An inp 1 gain tune BIT 0 0 1 RW FVS
14.21 1558 An inp 2 gain tune BIT 0 0 1 RW FVS
Self-tuning command for the relative analog input gain. Automatic ne tuning of the input. When this command
is sent, Analog inp 1 gain x is automatically selected so that the available input signal corresponds to the
maximum value of the variable. Offset tuning can also be performed with the drive enabled.
Two conditions are necessary in order to perform automatic tuning:
- Input voltage greater than 1V or input current greater than 2 mA
- Positive polarity. The value that is found is automatically accepted for the other direction of rotation.
Note ! If necessary, the value obtained automatically can be changed manually via Analog inp x gain.
To perform self-tuning, set the input signal to its maximum value and execute the command. A multiplier factor
