ADV200 • Functions description and parameters list 65

is calculated to apply to the input signal value (not considering the Analog inp scale parameter) to reach the

full scale value.

If the voltage setting on the analog input is less than 1V, the Value too low alarm is generated.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.6 1510 Analog inp 1 filter ms FLOAT 10.0 1.0 1000.0 ERW FVS

14.22 1560 Analog inp 2 filter ms FLOAT 10.0 1.0 1000.0 ERW FVS

Filter on the measurement of the corresponding analog input. This parameter can be used to control the re-

sponse of the analog input and reduce any possible noise and interference.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.7 1512 Analog inp 1 top cnt INT16 16384 -32768 +32767 ERW FVS

14.23 1562 Analog inp 2 top cnt INT16 16384 -32768 + 32767 ERW FVS

Setting of the upper speed reference limit as a function of the voltage (or current) of the relative analog refer-

ence.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.8 1514 Analog inp 1 bottom cnt INT16 -16384 -32768 + 32767 ERW FVS

14.24 1564 Analog inp 2 bottom cnt INT16 -16384 -32768 + 32767 ERW FVS

Setting of the lower speed reference limit as a function of the voltage (or current) of the relative analog refer-

ence.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.9 1516 Analog inp 1 offset cnt INT16 0 -32768 + 32767 ERW FVS

14.25 1566 Analog inp 2 offset cnt INT16 0 -32768 + 32767 ERW FVS

Setting of a value to compensate the condition in which the analog signal contains an offset, or when the vari-

able assigned to the input already has a value even though no signal is connected.

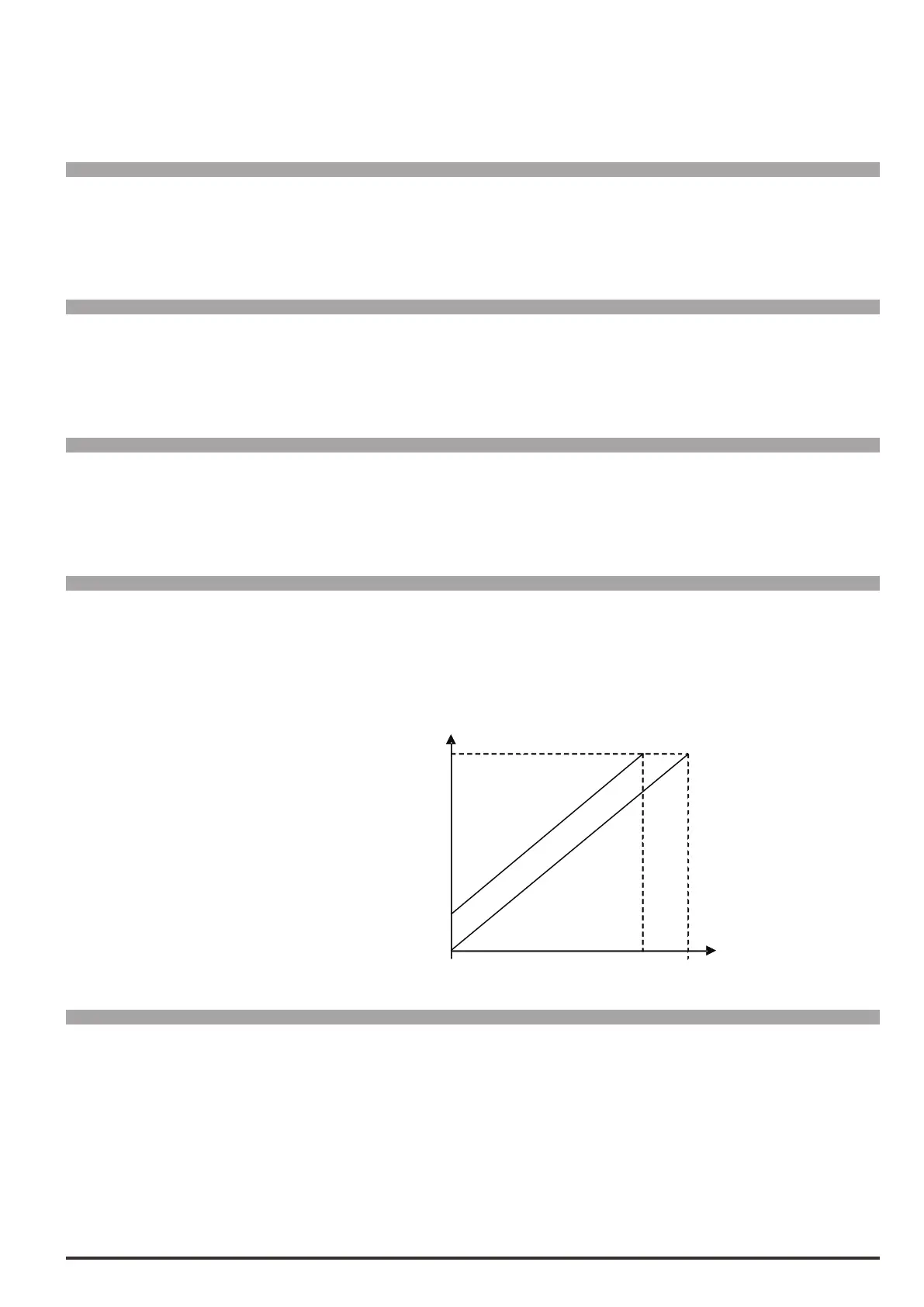

10V

100%

Analog inp xoffset

{

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.10 1518 Analog inp 1 gain FLOAT 1.0 -10.0 10.0 ERW FVS

14.26 1568 Analog inp 2 gain FLOAT 1.0 -10.0 10.0 ERW FVS

This parameter contains the value of the multiplier factor to apply to the analog reference calculated using the

Analog inp gain tune function.

Example:

An external analog reference only reaches a maximum of 9.8V instead of 10V. 1.020 (10V : 9.8V) is entered as

the Analog inp x gain parameter.

The same result can be achieved using the An inp x gain tune function. This parameter can be selected from

the keypad menu. The maximum analog value available (in this case 9.8V) must be present on the terminal,
