66 ADV200 • Functions description and parameters list
with positive polarity. Press the Enter key on the keypad to start analog reference self-tuning.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.11 1520 Analog inp 1 thr INT16 0 -16384 + 16383 ERW FVS
14.27 1570 Analog inp 2 thr INT16 0 -16384 + 16383 ERW FVS

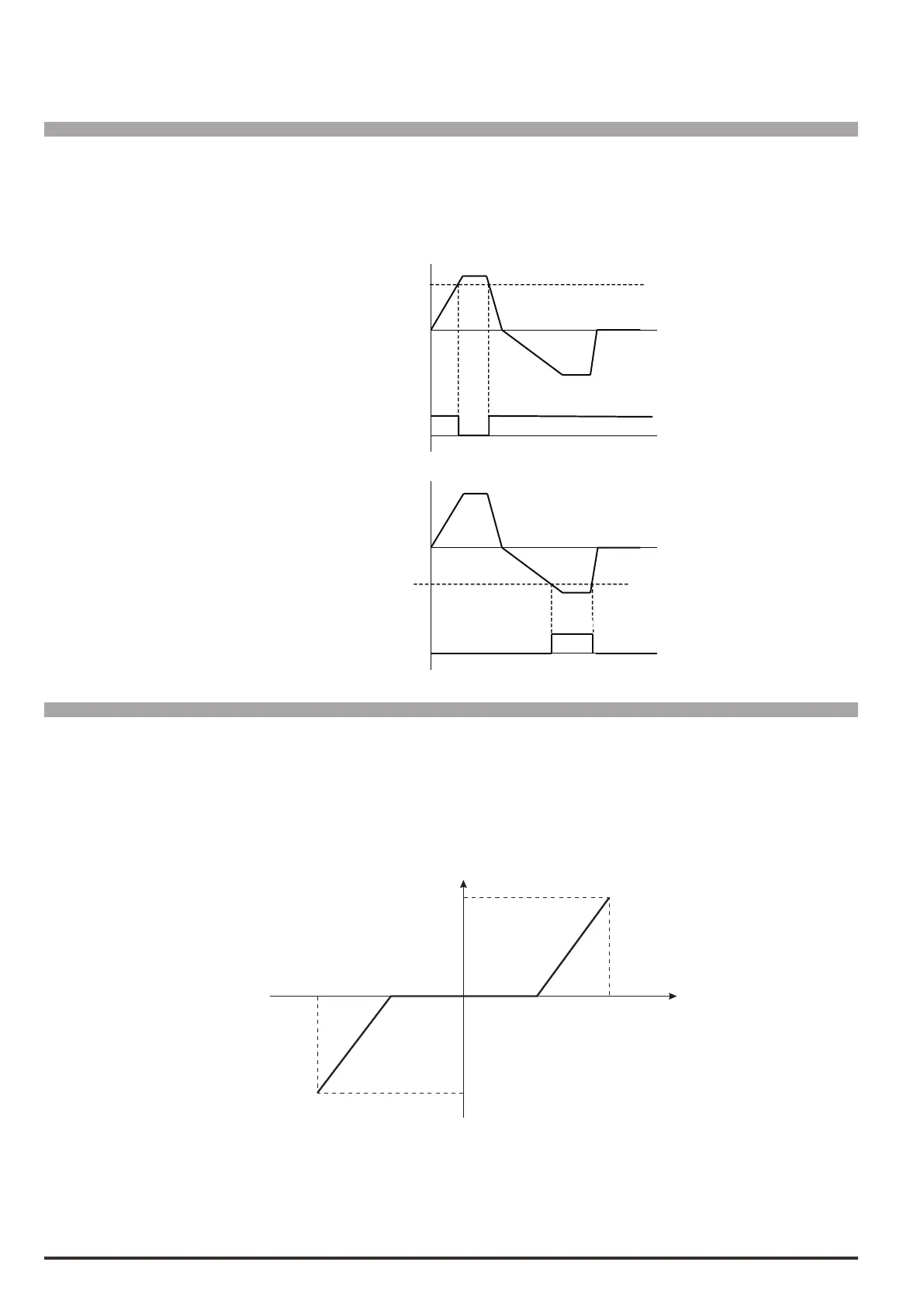

Setting of the analog input threshold for the speed not exceeded signal, which allows enabling of the digital
outputs Analog inp1 (par. 1530) and Analog inp2 (par.1580).
Analog inpxthr
x=1,2
Analog inpx<thr
Analog inpxthr
Analog inpx<thr
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.12 1522 An inp 1 deadband perc FLOAT 0 0 100.0 ERW FVS
14.28 1572 An inp 2 deadband perc FLOAT 0 0 100.0 ERW FVS
Deadband referring to the analog input signal. When the value on the input terminal is below the threshold de-
ned by the parameter, the output signal of the analog input block is forced to zero. Outside the deadband, the
block output varies linearly from zero to 100%.
AnInp T
100%
-100%
10V
-10V
100%
-100%
Par.1522=50%
Par.1522=50%
