ADV200 • Functions description and parameters list 67
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.13 1524 An inp 1 alt value cnt INT16 16/32 0 -16384 16384 ERW FVS
14.29 1574 An inp 2 alt value cnt INT16 16/32 0 -16384 16384 ERW FVS
Setting of a xed alternative value for the relative analog input, which can be selected via a command enabled
by a digital input programmed with the An inp alt sel src parameter.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.14 1526 An inp 1 sign src LINK 16 6000 0 16384 ERW FVS
14.30 1576 An inp 2 sign src LINK 16 6000 0 16384 ERW FVS
Selection of the origin (source) of the signal to be assigned to the relative digital input for selecting the direction
of rotation of the motor. The functions that can be associated with the digital outputs are listed in the “L_DIG-
SEL2” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.15 1528 An inp 1 alt sel src LINK 16 6000 0 16384 ERW FVS
14.31 1578 An inp 2 alt sel src LINK 16 6000 0 16384 ERW FVS
Selection of the origin (source) of the signal to be assigned to the relative digital input for selecting the alterna-
tive analog reference. The functions that can be associated with the digital outputs are listed in the “L_DIG-
SEL2” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.16 1532 Analog inp 1 dest ILINK 0 0 0 ER FVS
14.32 1582 Analog inp 2 dest ILINK 0 0 0 ER FVS
The function for which the relative analog input has been programmed and on which it acts is displayed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

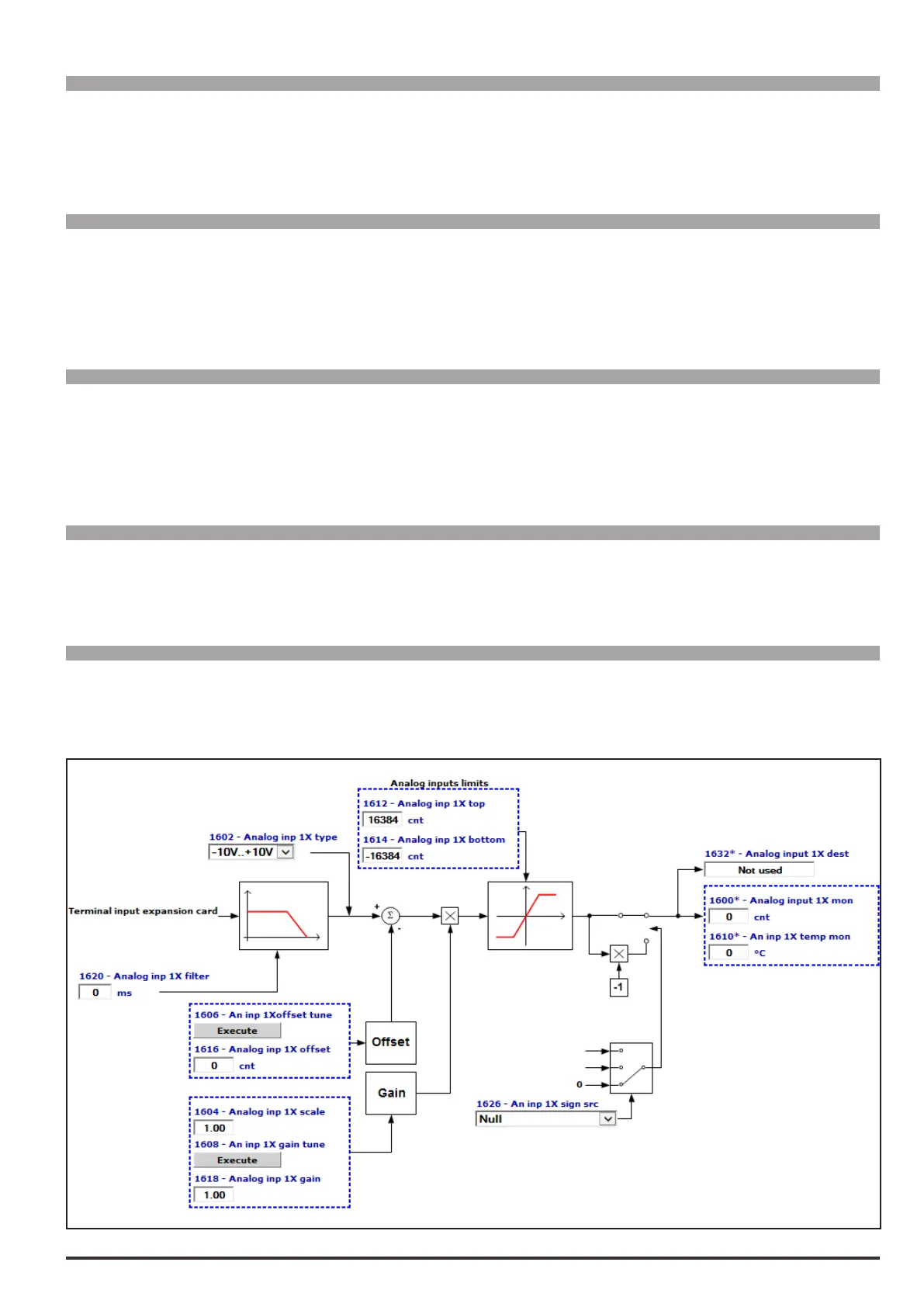

14.33 1600 Analog input 1X mon cnt INT16 16/32 0 -16384 16384 R FVS
14.45 1650 Analog input 2X mon cnt INT16 16/32 0 -16384 16384 R FVS
The value of the voltage output of the function block of the relative analog input is displayed.
