ADV200 • Functions description and parameters list 75
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.7 1824 An out 1 absolute ENUM Disable 0 1 ERW FVS
15.8 1826 An out 2 absolute ENUM Disable 0 1 ERW FVS
Enables the relative analog output as an absolute value. If this parameter is set to 1 the voltage on the analog
output assumes the value of 0 - 10V regardless of the sign of the command signal.
0 Disable
1 Enable
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.9 1832 Analog out 1 min cnt INT16 -16384 -32768 +32767 ERW FVS
15.10 1834 Analog out 1 max cnt INT16 16384 -32768 +32767 ERW FVS
Setting of the minimum and maximum values for the analog output for the voltage present on analog output 1
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.11 1840 Analog out 2 min cnt INT16 -16384 -32768 +32767 ERW FVS
15.12 1842 Analog out 2 max cnt INT16 16384 -32768 +32767 ERW FVS
Setting of the minimum and maximum values for the analog output for the voltage present on analog output 2
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.13 1848 Analog out 2 type ENUM -10V..+10V 0 2 ERW FVS
Selection of the type of output (in voltage or current). Depending on the output signal, move the S3 switch on
the regulation card. The standard output is coded for the signal in voltage.
0 0...20mA
1 4..20mA
2 -10V..+10V
If set to 0 the analog output sends 0...20mA
If set to 1 the analog output sends 4...20mA
If set to 2 the analog output sends -10..+10V
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

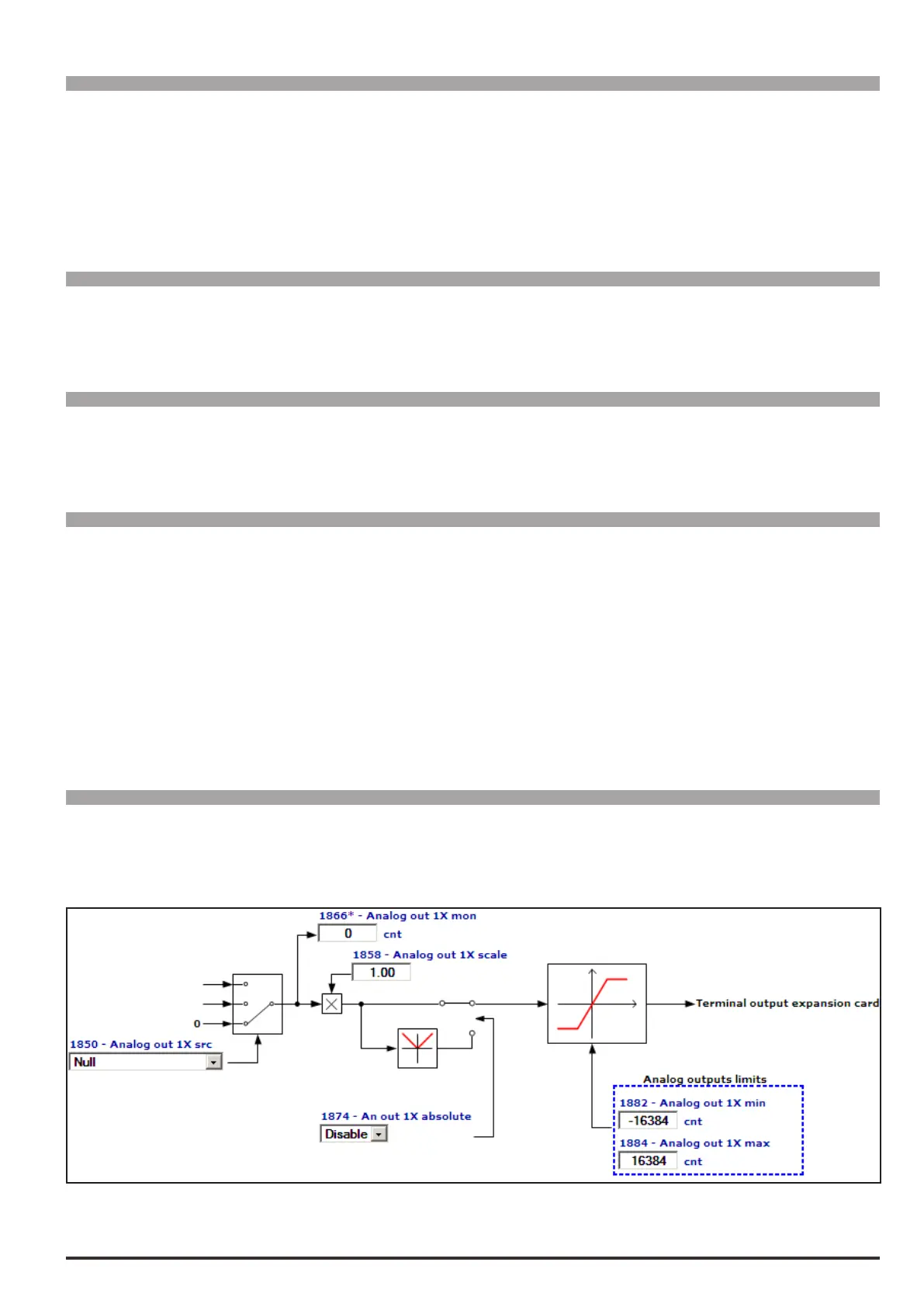

15.14 1850 Analog out 1X src LINK 16/32 6000 0 16384 RW FVS
15.15 1852 Analog out 2X src LINK 16/32 6000 0 16384 RW FVS
Selection of the origin (source) of the signals that can be placed as variables on the analog outputs of the expan-
sion card. The functions that can be assigned to the analog outputs are listed in the “L_ANOUT” selection list.
