76 ADV200 • Functions description and parameters list
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.16 1858 Analog out 1X scale FLOAT 1.0 -20.0 20.0 RW FVS
15.17 1860 Analog out 2X scale FLOAT 1.0 -20.0 20.0 RW FVS

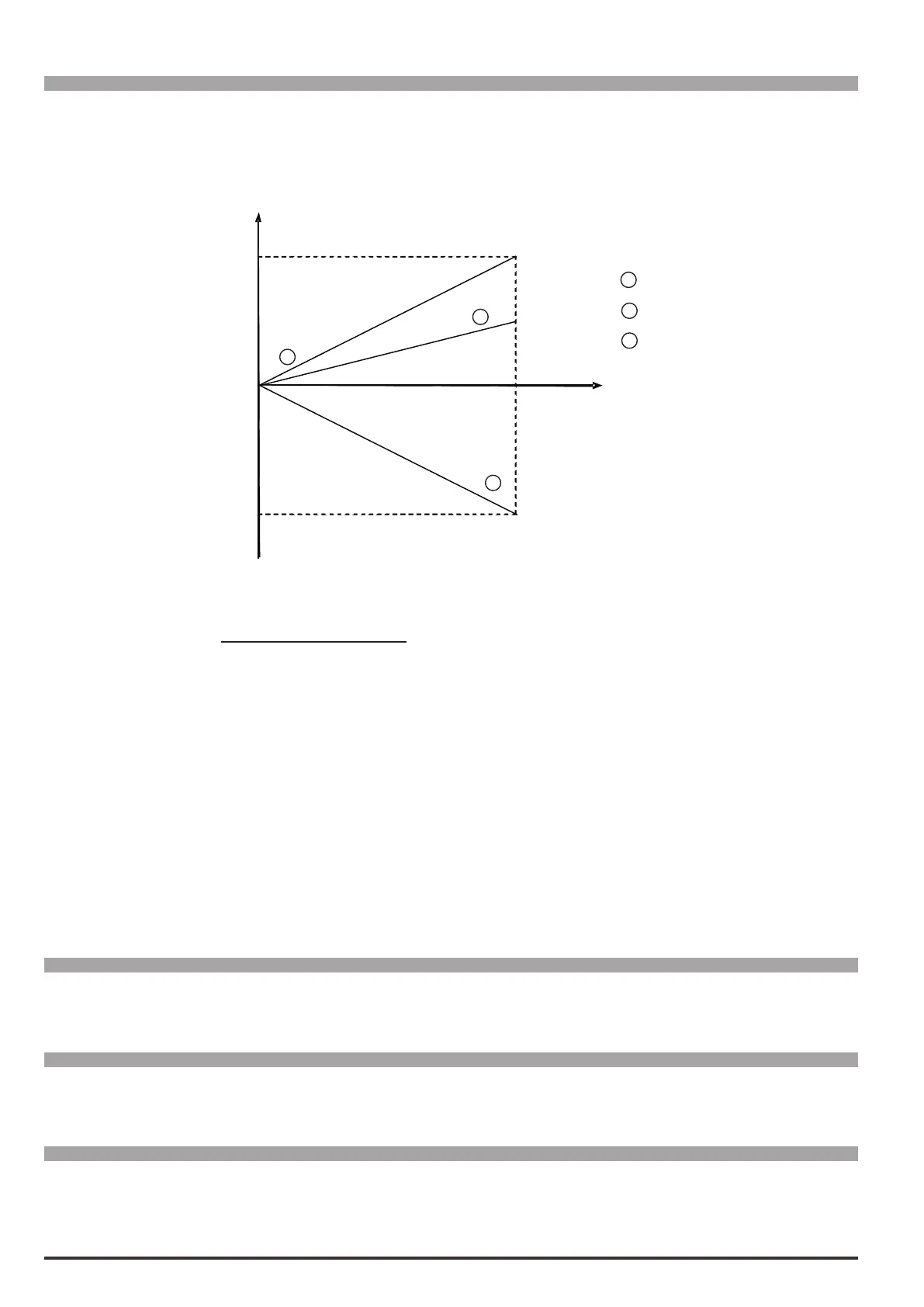

Parameter for setting a multiplier factor of the signal of the relative analog output of the expansion card. It can
be used to amplify or reduce the input value of the relative analog output block.
1
2
3
+10V
-10V
0V
Internal V
1
2
3
Par.
1858 (1860)=1
Par. 1858 (1860) =
Par. 1858 (1860)=-1
Stp Var x par. 1858 (1860)
Vout = 10 x ( )
FS Var
where:
Vout output voltage on the card terminals.
Stp Var actual value of the variable (variable unit)
SF Var full scale of the variable (variable unit)
Example of calculation of the Analog out Xx scale factor
To display the drive speed, use an analog instrument with eld of measurement from 0 ... 2V. This means that,
to display the speed of the drive, a voltage of 2V on the analog output of the drive must correspond to the maxi-
mum speed. With a scale factor of 1 this would be 10V (Scale factor = 2V / 10 V = 0.200).
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.18 1866 Analog out 1X mon cnt INT16 0 0 0 ER FVS
The actual value of the voltage present on analog output 1 of the expansion card is displayed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.19 1868 Analog out 2X mon cnt INT16 0 0 0 ER FVS
The actual value of the voltage or current present on analog output 2 of the expansion card is displayed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.20 1874 An out 1X absolute ENUM Disable 0 1 ERW FVS
15.21 1876 An out 2X absolute ENUM Disable 0 1 ERW FVS
Enables the relative analog output as an absolute value. If this parameter is set to 1 the voltage on the analog
