gefran GRM-H 15 User Manual

819XX_MAN_GRM-H_11-2022_ENG_pag. 12
L1
N/L2
CONTROLLER
ANALOG OUPUT
0-20 / 4-20 mA
0-5 / 0-10 V
L1
N/L2
PE
+ -
POT
HB CALIB.
LOAD
FUSE
FUSE
GG
3/L2
2/T1
1/L1
A2
US
D13
A+
A-
A2
D17
AL
AL
GRM
AL
24V
SUPPLY
+
-
19
18
17
16
15
14
13
12
11
SLAVE
SSR*
FUSE : fast fuse, see fuse table
FUSE GG : see Fuse section
- FIRING MODE: ZC, BF, HSC, PA
- HB DIAGNOSTIC AVAILABLE:
TOTAL and PARTIAL LOAD failure
* INPUT/ OUTPUT
CONFIGURABLE FUNCTIONS
**WITH POTENTIOMETER INPUT
CONNECT A- TO A2
**
Notes
- To improve immunity to EMC disturbances, it is
recommended to connect the A2 pin of the power
supply to earth.
- With potentiometer input connect Always A- to A2
- See parameters dedicated at input and output
signal configuration (parameters io.13 and io.17 for
Master-Slave).

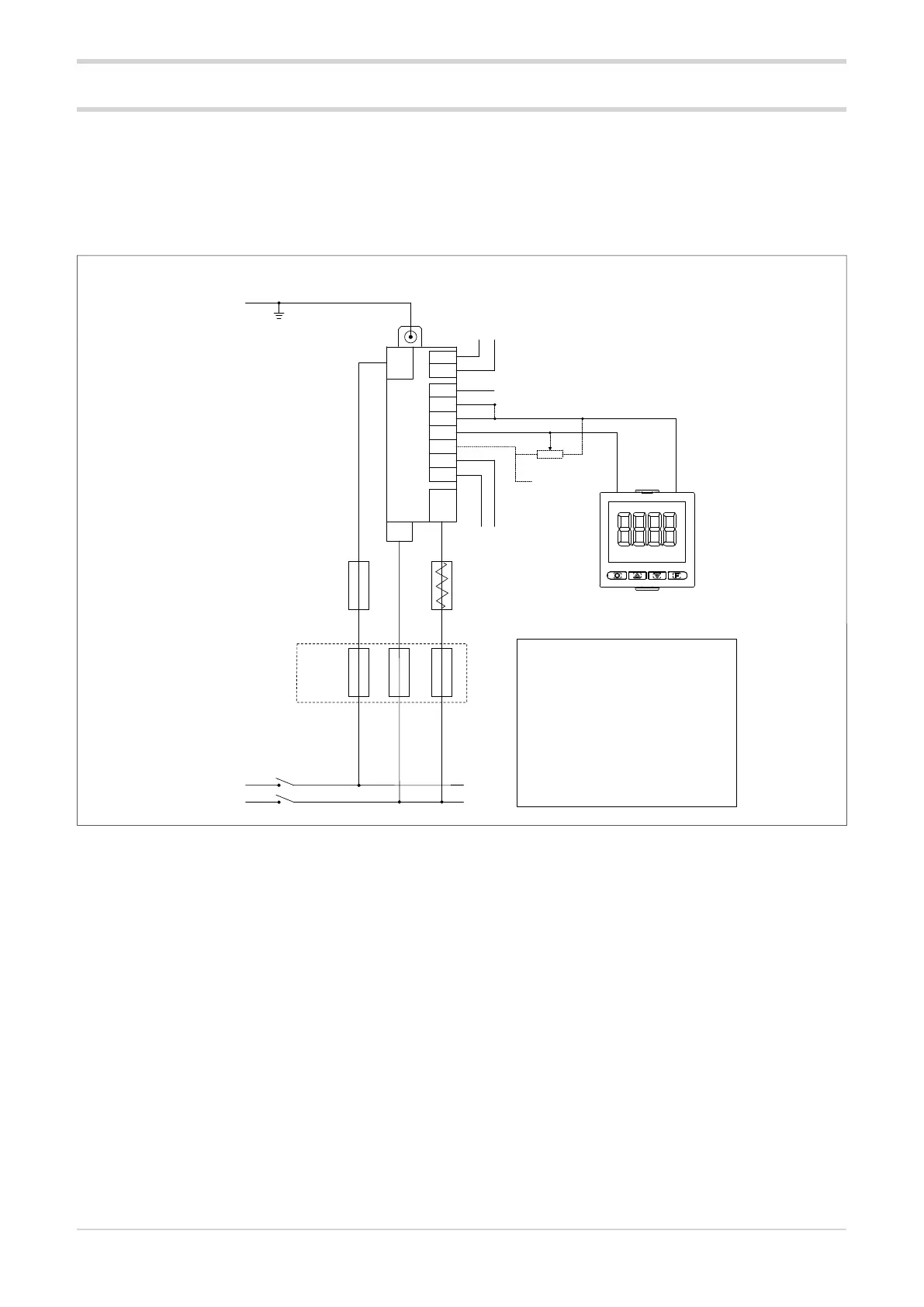

GRM WITH AN OPTION WITH MONOPHASE RESISTIVE LOAD
2.7. Load wiring
