2.7 General DescriPtion Gtf 25-120a

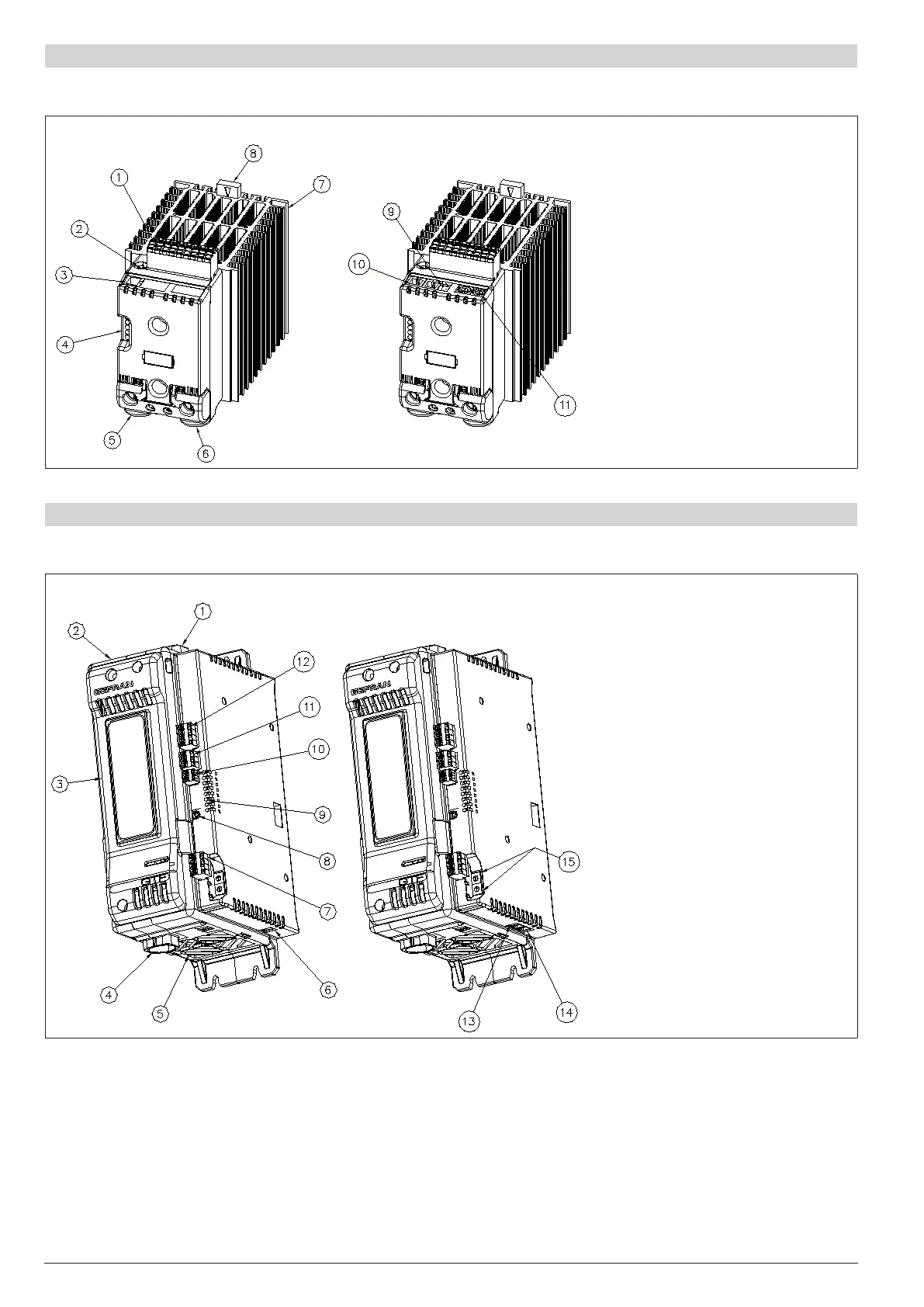

Figure 7
GTF Standard GTF con opzione RS485
1 Supply/control connnector
2 HB key calibration
3 TTL port for conguration
4 LED indicators
5 Power terminal “Line” (1/L1)
6 Power terminal “Load” (2/T1)
7 Heatsink
8 Attachment DIN bar
9 Switch serial line terminal
10 RS485 serial port connector
11 Address Rotary switch
2.8 General DescriPtion Gtf 150-250a
Figure 8
GTF 150-250A Standard GTF 150-250A with serial option
1 “Line” terminal (1/L1)
2 Line voltage connector
3 Internal fuse protection cover
4 “Load” terminal (2/T1)
5 Cooling fan
6 TTL port for conguration by PC
7 Control input connector
8 HB key calibration
9 LED indicators
10 Input connector
11 Supply connector
12 Output connector
13 Dip Switch serial line
14 RJ10 connector serial port RS485
15 Address rotary switch
