gefran GTF Series User Manual

15
80960G_MHW_GTF_05-2019_ENG

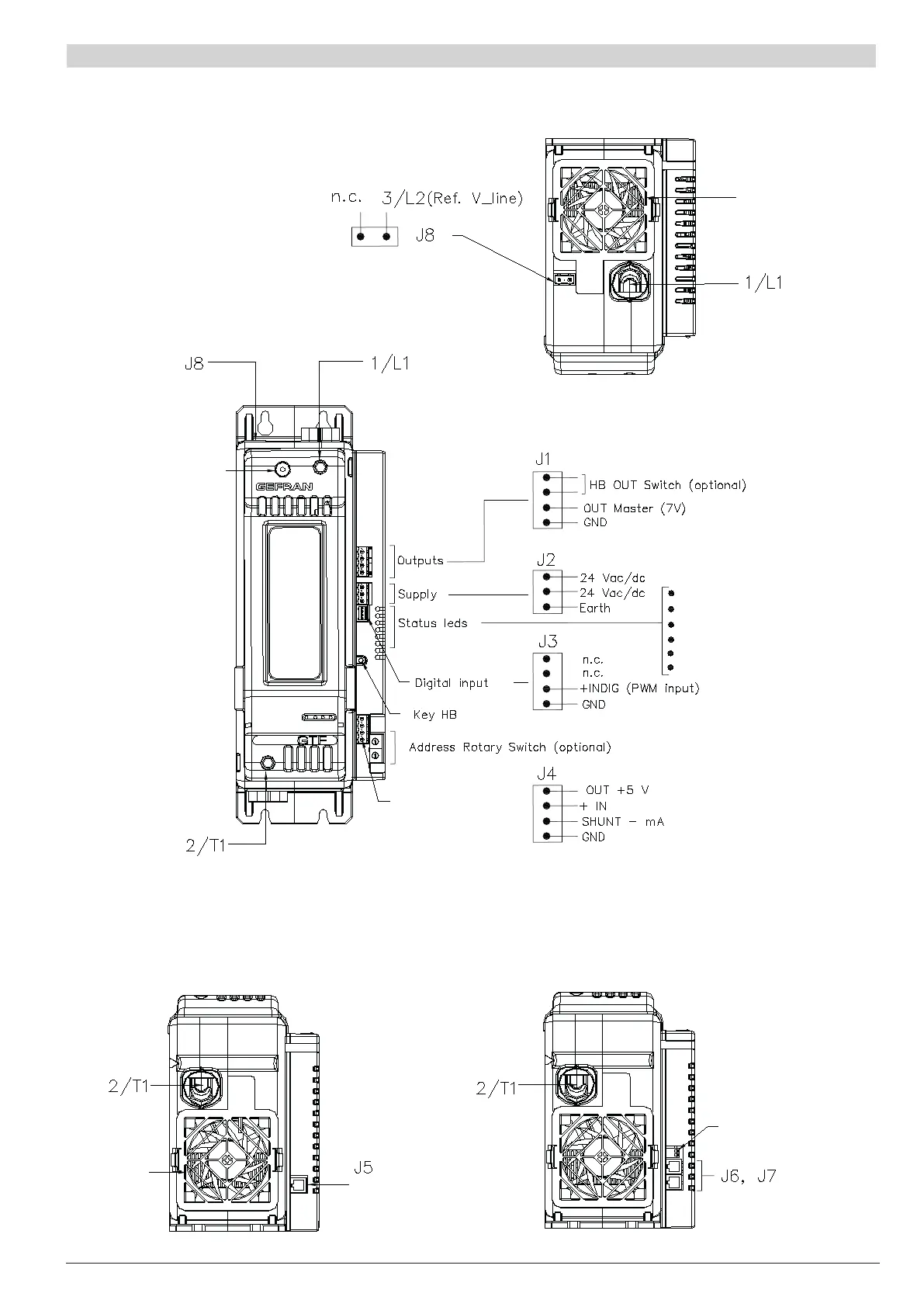

3.3 connections inPut/outPut Gtf 150-250a
Figure 12
Line voltage connector
“ line” connection
“ line” connection
Protection fan
Line voltage connector
Screw front cover
(fuse inspection)
RUN (Green)
STATUS (Yellow)
ALARM HB (Red)
STATE DIGITAL INPUT(Yellow)
ON THYRISTOR (Green)
OVER Temperature (Red)
(Potentiometer)
“ load” connection
Control analog
input connector
“ load”
connection
Protection fan
“ load”
connection
Configuration TTL port
RJ10 connector
serial RS485 Modbus
Dip Switch
serial line
Low view
WithOUT option RS485 serial line
Low view
With option RS485 serial line
