3.9 connection examPle: Power section

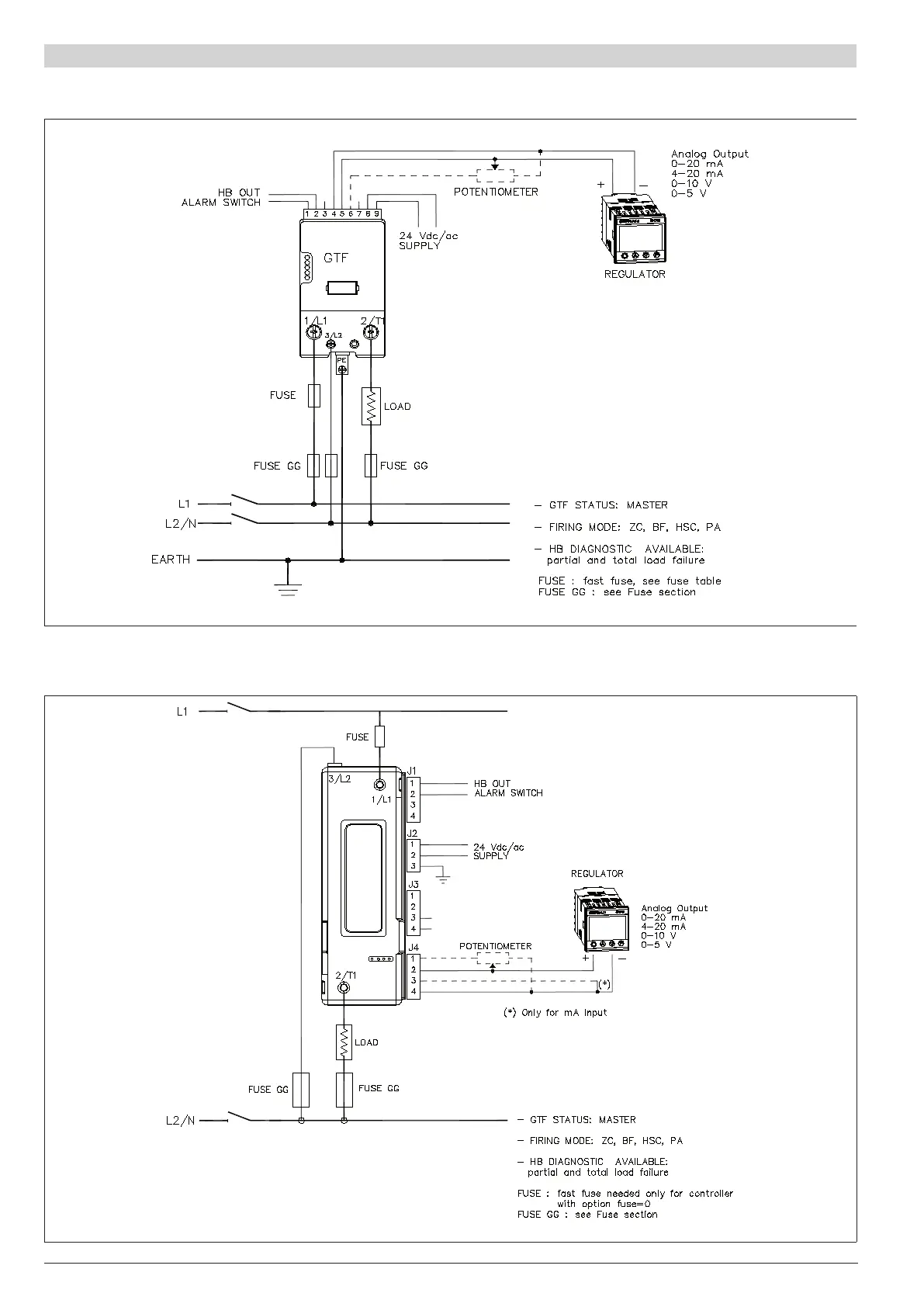

Connection example GTF 25-120A for 1 single-phase load, single-phase line (L1-N) or open delta (L1-L2)
Figure 24
Connection example GTF 150A -250A 1 single-phase load, single-phase line L1-L2/N
Figure 25
