2.5 installation

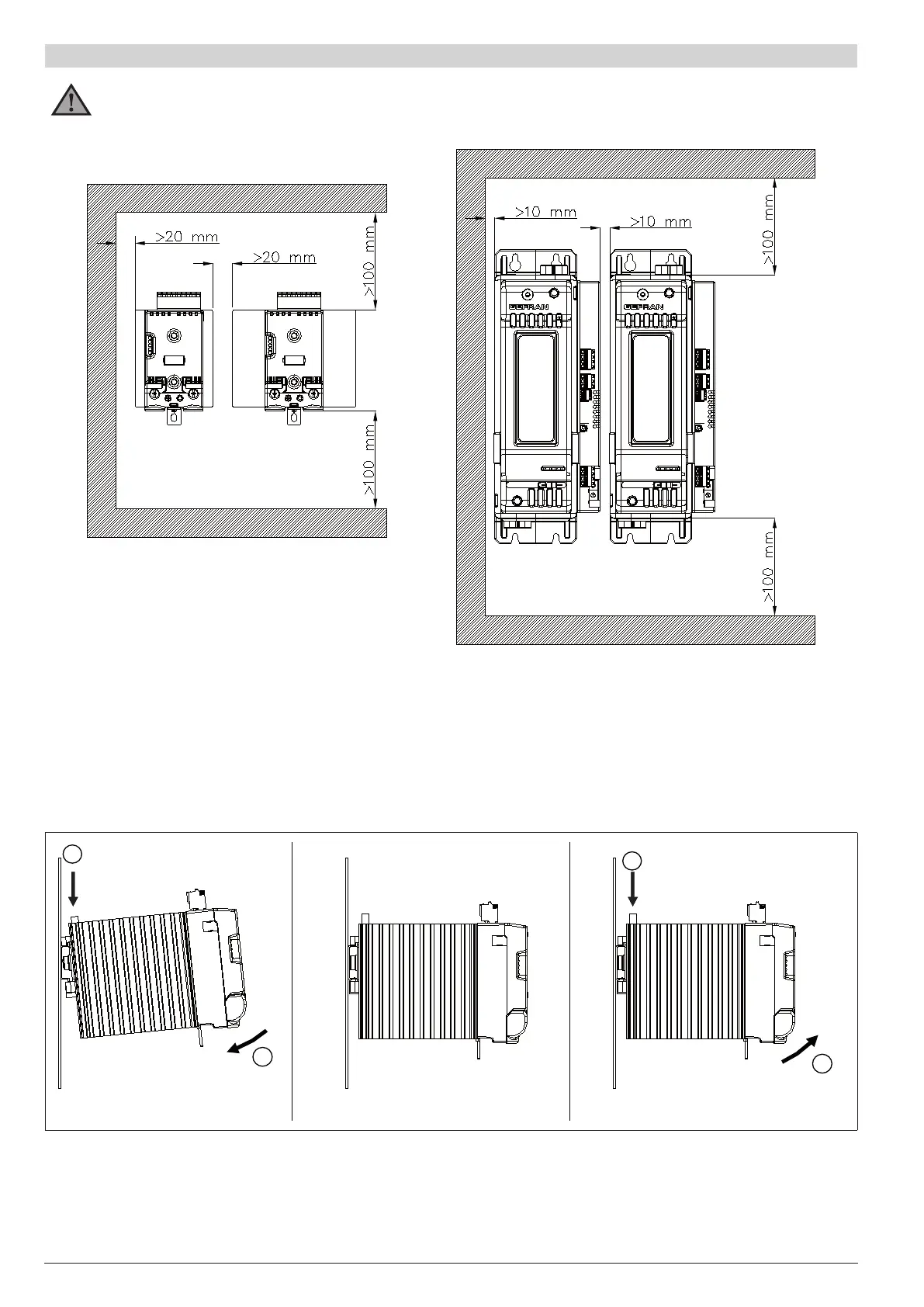

Attention: respect the minimum distances shown in figure 3 to provide adequate air circulation.
Figure 3
For correct attachment/release of the module on the DIN guide, do as follows:
- keep the attach/release cursor pressed
- insert/remove the module
- release the cursor
Figure 4 Figure 5 Figure 6
PHASE ATTACHMENT
GTF
locked properly to DIN bar
PHASE RELEASE
1
2
1
2
TURN
TURN
PRESSPRESS
