To conduct inductive loads controlled in PA mode, do not use delay triggering; instead, use the phase Soft-Start ramp.

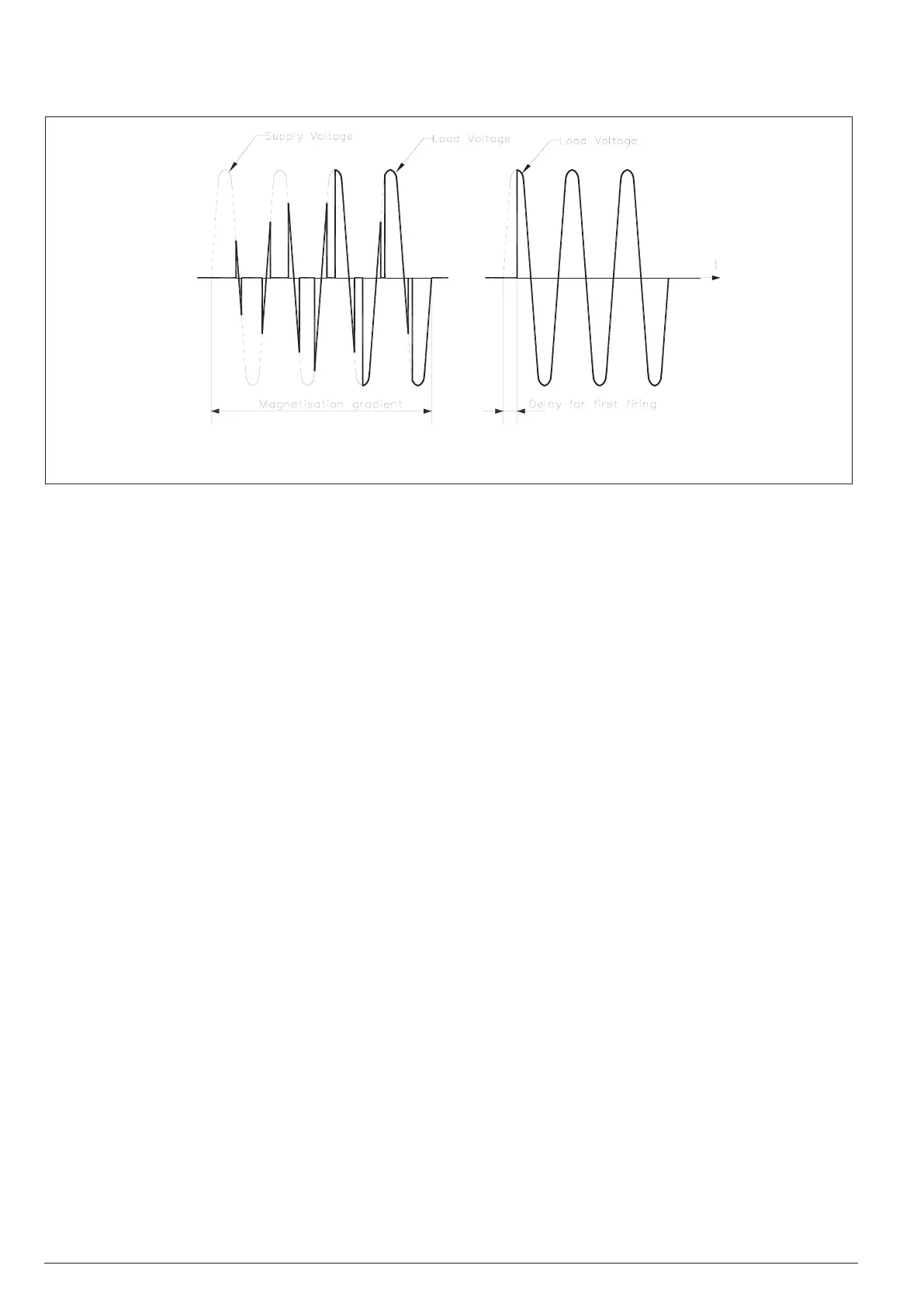

Figure 46
Example of phase ramp to fire
a transformer in PA mode
Example of firing with Delay-Triggering
of a transformer in ZC mode
Comparison of method to fire a transformer: Soft-Start Ramp (for PA mode) / Delay triggering (for ZC and BF mode)
