Gemu 554 - Valve Order Data and Configuration Codes

29 / 44
554

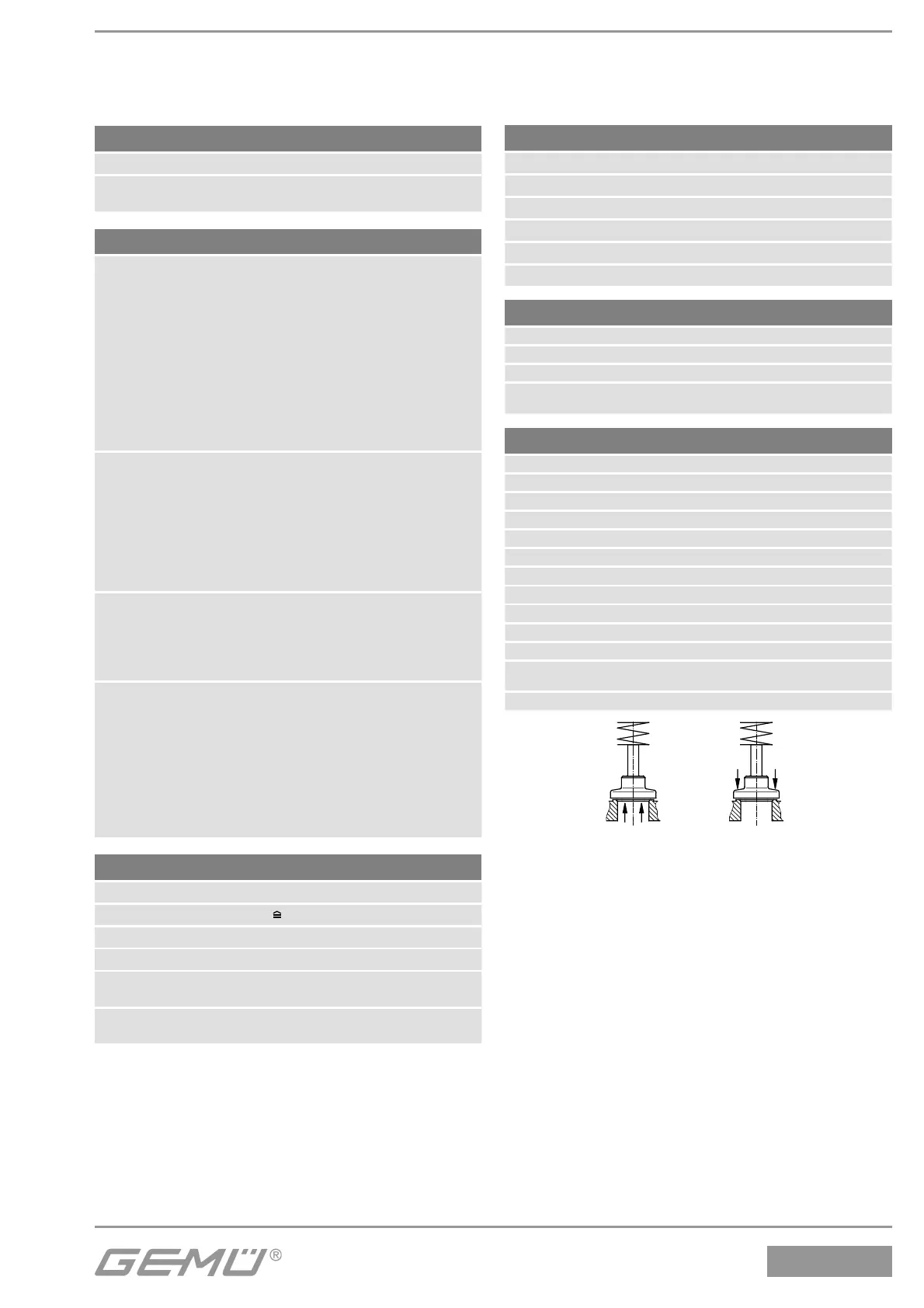

7 Order data
Flow
under the seat
Flow
over the seat
GEMÜ 554
Actuators
B, 0, 0K, 1, 1K,
2, 2K
GEMÜ 554
Actuators
3, 3L, 4, 4L
Control function Code
Normally closed (NC) 1
Normally open (NO) (not actuator B) 2
Double acting (DA) (not actuator B) 3
Double acting (normally open)
(only for control valves) (not actuator B) 8
Versions 0K, 1K, 2K, 3L and 4L are only valid for connection code 80 in combination with
valve body material C2 (only DN 15, 20, 25, 40, 50 and 65 / actuator B not available).
Actuator size Flow Code
Actuator B piston ø 30 mm under the seat B*
Actuator 0 piston ø 50 mm
under the seat 0*
Actuator 0K piston ø 50 mm
under the seat 0K*
Actuator 1 piston ø 70 mm
under the seat 1*
Actuator 1K piston ø 70 mm
under the seat 1K*
Actuator 2 piston ø 120 mm
under the seat 2*
Actuator 2K piston ø 120 mm
under the seat 2K*
Actuator 3 piston ø 50 mm
over the seat 3**
Actuator 3L piston ø 50 mm
over the seat 3L**
Actuator 4 piston ø 70 mm
over the seat 4**
Actuator 4L piston ø 70 mm
over the seat 4L**
* Preferred flow direction with incompressible liquid media to avoid
"water hammer"
** only control function NC
Body configuration Code
2/2-way body D
Angle body E
only in material code 37 (DN 15 - 50)
Valve body material Code
(Rg 5) CC499K, Cast bronze 9
1.4435 (ASTM A 351 CF3M
316L), Investment casting 34
1.4408, Investment casting 37
1.4435 (316 L), forged body 40
1.4435, Investment casting C2*
Material equivalency 316L
* A surface finish from the order code table “K number“ must
be specified for valve body material C2.
Seat seal Code
NBR (Actuator B) 2
PTFE 5
PTFE, glass fibre reinforced 5G
PTFE, USP Class VI 5P
PFA (Actuator B) 30
Other seat seals on request
Connection Code
Butt weld spigots
Spigots DIN 0
Spigots EN 10357 series B 16
Spigots EN 10357 series A
(formerly DIN 11850 series 2) / DIN 11866 series A 17
Spigots SMS 3008 37
Spigots ASME BPE 59
Spigots ISO 1127 / EN 10357 series C /
DIN 11866 series B 60
Spigots ANSI/ASME B36.19M Schedule 10s 63
Spigots ANSI/ASME B36.19M Schedule 40s 65
Threaded connections
Threaded sockets DIN ISO 228 1
Threaded socket Rc ISO 7-1,
EN 10226-1, JIS B 0203, BS 21,
end-to-end dimension ETE DIN 3202-4 series M8 3C
Threaded spigots DIN ISO 228 9
Threaded sockets NPT
length DIN 3202-4 series M8 3D
Flanges
Flanges EN 1092 / PN25 /form B,
length see body dimensions 13
Flanges ANSI Class 125/150 RF,
length see body dimensions 47
Clamp connections
Clamps ASME BPE for pipe ASME BPE,
length ASME BPE 80
Clamps DIN 32676 series B for pipe EN ISO 1127,
length EN 558, series 1 82
Clamps DIN 32676 series A for pipe DIN 11850,
length EN 558, series 1 86
Clamps ASME BPE for pipe ASME BPE,
length EN 558, series 1 88
