554

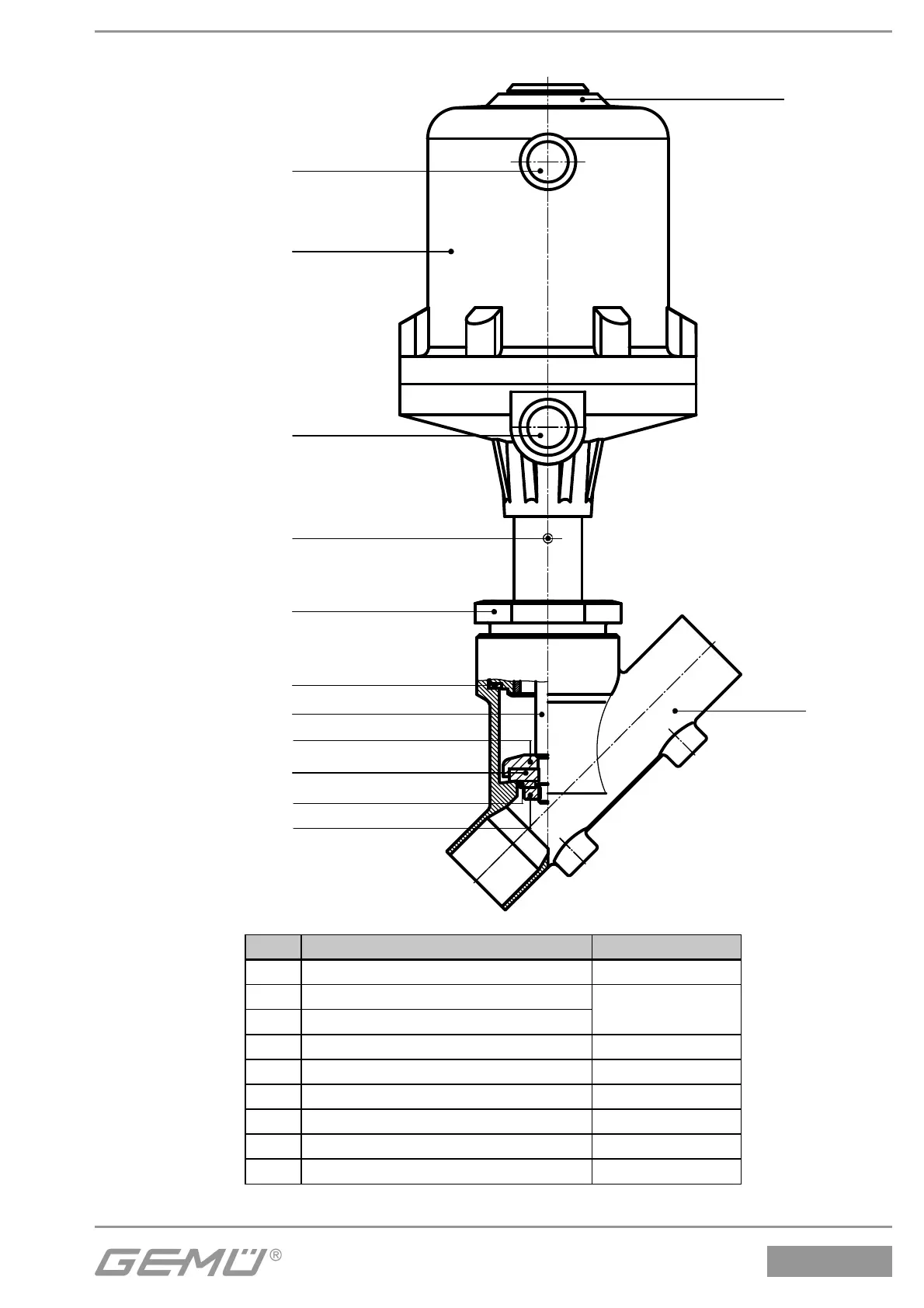

20 Sectional drawing and spare parts
a
4
b
c
1
14
d
A
Leak detection hole
e
Connector 4 /
vent hole for control
function NO
Connector 2 /
vent hole for control
function NC
Cap
Item Name Order description
1 Valve body K514...
4 Gasket
}
554...SVS...
14 Seat seal (not for actuator size B)
A Actuator 9554...
a Union nut -
b Spindle -
c Valve plug -
d Nut / retaining washer / regulating cone -
e Washer -
