Gemu 554 - Disassembly for Disposal (Control Function 2)

554
38 / 44

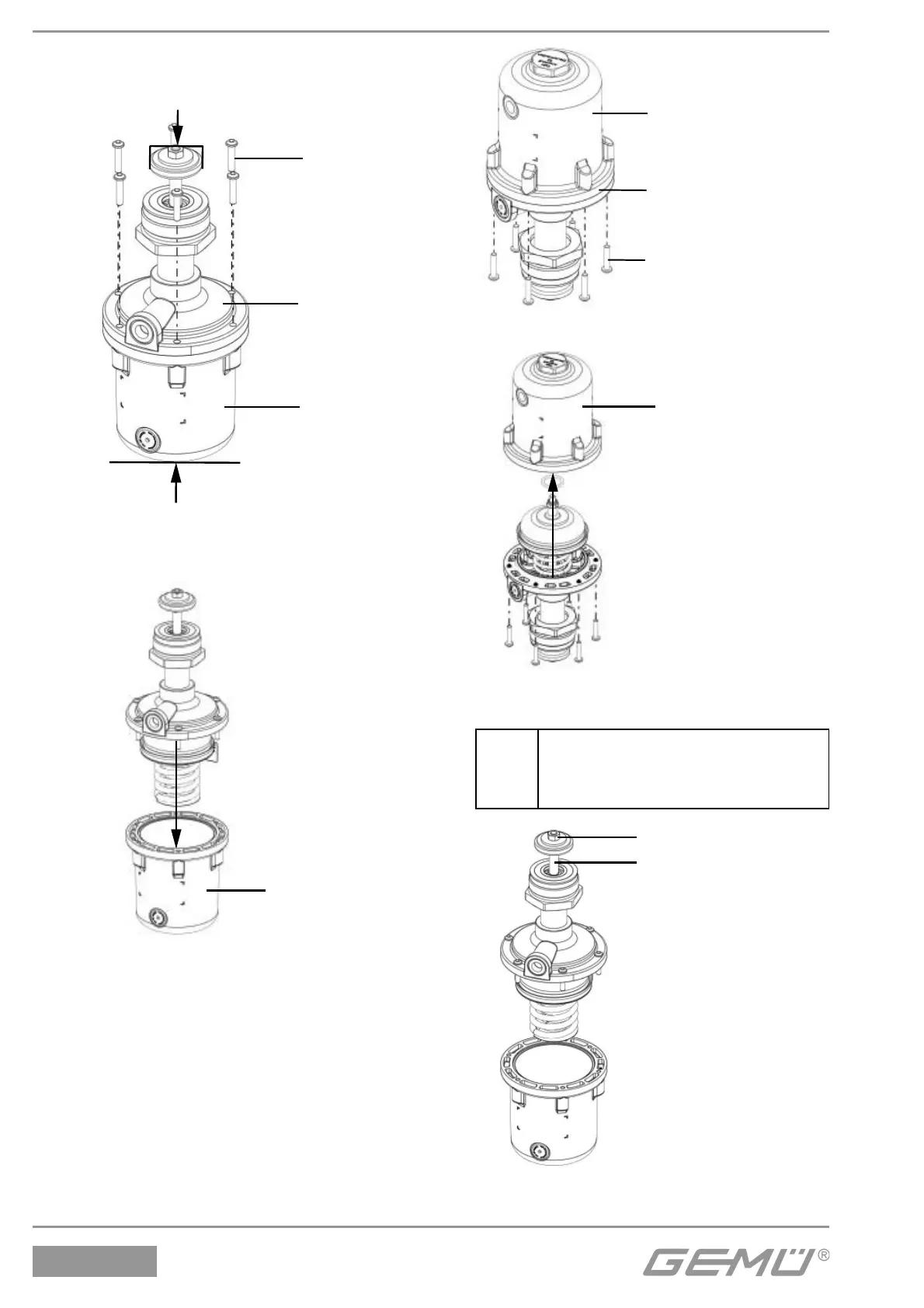

3. Undo and remove the connecting bolts 23
between the actuator top 10 and the
actuator base 25.
23
25
10
4. Slowly reduce pressing force.
5. Remove actuator top 10.
10
16.2 Disassembly for disposal for control
function 2
1. Remove the actuator A (see chapter 12.1
"Removing the actuator").
2. Undo and remove the connecting bolts 23
between the actuator top 10 and the
actuator base 25.
10
25
23
3. Remove actuator top 10.
10
4. Undo and remove the hexagon nut 11
from the spindle 2.

When undoing the hexagon
nut, fi x the spindle in place
using an appropriate tool.
11
2
