9320 Reference Controller Operating Manual 10 (52)
The possible signal flows in 9320 enable any audio input to be routed to any audio output. This enables
very versatile patching of signals for monitoring using 9320A, and fluent mixing of analogue and digital
audio pathways in demanding monitoring applications.
9320 supports seamless blending of loudspeaker-based monitoring with headphone-based monitoring,
and integration of personal HRTF processing using Genelec Aural ID technology. 9320 integrates
completely with Genelec GLM software for calibrating and managing Genelec SAM monitoring
loudspeakers. There is complete support for all professional analogue and digital audio monitoring
loudspeakers and headphones.
The maximum signal into the analogue line input can be set such that the total system dynamic range is
optimized. There are two selections, for maximum input levels of +12 dBu (HiGain) and +24 dBu
(LoGain). This feature is configured using the GLM software, as a part of all other 9320 configurations.
In the signal processing diagram the volume control is presented before the signal processing functions
for sake of clarity. In reality, to maximize the dynamic range of the audio signal, volume control happens
as the last signal processing function before the signal is output.

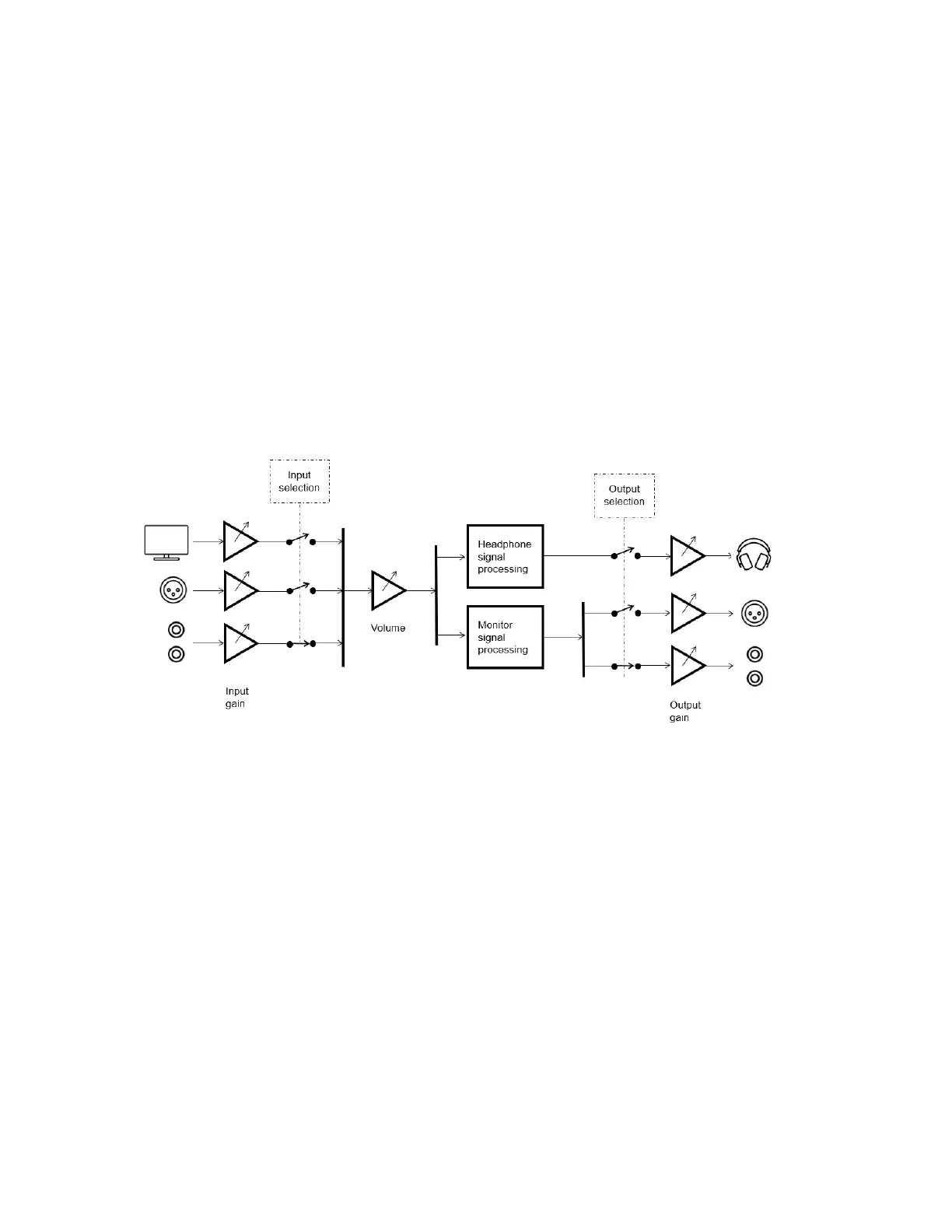

Fig. 1. Signal processing block diagram of 9320A.
4.2 Intended Ways of Using
9320 is intended to be used with the GLM software and Aural ID software but can be also used in the
Independent mode.
4.2.1 Loudspeaker-Based Monitoring
9320 Reference Controller is a physical user interface for the most important Genelec Loudspeaker
Manager (GLM™) functions, empowering management of Genelec Smart Monitoring System (SAM™)
from stereo to immersive and enabling easy management of alternative monitoring systems.
9320 offers direct connectivity to analogue and digital stereo or 2.1 monitoring of audio signals input
using the USB soundcard function, analogue line input or AES digital audio input. The outputs can be
level aligned for smooth switching across inputs and outputs. Genelec SAM monitoring systems can be
automatically calibrated using the GLM AutoCal™ calibration and the included measurement
microphone. This gives access also to the detailed GRADE acoustic analysis report on SAM monitoring
