9320 Reference Controller Operating Manual 20 (52)

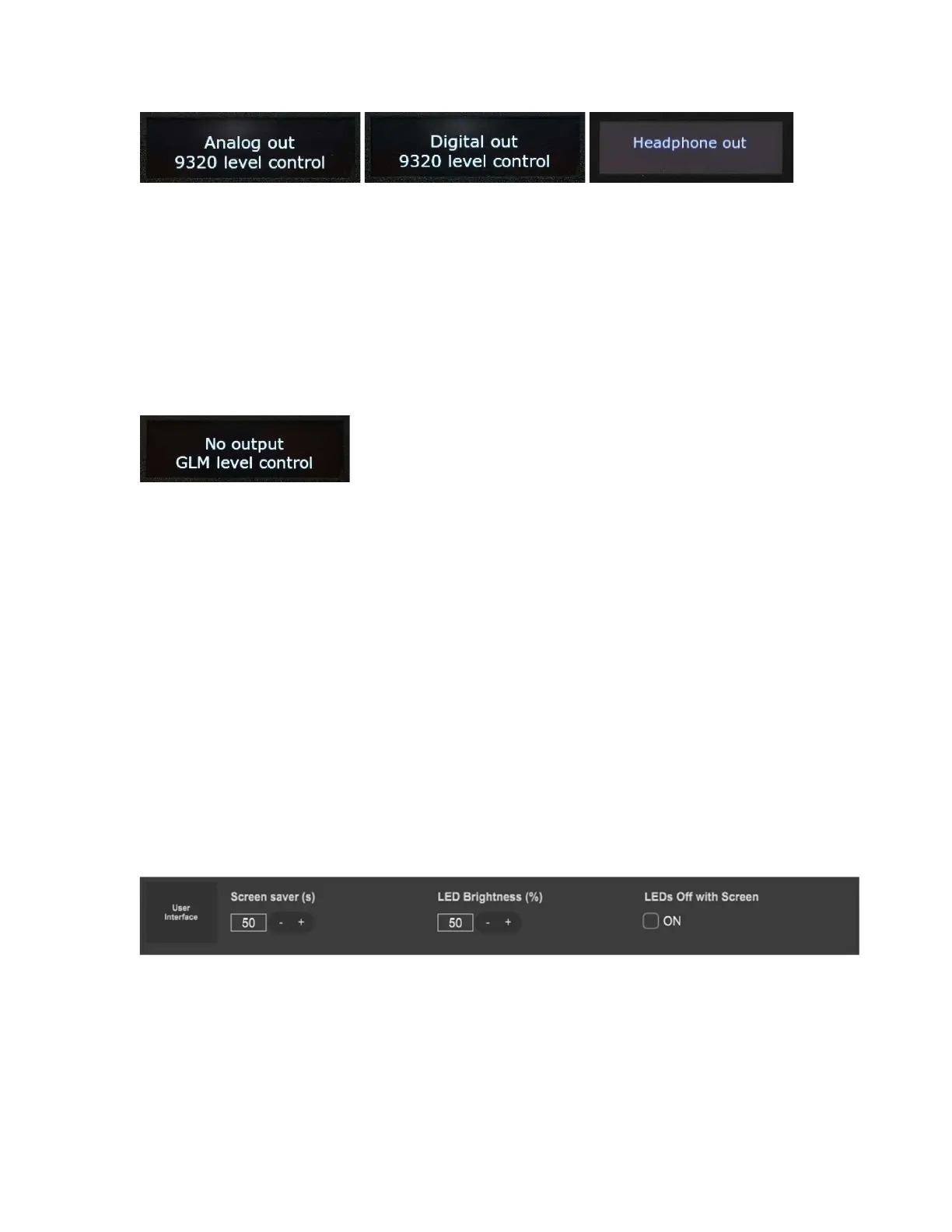

Fig. 15. The output level adjusted by 9320A
Pressing any output key longer than 3 sec turns all outputs in 9320 off. Then, the display shows the text
“No output” and the second line “GLM level control”. After a brief time, the display returns to the main
display, showing the current level setting but all the outputs in 9320 remain off. This mode can be useful
for example 9320 is adjusting level on a set of SAM monitors particularly when the GLM software is not
in ise, and the 9320 works in stand-alone mode. This mode is indicated with the second line of text in
display saying “GLM level control”.
Pressing any output selection key when the “GLM level control” mode is active returns the outputs in
9320 on.
Fig. 16. The output of 9320 not in use, for example when 9320 is controlling an external set of SAM
monitors receiving audio from an outboard audio interface.
The MUTE key mutes all outputs of 9320A, and outputs controlled by the GLM software, making the
MUTE key a universal way of muting all audio controlled by 9320A.
5.5 Display Screen Saver and key LED brightness
When any control (knob, keys) on the 9320 is used, the display in 9320 automatically turns on. The 9320
detects the brightness in the room and adjust the brighness of the display and the key lighting
automatically with the room illumination.
The display automatically screen saver turns the display off after a period of no access to the 9320
physical controls. The display screen saver activates in steps. If ot controls on the 9320 are used, the
display brightess reduces first, and after some time, the display turns off.
This display screen saver is always active and cannot be disabled, but the screen saver activation time
can be adjusted. The screen saver activation time can be adjusted using GLM software, in the 9320
setup, using the “Screen saver” setting. The time is given in seconds. Using a very long display screen
saver time may reduce the display lifetime. The default time is one minute.
Fig. 17. The output of 9320 not in use, for example when 9320 is controlling an external set of SAM
monitors.
The “Led brightness (%)” setting controls the brighness of the lighting of the texts next to the keys on
9320A. Selecting the “LEDs Off with Screen” ON turns off the lighting at the keys when the display
banks off. This can be useful when any lighting on the 9320 must be avoided to remove distraction by
