9320 Reference Controller Operating Manual 12 (52)
5 Features in 9320A
5.1 Connectors
On the back side, 9320 has (see Fig. 1, from left to right) the following connectors
 Genelec measurement microphone connector
 Headphone output, 6.3 mm stereo jack
 Two analogue balanced line outputs, 6.3 mm tip-ring-sleeve connectors
 Two analogue balanced line inputs, 6.3 mm tip-ring-sleeve connectors
 Digital audio output supports AES/EBU (AES3) format, XLR connector
 Digital audio input supports AES/EBU (AES3) format and S/PDIF format when used with an
separate 75 to 110 ohm impedance converter, XLR connector
 GLM monitor loudspeaker management network interface (bottom connector) and GLM network
terminator, optionally used when the management network is long (top connector)
 PWR is an auxiliary USB-C power input for use when the computer USB output cannot supply
sufficient power for 9320A
 USB-C computer interface, used for management, audio input, and power supply for 9320A
 Kensington compatible anti-theft lock opening

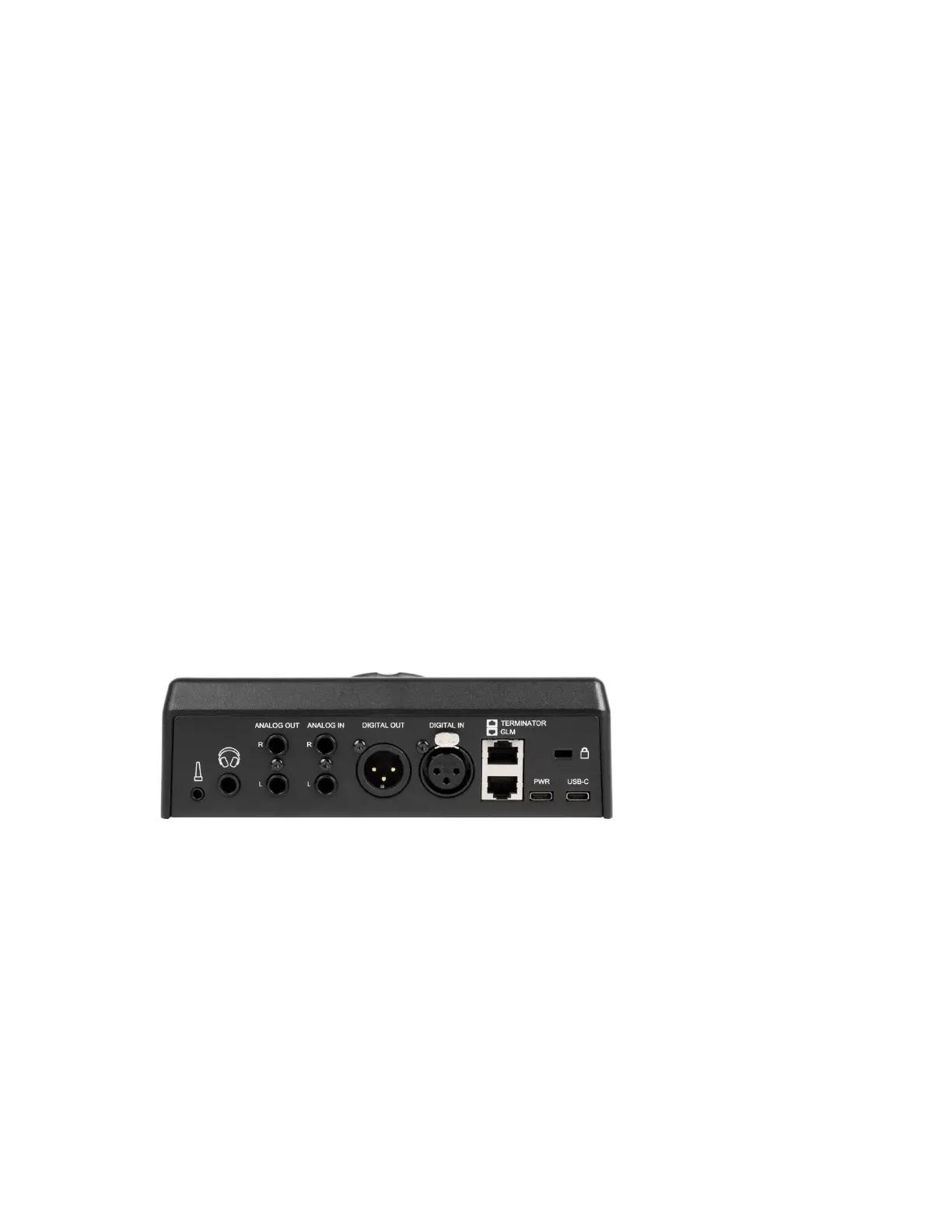

Fig. 2. Back side connectors of 9320
