Generac Power Systems 0K8420-A User Manual

Installation Drawings
54 Installation Guidelines for Spark-Ignited Stationary Emergency Generators

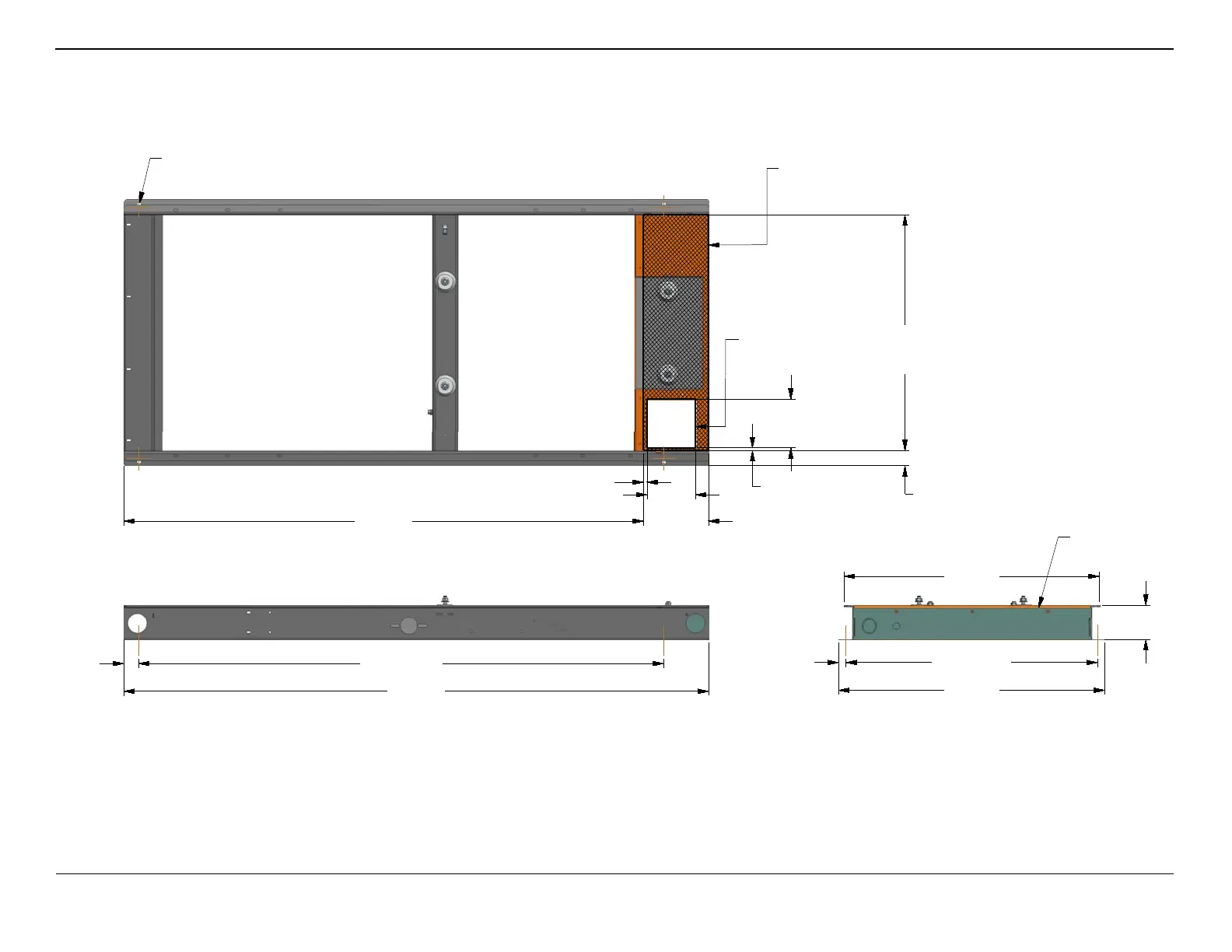

0K8636-A 36/45 kW (2.4 L) Page 2 of 2
162
[6.4]
9
[.4]
51
[2.0]
786
[30.9]
STUB-UP
AREA
162
[6.4]
50
[2.0]
TYP
1750 [68.9] TYP
MOUNTING SLOT CENTERS
1950 [76.8]
850 [33.5]
116
[4.6]
25 [1.0]
TYP
838 [33.0] TYP
MOUNTING SLOT CENTERS
888 [35.0]
12 [.5]
217 [8.5]
STUB-UP
AREA
1733 [68.2]
DIMENSIONS: MM [INCH]
CIRCUIT BREAKER
NEUTRAL AND CUSTOMER
CONNECTION OPENING
HIGH AND LOW
VOLTAGE
STUB-UP AREA
TOP VIEW
13.5 X 29.5
MOUNTING SLOTS
4X
LEFT SIDE VIEW
REAR VIEW
REMOVABLE
STUB-UP COVER

Generac Power Systems 0K8420-A Specifications

General

Brand	Generac Power Systems
Model	0K8420-A
Category	Portable Generator
Language	English
