Generac Power Systems 0K8420-A User Manual

Installation Drawings
60 Installation Guidelines for Spark-Ignited Stationary Emergency Generators

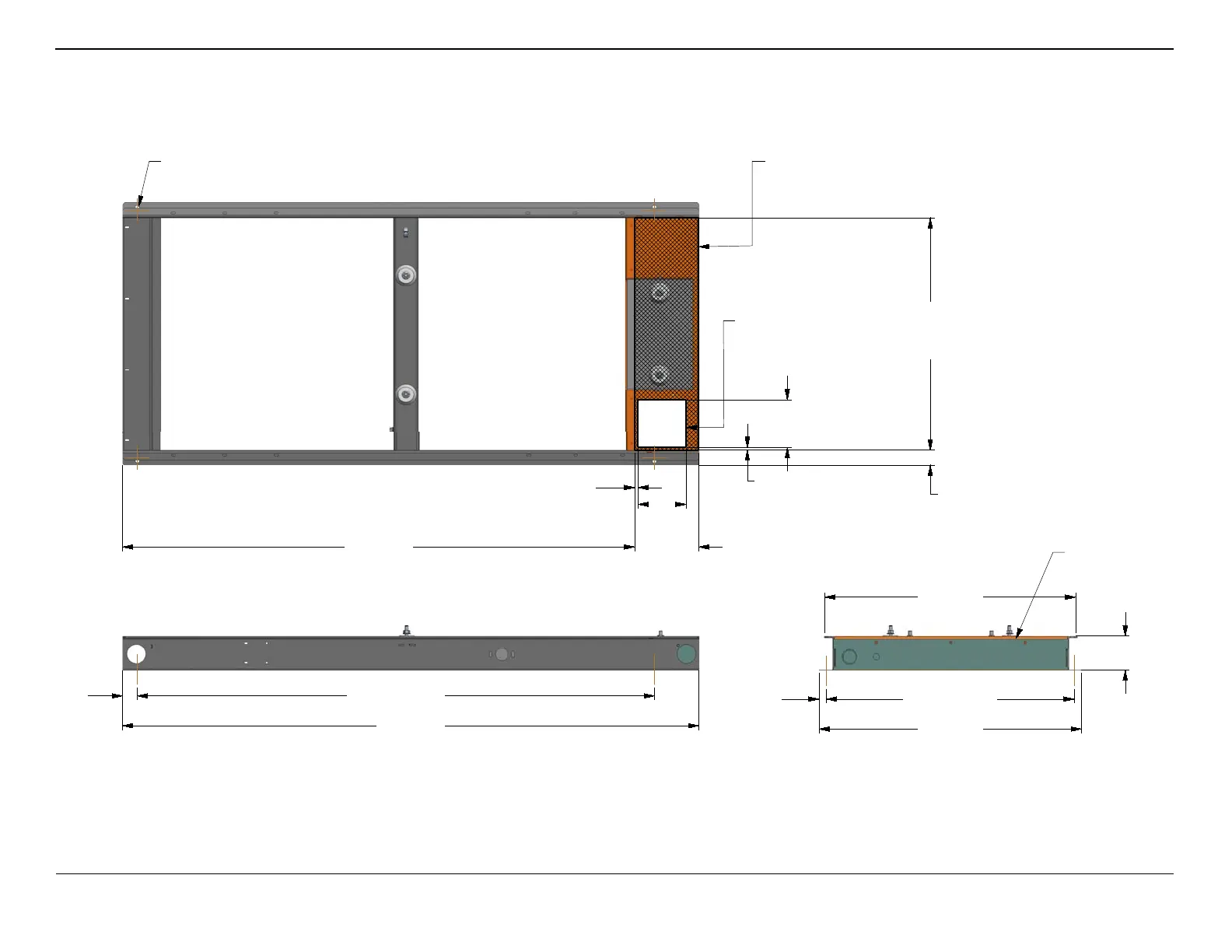

0K9243-A 48 kW (5.4 L) Page 1 of 2
162
[6.4]
51
[2.0]
786
[30.9]
STUB-UP
AREA
9
[.4]
162
[6.4]
50
[2.0]
TYP
1750 [68.9] TYP
MOUNTING SLOT CENTERS
1950 [76.8]
25 [1.0]
TYP
838 [33.0] TYP
MOUNTING SLOT CENTERS
888 [35.0]
116 [4.6]
850 [33.5]
1733 [68.2] 217 [8.5]
STUB-UP
AREA
12
[.5]
DIMENSIONS: MM [INCH]
TOP VIEW
LEFT SIDE VIEW
REAR VIEW
CIRCUIT BREAKER
NEUTRAL AND CUSTOMER
CONNECTION OPENING
HIGH AND LOW
VOLTAGE
STUB-UP AREA
13.5 X 29.5
MOUNTING SLOTS
4X
REMOVABLE
STUB-UP COVER
