Owner’s Manual for Snow Blower 25
Maintenance

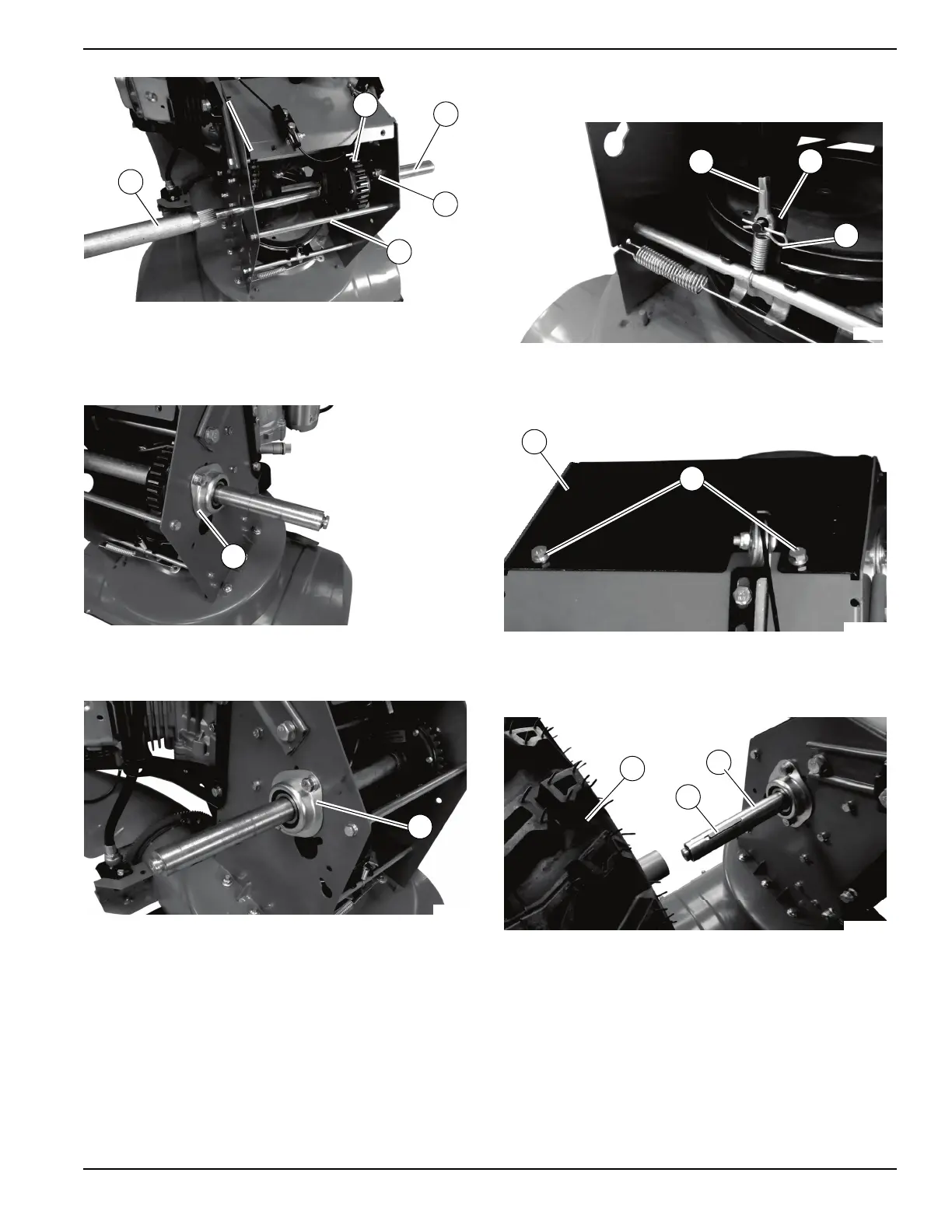

Figure 4-33. Rear Strut Assembly
7. Install re
ar strut (N).
8. See Figure 4-34. Install right side wheel bearing
assembly (O).
011121
O
Figure 4-34. Right Side Wheel Bearing Assembly
9. See Figure 4-35. Install left side wheel baring
assembly (P).
011120
P
Figure 4-35. Left Side Wheel Bearing Assembly
10. See Figure 4-36. Install traction cable (Q) onto
traction drive bracket (R) and pin (S).
011119
S
R
Q
Figure 4-36. Installing Traction Cable
11. See Figure 4-37. Secure transmission cover (T)
with two bolts (U).
011115
U
T
Figure 4-37. Installing Transmission Cover
12. See Figure 12. Install both shaft keys (V) and
wheels (W) onto axle shafts (X).
011114
X
V
W
Figure 4-38. Installing Shaft Keys
13. Install w
heel retaining clips.
14. With
the help of another person, tip unit down onto
the wheels.
15. Ad
d oil and fuel.
