Installation Manual for Generac PWRcell Battery 19
3. Insert first fastener in the lower hole of the wall
bracket (A) at the mark placed in step 2, leaving it
partially loose until bracket is in alignment and
plumb.
4. Level wall bracket (A) and double check alignment.
Double check measurement of 30 11/16 in (779.2
mm) is the same for the other lower mounting fas-
tener in wall bracket (A). Make sure opposite wall
bracket (A) fastener is in alignment for 16 in (40.64
cm) on center studs.
5. Install and tighten both lower wall bracket mounts.
6. Double check wall bracket (A) fasteners are in
alignment with foot bracket (B) fasteners and wall
bracket (A) is still plumb.
7. Install a minimum of two fasteners in the top holes
of the wall bracket (A).

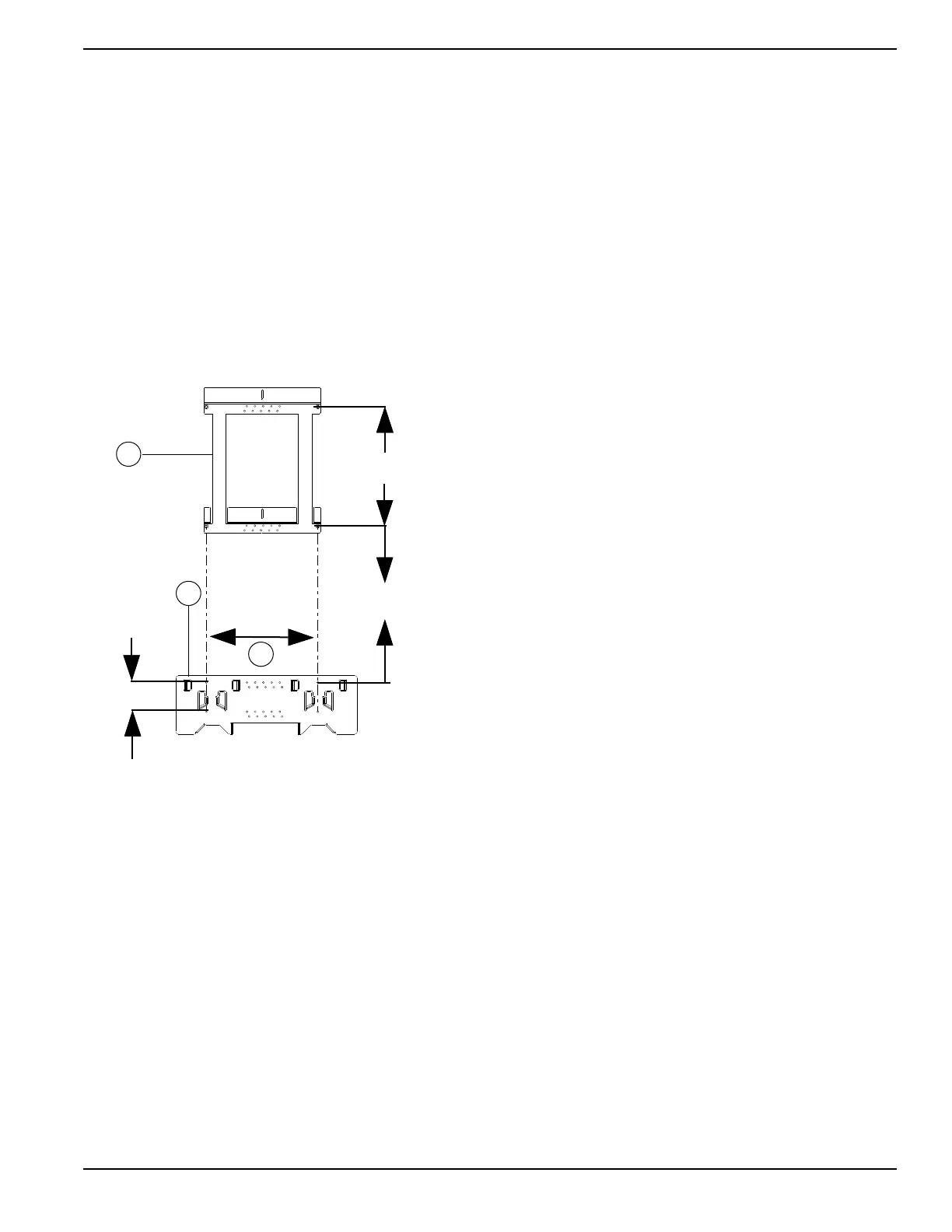

Figure 4-7. Foot Bracket and Wall Bracket Alignment
011154
30 11/16 in
(779.2 mm)
16 in
(406.4 mm)
4 3/16 in
(106.8 mm)
17 3/16 in
436 mm
A
B
C
