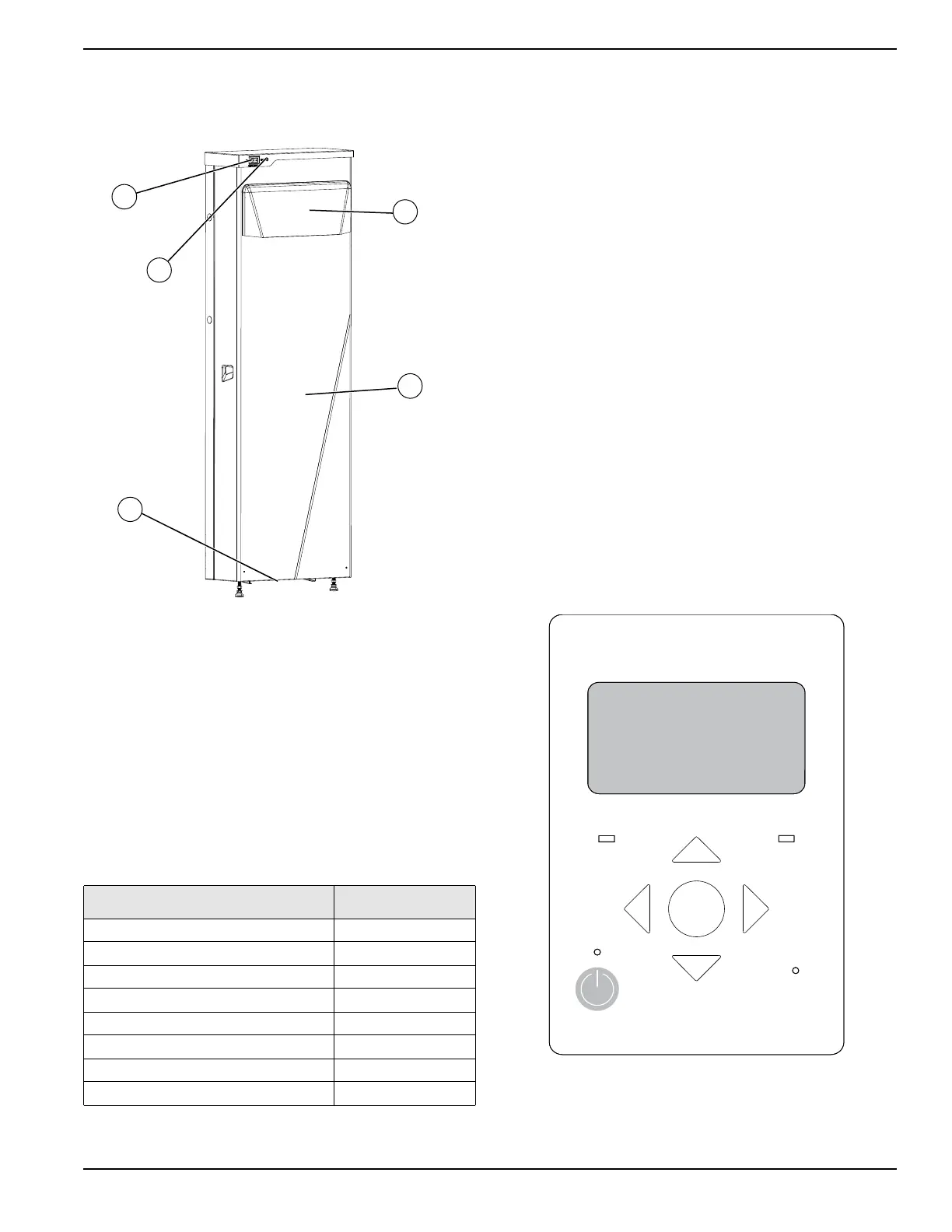

Component Locations
Figure 6-1. Component Locations
Battery Status LED
See Figure 6-1. The color and strobing interval of LED
(B) communicates battery status.
Communication
All communication between REbus devices takes place
over the REbus conductors using Power Line Carrier
(PLC) communication. No additional communication
wiring or equipment is required for communication
between a PWRcell Inverter, PV array, and / or other
REbus enabled batteries.
System Operational Modes
The PWRcell system has several operational modes
available for various installation configurations, markets,
and applications. Operational modes are selected
through the PWRcell Inverter control panel. The inverter
prioritizes the distribution of power differently based on
the selected operational mode.
See the Generac PWRcell Inverter Installation and
Owner’s Manual for complete instructions on configuring
the entire system for each operational mode.
Inverter Control Panel
See Figure 6-2. The battery is controlled through the
PWRcell Inverter control panel. Use the inverter control
panel to enable or disable the battery, and to set the
operational mode for the system. See the Generac
PWRcell Inverter Installation and Owner’s Manual for
more information on settings and display screens.
Figure 6-2. Inverter Control Panel
A Battery Disconnect Switch
B Battery Status LED
C Intake Filter
D Front Cover
E Exhaust Vent
Table 6-1. Battery Status LED
LED Color / Interval Battery Status
Orange, solid Disabled
Orange, strobe (2s) Waiting
Green / Orange, alternating Initializing
Green, solid Charging
Green, rapid blinking (0.5s) Discharging
Green, strobe (2s) Standby
Red, rapid blinking (0.5s) Error
Red, strobe (8s) Sleeping
012637
A
B
C
D
E
REbus Inverter
Internet
Shutdown
(hold)
