Installing PWRcell Battery
30 Installation Manual for Generac PWRcell Battery

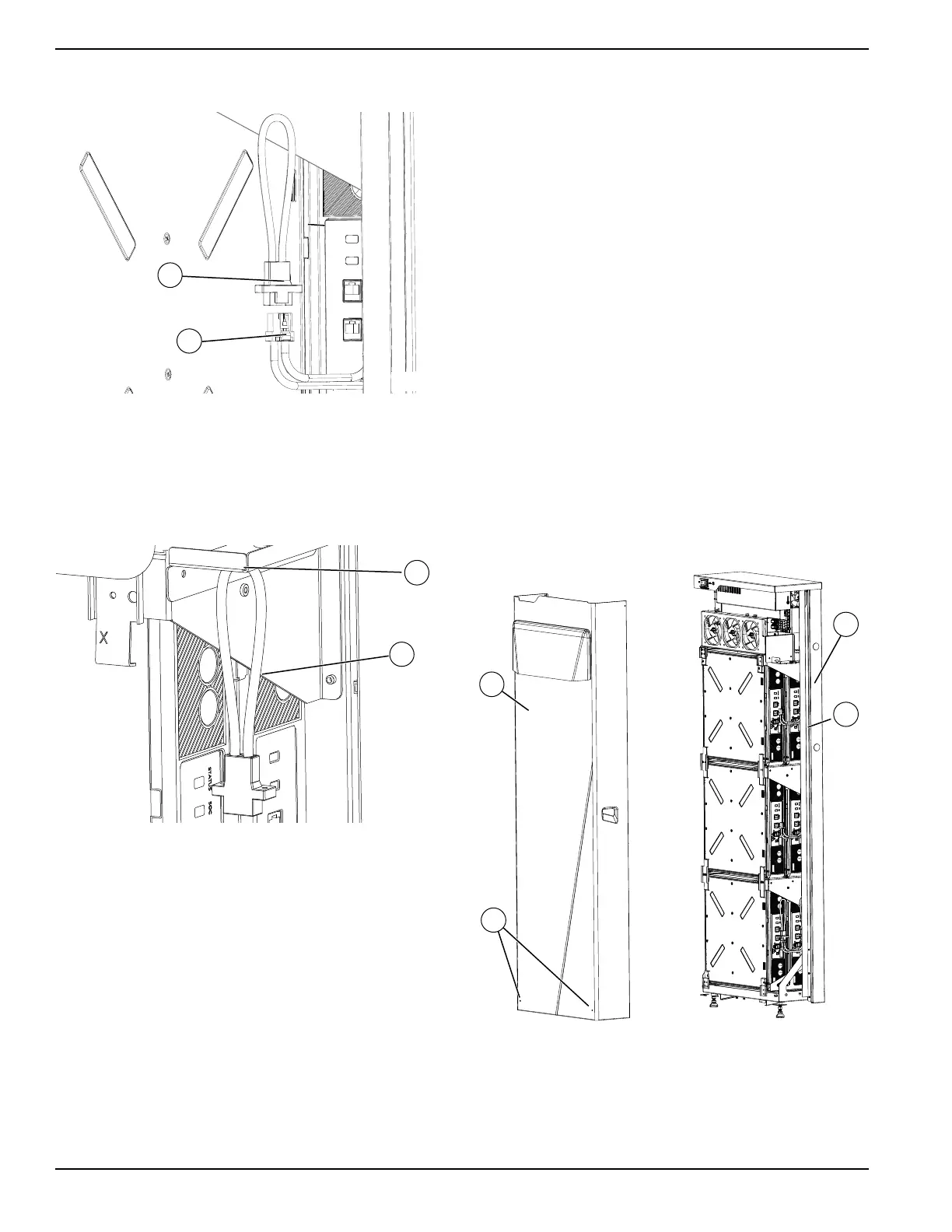

3. See Figure 4-35. Install loop jumper (C) on every
unused power cord connector (D).
Figure 4-35. Installing Loop Jumper
4. See Figure 4-36. Tie unused loop jumpers (E) to
wiring chase baffle slot (F) for future use.
NOTE: If a battery module needs to be replaced, spare
loop jumpers can be used to keep PWRcell Battery run-
ning until the replacement battery module gets installed.
Figure 4-36. Unused Loop Jumpers
Installing Cover
1. See Figure 4-37. Place cover (A) upright in front of
unit.
2. Verify all cables are tucked in and clear of frame.
3. Slide cover straight back until it engages with body
(B).
4. Verify all angled guides are tucked inside body.
The back edges of the cover should be against the
rubber gasket along their entire length (C).
NOTE: Do not force cover into place.
5. Lift straight up. Pins on cover will automatically
engage and hold the top of the cover in place.
6. Gently push in on the bottom of the cover. This will
lock the bottom of the cover in place.
7. Install two M4X16 mm screws (D) and torque to 13
in-lb (1.47 Nm).
To remove the cover:
1. See Figure 4-37. Remove the two M4X16 mm
SEM (D) securing cover (A) to body (B).
2. Lift cover up.
3. Pull cover bottom out slightly and lower to the floor.
Figure 4-37. Installing Front Cover
009943
D
C
009944
E
F
012642
A
D
C
B
