Installing PWRcell Battery
Installation Manual for Generac PWRcell Battery 27

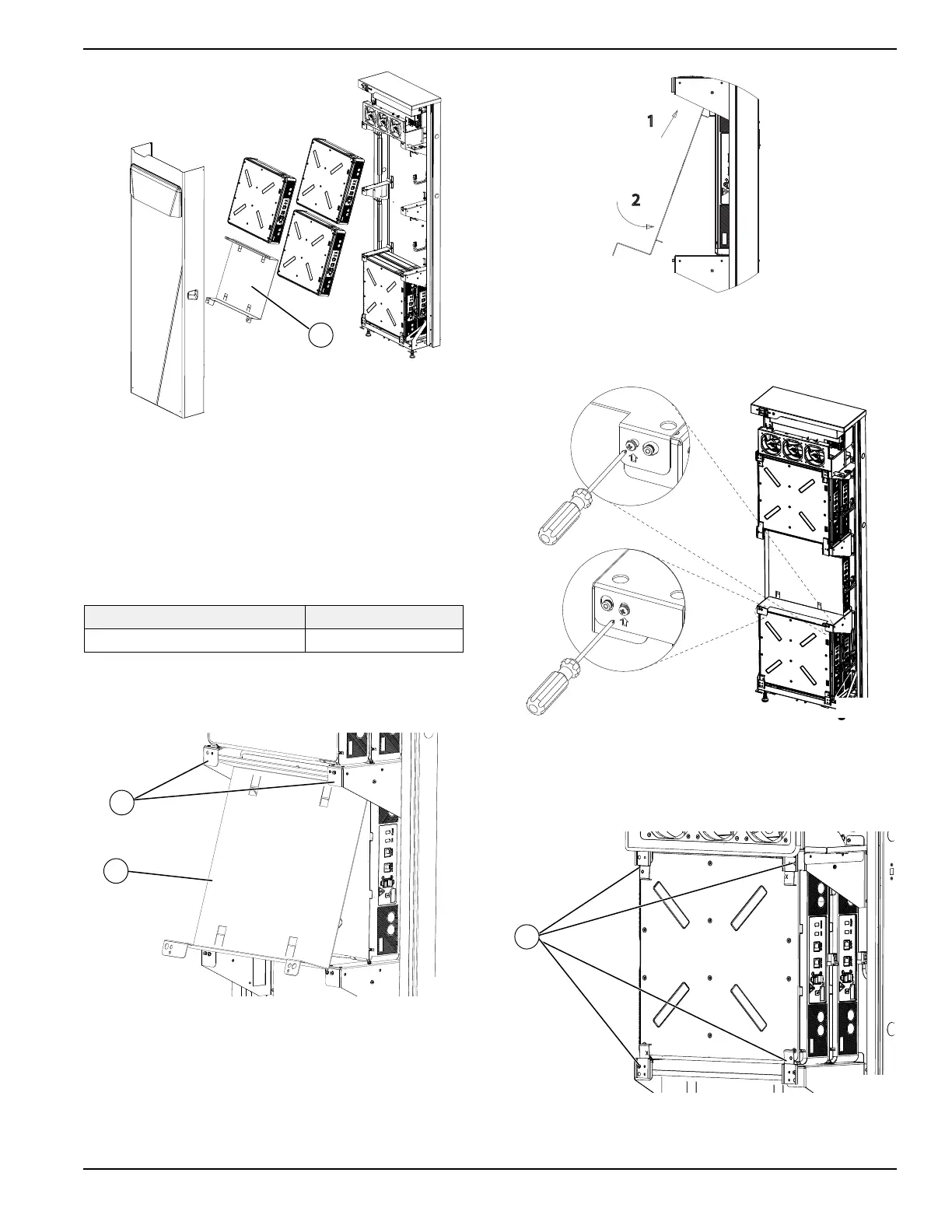

Figure 4-24. Module Spacer
PWRcell Battery modules and upgrade kits can be
obtained by contacting Generac Customer Service at 1-
888-436-3722 (1-888-GENERAC), or www.gen-
erac.com.
NOTE: Kits must be installed by a qualified individual.
Table 5 – Module Spacer Kit
To install module spacer:
1. See Figure 4-25. Angle top of spacer (P) under
and behind bracket lip (Q).
Figure 4-25. Installing Module Spacer (1 of 3)
2. See Figure 4-26 . Slide spacer up between brackets.
3. Push bottom of spacer in.
Figure 4-26. Installing Module Spacer (2 of 3)
4. See Figure 4-27. Secure spacer with two M4X8
SEMS screws and torque to 13 in-lb (1.47 Nm).
Figure 4-27. Installing Module Spacer (3 of 3)
Installing Retention Clips
See Figure 4-28. All front battery modules must be
secured with retention clips (R).
Figure 4-28. Retention Clips (1 of 3)
Module Spacer Kit Part Number
Generac PWRcell Spacer Kit APKE00008
012641
O
009934
P
Q
1
2
009935
012667
009937
R
