Installing PWRcell Battery
24 Installation Manual for Generac PWRcell Battery
Module Dimensions

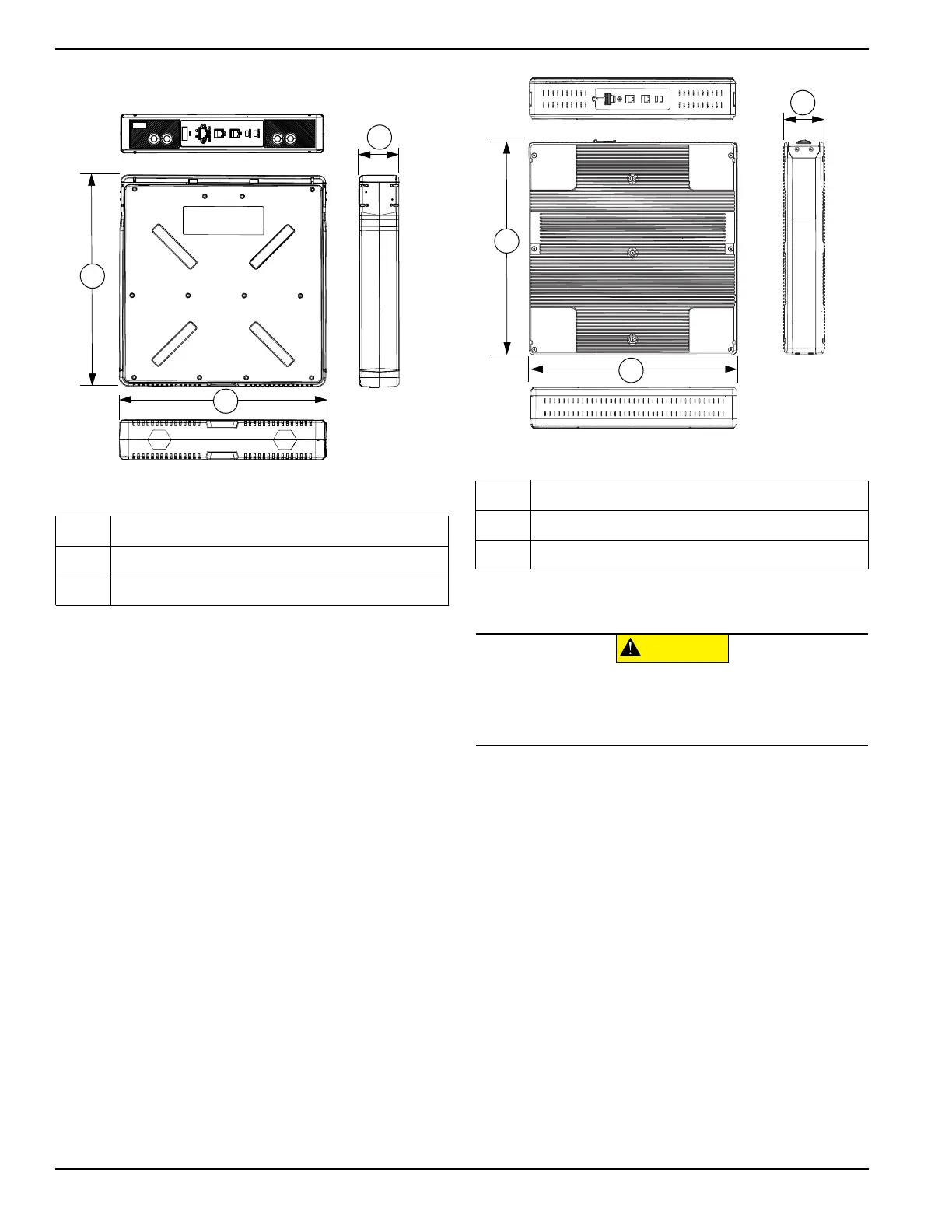

Figure 4-17. DCB Module Outline Dimensions
Figure 4-18. EX Module Outline Dimensions
Installing Battery Modules
• Record battery module serial numbers prior to
installation in Table 1: Important Information
located in the inside front cover of this manual.
• When installing battery modules, install top rear
module first, regardless of configuration.
• See Figure 4-19 for the order of battery module
and spacer installation for PWRcell M3 (B),
PWRcell M4 (C), PWRcell M5 (D), and PWRcell
M6 (E).
NOTE: Module spacers (F) are required on PWRcell M3
(B) and M5 (D) configurations.
A 17.72 ± 0.08 in (450 mm ± 2)
B 3.31 ± 0.08 in (84 mm ± 2)
C 17.32 ± 0.08 in (440 mm ± 2)
011292
B
C
A
A 17.72 ± 0.08 in (450 mm ± 2)
B 3.46 ± 0.08 in (88 mm ± 2)
C 17.32 ± 0.08 in (440 mm ± 2)
011158
B
C
A
CAUTION
(000731a)
Ensure all battery modules installed in any single
PWRcell Battery are the same type (EX or DCB).
Connecting different battery types can result in
equipment damage.
