General Monitors 4802A - Sensor and Test Connections; Sensor Connections; Card Test Switch Input

Model 4802A
Quick-Start Guide
xi
1.5.5 Sensor Connections
The terminal designations for the Sensor wires are:
Label Term Description
BLK 26d,z Black Sensor Wire
RED 28d,z Red Sensor Wire
WHT 30d,z White Sensor Wire
Figure 11 – Terminal Designations for Sensor Wires
NOTE - Only 1 sensor may be connected to a Model 4802A.

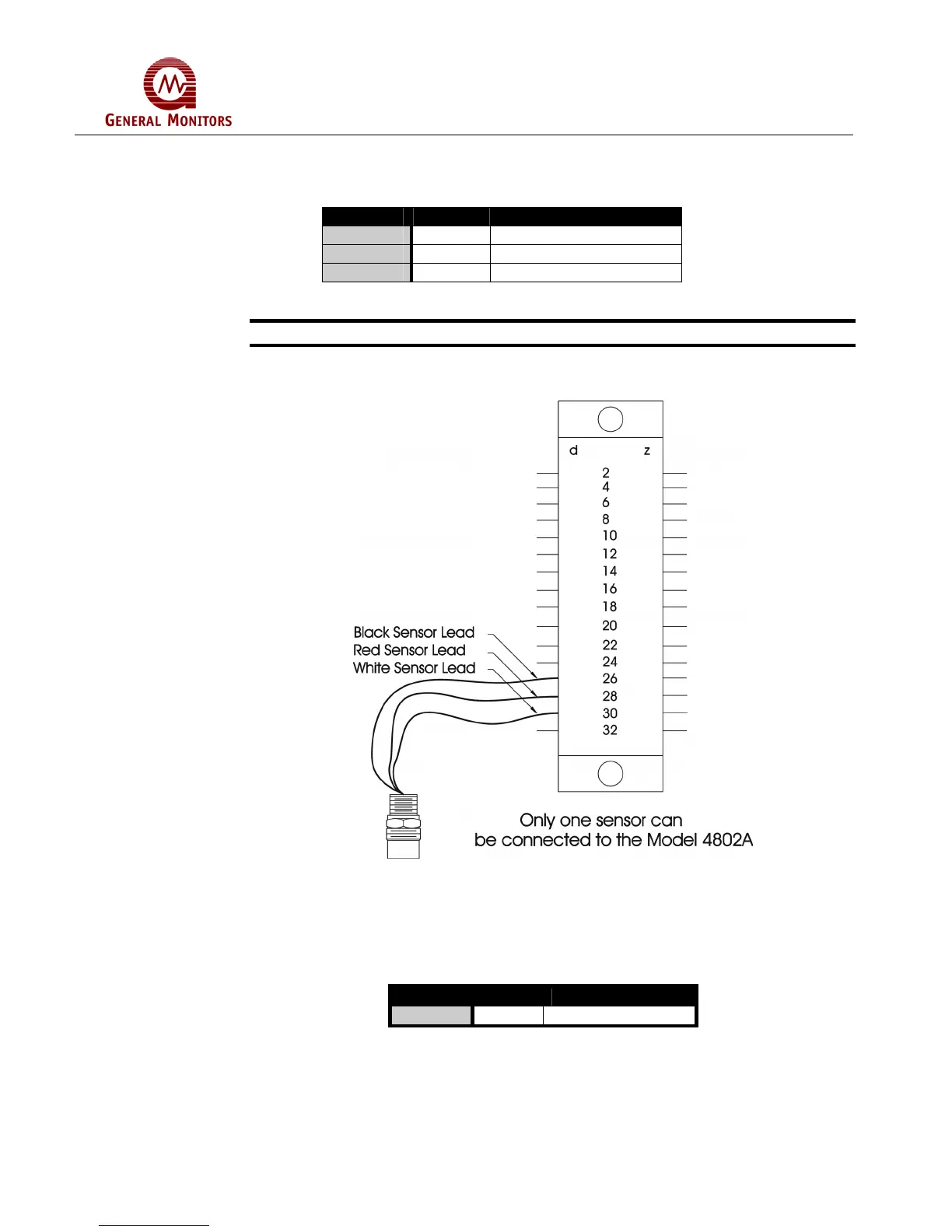

Figure 12 illustrates the Sensor/Controller connections.
Figure 12 – Sensor/Controller Connections
1.5.6 Card Test Switch
The terminal designation for the Card Test Input is:
Label Term Description
CT 16d Switch Connection
Figure 13 – Card Test Input
