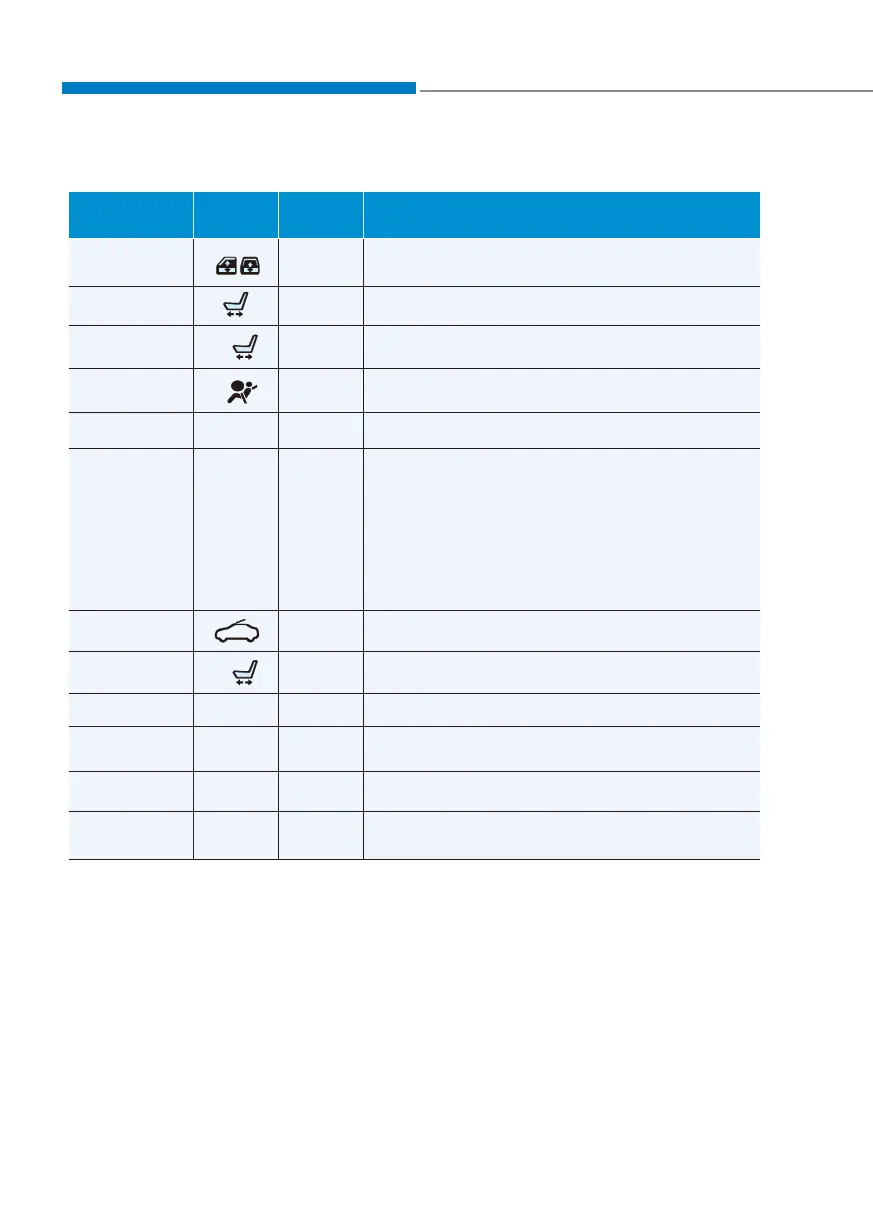

Dashboard fuse panel
Fuse Name
Symbol
Fuse
Rating
Circuit Protected
P/WINDOW
LH
LH
30A
Driver/Passenger Power Window Module, Rear
Power Window Module LH
P/SEAT
10A Driver/Passenger Lumbar Support Unit
P/SEAT PASS2
2 PASS
25A Passenger Power Seat Module
AIR BAG1
1
15A SRS Control Module
E-SHIFTER1
E-SHIFTER
1
10A Electronic ATM Shift Lever Dial
MODULE4
MODULE
4
10A
Data Link Connector, Console Mood Lamp, Mood
Lamp Unit, Rear Door Mood Lamp Unit LH/RH,
Garnish Mood Lamp LH/RH, Garnish Mood Lamp
Centre, Driver/Passenger Door Mood Lamp Unit,
3RD Seat Module, 2ND Seat LH/RH Module,
Passenger Power Seat Switch, Driver Door Module,
Passenger Lumbar Support Unit, Passenger Power
Seat Module
SUN ROOF1
1
25A Sunroof Control Unit (Master)
P/SEAT DRV1
1 DRV
25A Driver Power Seat Module
ECS
ECS
15A ECS Unit
POWER
HANDLE
POWER
HANDLE
15A Steering Tilt & Telescopic Unit
P/DOOR RH
P/DOOR
RH
15A Driver/Passenger Door Latch, Rear Door Latch RH
IBU1
IBU
1
10A
IAU, IBU, BLE Unit, Driver/Passenger Door Outside
Handle
