Genevac HT-4X - Schematic Diagram

HT Series II Inert Gas Purge
User Manual
20 10-1474 Issue 3-6 March 2014

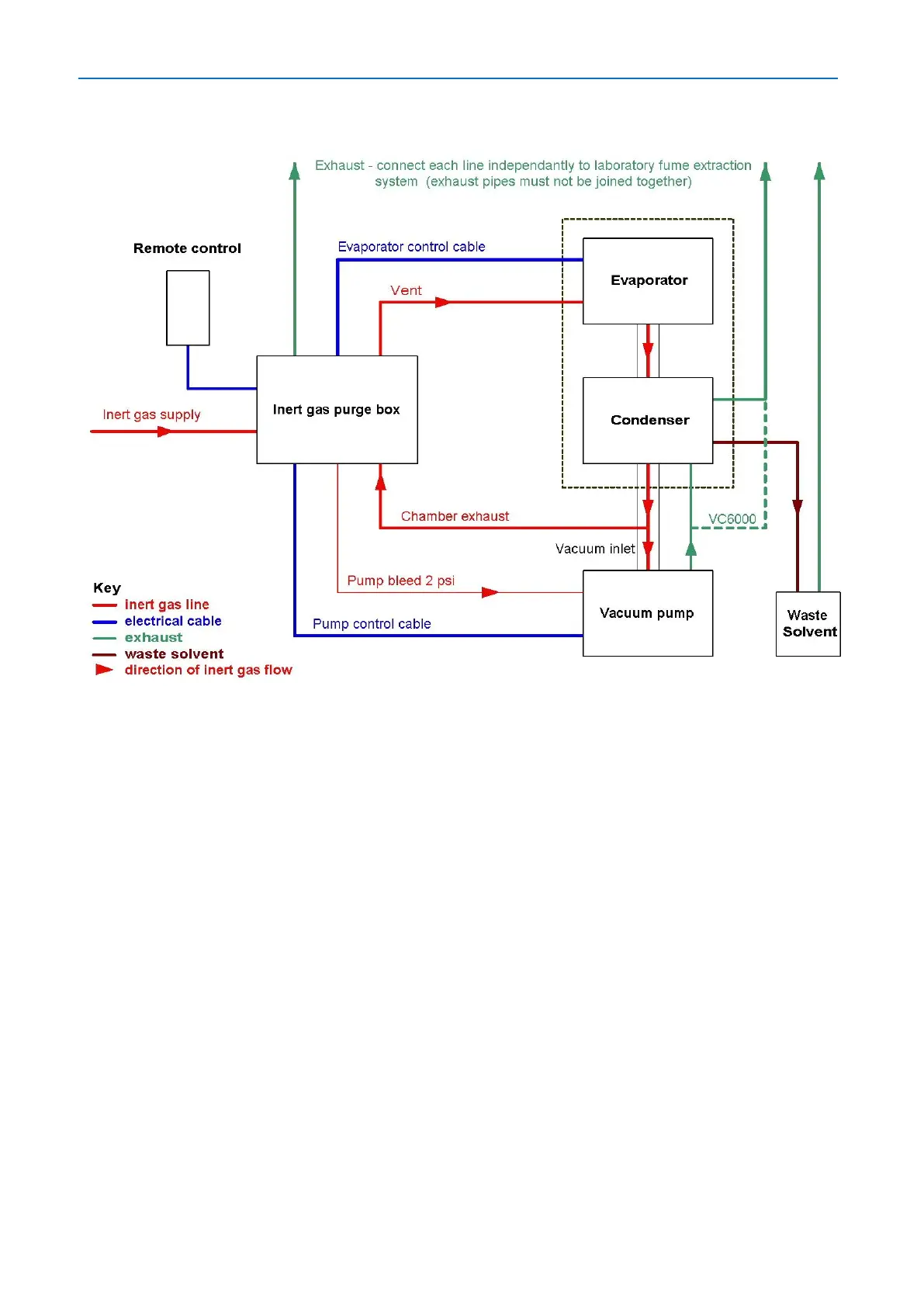

Schematic diagram
Notes: A waste solvent container is supplied with auto drain condenser systems only
The pump exhaust line is not routed through the condenser for VC6000.
