Operation Zoom80 | 61

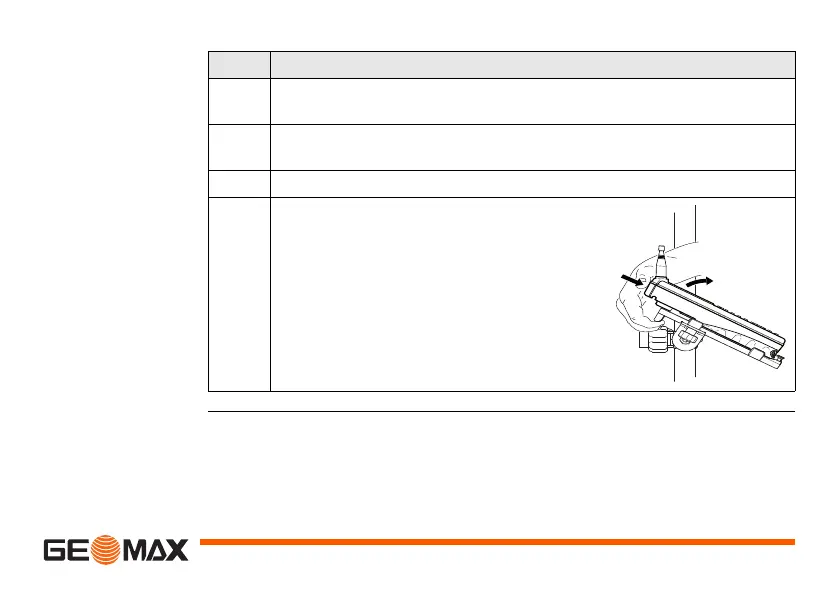

Detaching the
controller from
the holder step-
by-step
Step Description
1. Unlock the locking pin by pushing down the red button situated on
top of the mounting plate.
2. Place the palm over the top of the controller until the fingers grip the
bar of the holder under the controller.
3. Push the top of the controller toward the bar of the holder.
4. While in this position, raise the top of the
controller from the holder.
003661_001
1
2
