3.5.2 Instrument
Insert and
remove battery
step-by-step

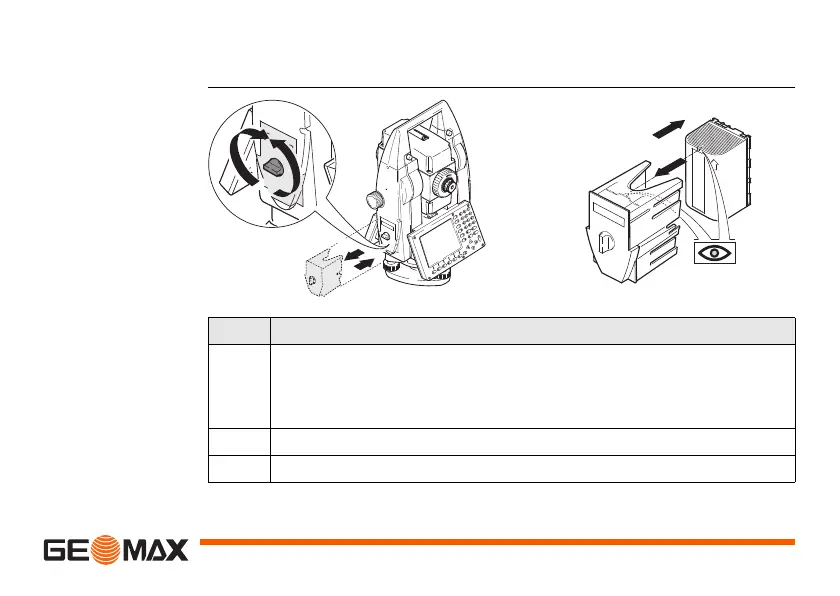

Step Description
1. Face the instrument so that the vertical drive screw is on the left. The
battery compartment is now on the left side of the instrument. Turn
the knob to the vertical position, opening the lid of the battery
compartment.
2. Pull out the battery housing.
3. Pull the battery from the battery housing.
2
6
1
7
Zoom80_008
3
5
4
