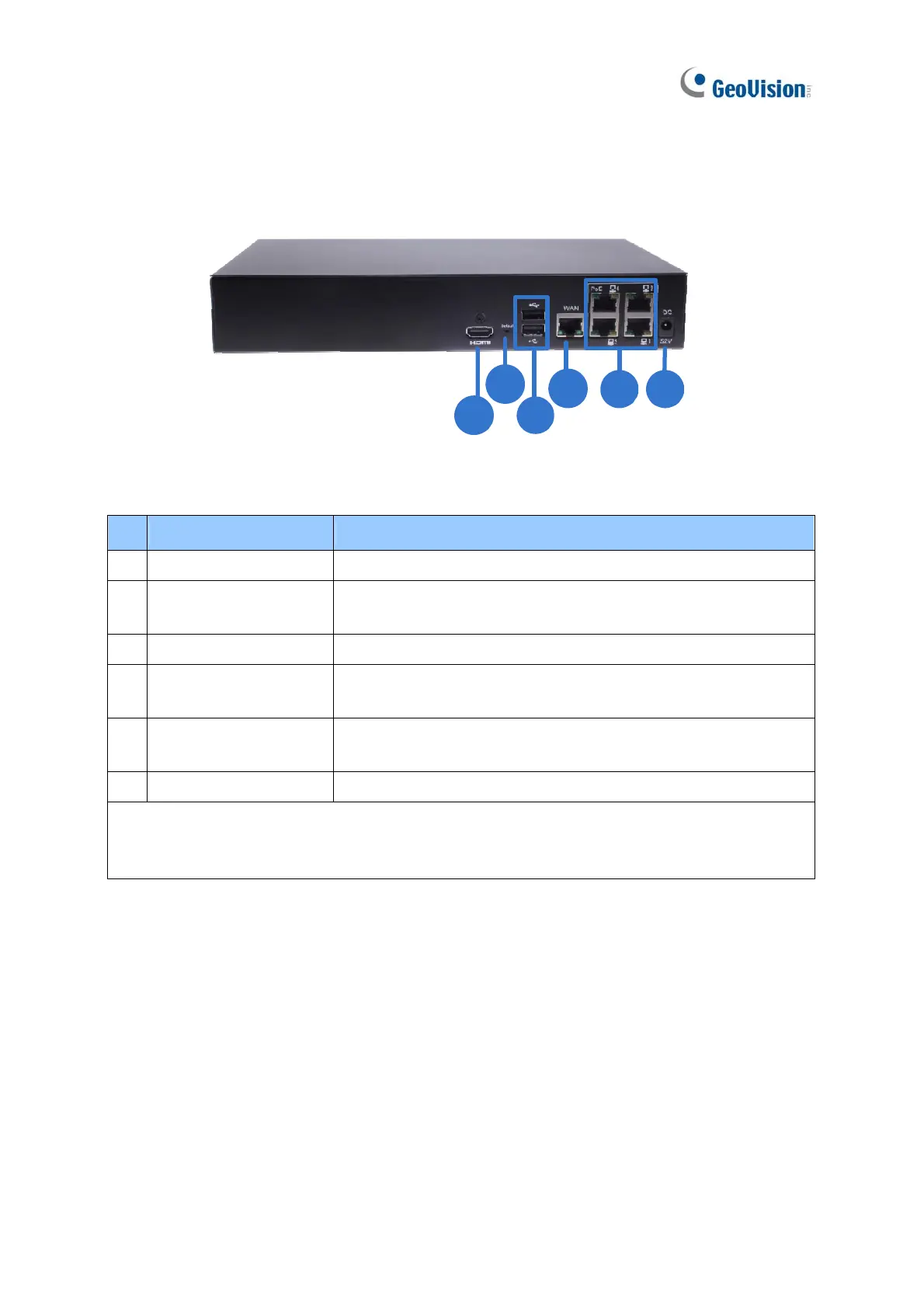

1.6.2 GV-SNVR0411 Rear View
6
1
4
2
5
3
Figure 1-3
No. Name Function
1
DC 52 V (Power Input) Connects to power supply.
2
Megabit PoE Ports
Connects to cameras, delivering power and network
connection to the cameras.
3
WAN Connects to a network.
4
USB 2.0 Port
Connects to a keyboard, mouse, USB flash drive, GV-WiFi
Adaptor V2 or GV-Joystick V2.
5 Default Button
Restores the device to its default settings. Press the button for
15 seconds to load default.
6
HDMI Output Connects to a HD TV.
IMPORTANT: Only connect GV-SNVR0411 to the Internet through its WAN Port (No. 3) as
opposed to any of the 4 PoE ports (No. 2), as they are only for connecting to IP cameras and
have limited network connection.
To Next Page
