27

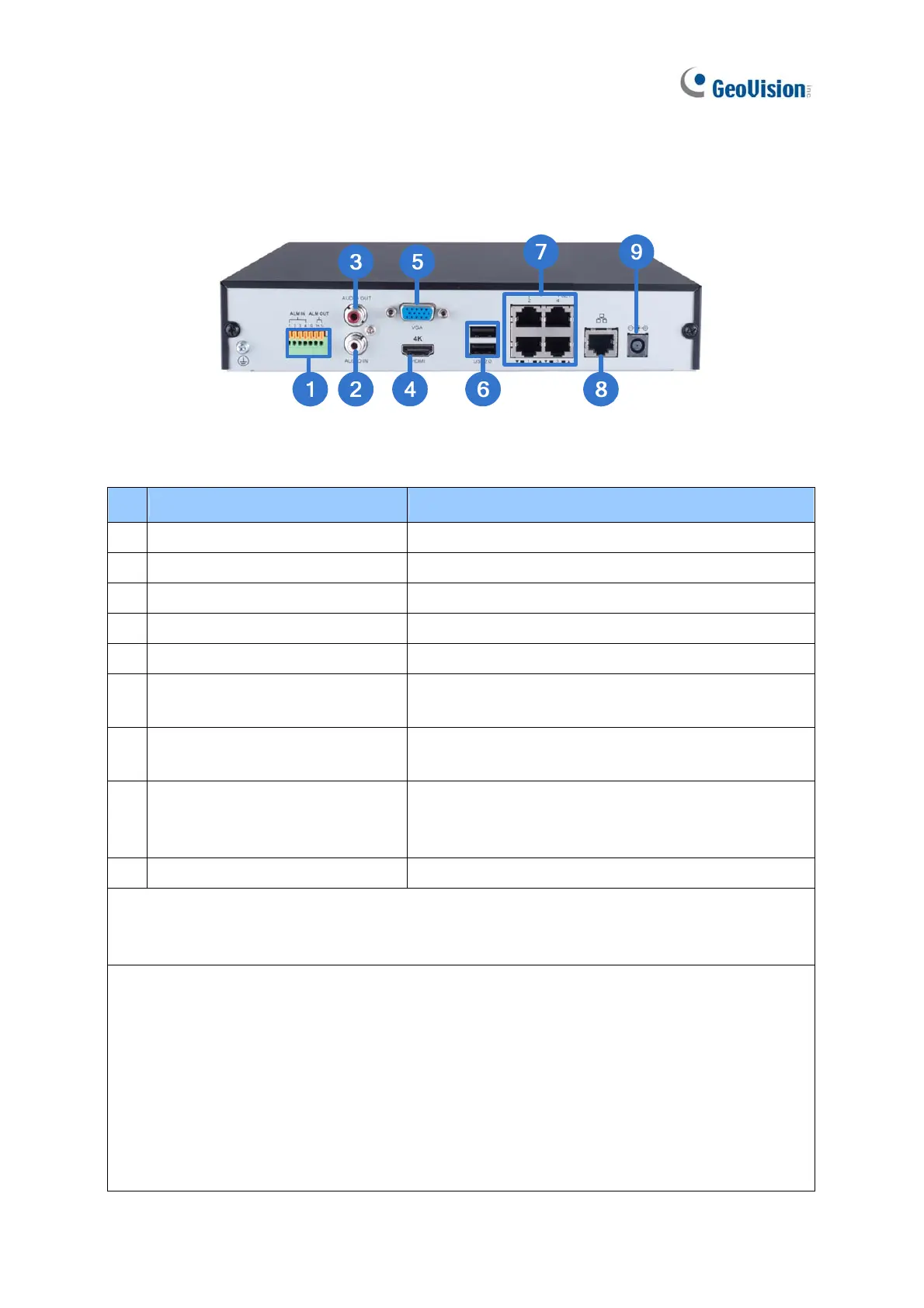

1.6.14 GV-SNVR0412 Rear View
Figure 1-15
No. Name Function
1
I/O Panel Connects to 4 input and 1 output devices
2
Audio Line Out Port Connects to a speaker.
3
Audio Line In Port Connects to a microphone.
4
HDMI Output Connects to a HD TV.
5
VGA Output Connects to a VGA monitor.
6
USB 2.0 Port
Connects to a keyboard, mouse, USB flash drive or
GV-Joystick V2.
7 Megabit PoE Ports
Connects to cameras, delivering power and network
connection to the cameras.
8
Megabit Ethernet Port (WAN)
Connects to a network. The light at the bottom
flashes green when connecting to Ethernet of 10
/100 Mbps.
9
DC 52 V (Power Input) Connects to power supply.
IMPORTANT: Only connect GV-SNVR0412 to the Internet through its WAN Port (No. 8) as
opposed to any of the 4 PoE ports (No. 7), as they are only for connecting to IP cameras and
have limited network connection.
Note:
1. IP cameras connected to the PoE ports are provided network connection via an isolated
network that is not bridged to, or inaccessible by, the WAN.
2. IP cameras connected to the PoE ports are assigned a channel number in accordance to
the PoE port number.
3. GV-SNVR0412 does not have a load default button. To restore factory settings manually
for firmware V1.05 or later, click both the left- and right-click of the mouse 10 times within
3 seconds during the startup screen, or see 3.8 System or 6.2.5 Restoring to Factory
Default Settings for loading default through its UI or GV-IP Device Utility, respectively.
