Gesipa taurus 2 - Assignment of Spreader Nosepieces and Mandrel Springs; Spreader Nosepiece Without Opening Mechanism

23
• Standard spreader nosepieces are suitable for all types of applications with easily
accessible riveting points.
• Standard pointed spreader nosepieces are used for at head rivets.
• Extended and extended curved spreader nosepieces have the same shaped heads
as standard spreader nosepieces and are suitable for applications with riveting points
that are difcult to access.
6. Assignment of spreader nosepieces and mandrel springs
6.1 Spreader nosepiece without opening mechanism
Rivet Ø (mm) Part no. Ø d (mm) Ø D (mm) L1 (mm) L2 (mm)
Standard
(g. 6.1.1)
3.2 145 7753 6 10.5
31 -
4.0 145 7754 7.5 12
4.8 145 7755 9 14
Extended
(g. 6.1.1)
3.2 145 7756 6 10.5
57 -4.0 145 7757 7.5 12
4.8 145 7758 9 14
Standard
pointed
(g. 6.1.2)
3.2 145 0900 5.2 10.5
31 64
4.0 145 0901 6.2 12
4.8 145 0902 8.6 14
Extended
curved
(g. 6.1.3)
3.2 145 0903 6 11 55 88
4.0 145 0904 7.5 12,5 55.5 88.5
4.8 145 0905 9 14,5 56 89

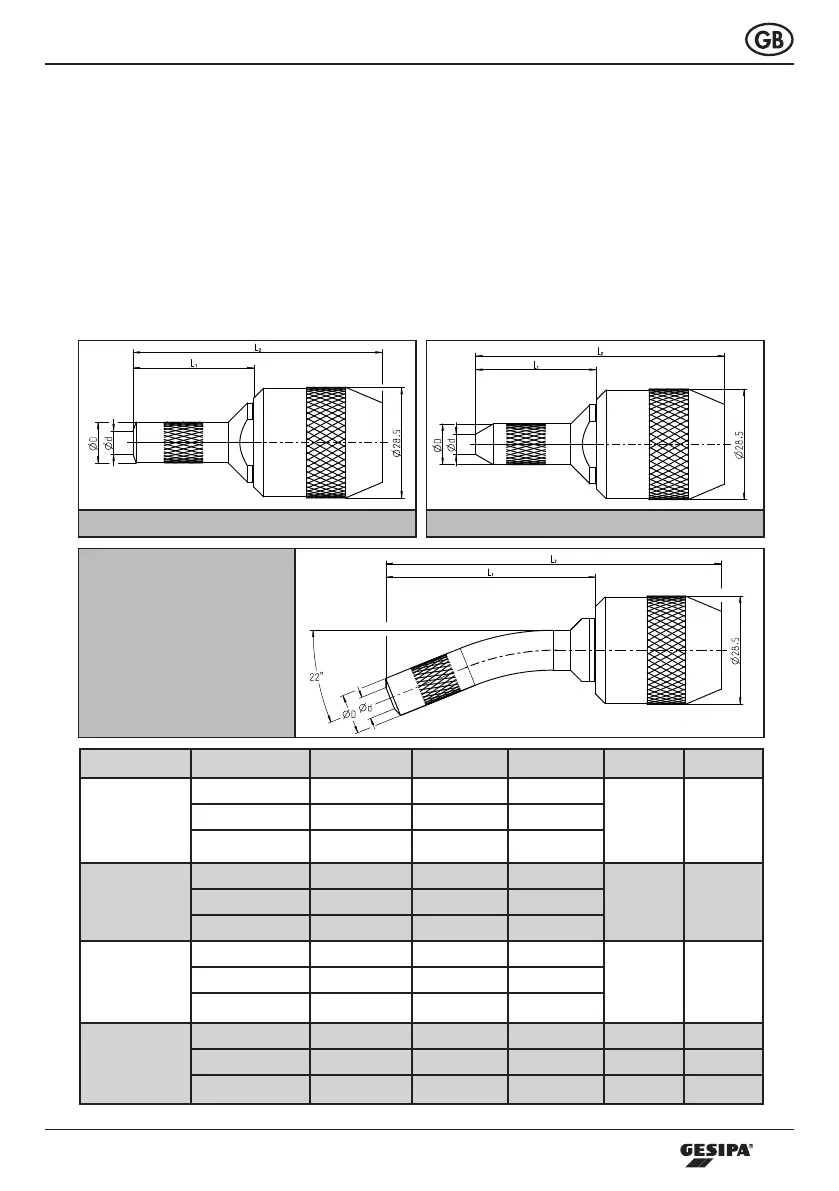

Standard and extended spreader nosepieces
Fig. 6.1.1 Fig. 6.1.2
Extended curved spreader
nosepieces
Standard pointed spreader nosepieces
Fig. 6.1.3
