6.2 Spreader nosepiece with opening mechanism

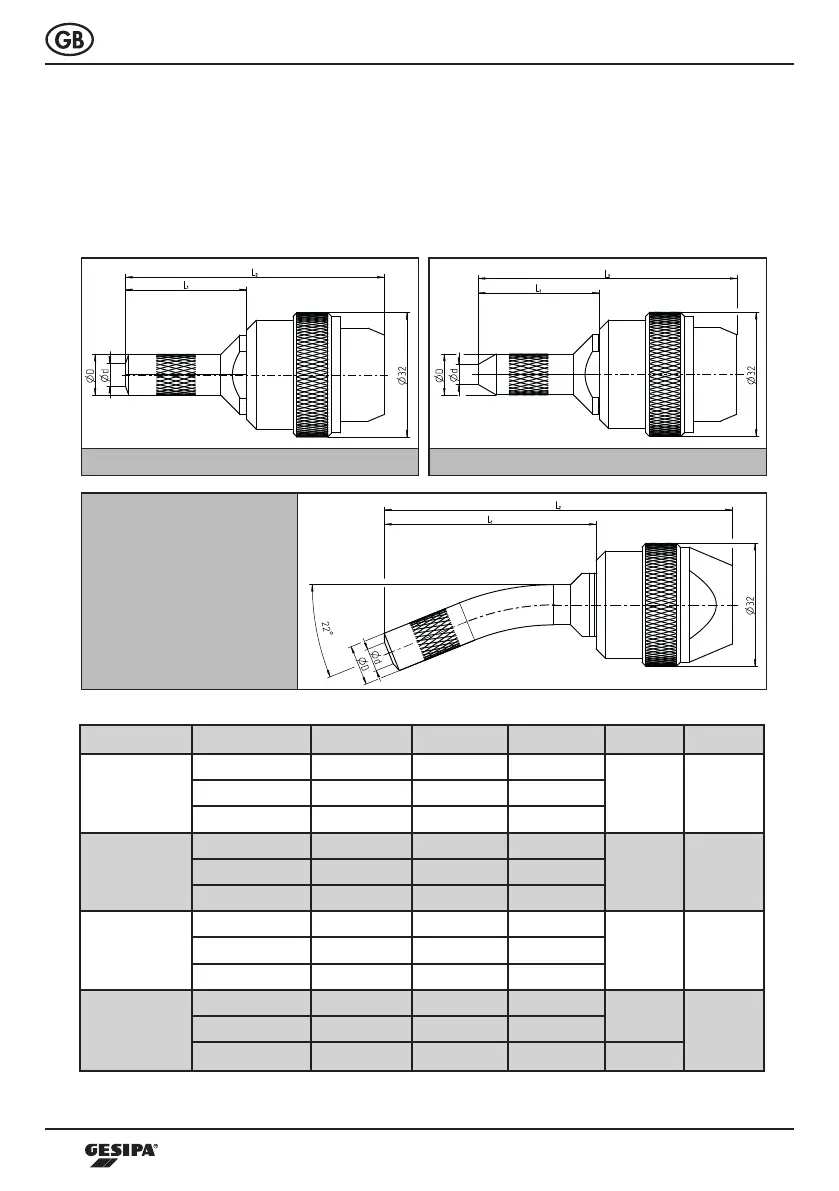

Fig. 6.2.1 Fig. 6.2.2
• The spreader nosepiece with opening mechanism makes it easier to open the nosepiece
so that the speed rivets can be changed more easily and quickly.
• The different versions are suitable for the applications described in point 6.1
Rivet Ø (mm) Part no. Ø d (mm) Ø D (mm) L1 (mm) L2 (mm)
Standard
(g. 6.2.1)
3.2 145 0906 6 10.5
31 -4.0 145 0907 7.5 12
4.8 145 0908 9 14
Extended
(g. 6.2.1)
3.2 145 0909 6 10.5
57 -4.0 145 0910 7.5 12
4.8 145 0911 9 14
Standard
pointed
(g. 6.2.2)
3.2 145 0912 5.2 10.5
31 674.0 145 0913 6.2 12
4.8 145 0914 8.6 14
Extended
curved
(g. 6.2.3)
3.2 145 0915 6 11
55
91
4.0 145 0916 7.5 12,5
4.8 145 0917 9 14,5 56
Standard and extended spreader nosepieces Standard pointed spreader nosepieces
Extended curved spreader
nosepieces
Fig. 6.2.3
