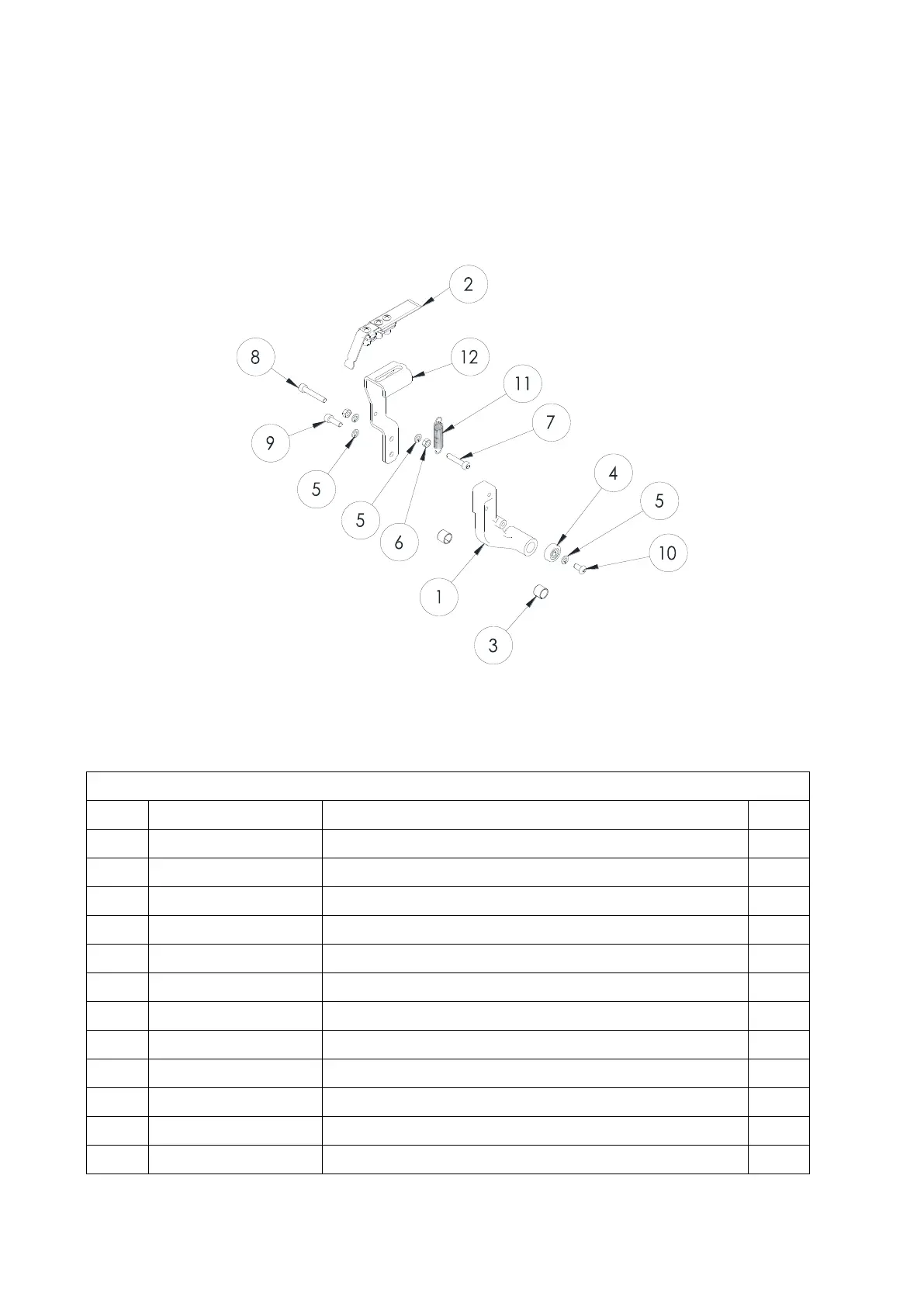

FIG. 24-1 HEATER PLATE UNIT
FIGURE 24-1 HEATER PLATE UNIT
NO
PART NUMBER
Description
QTY
1
P02-0334500
HEATER ARM
1
2
P02-0361700
HEATER PLATE ASSEM
1
3
P1104-0310101
BEARING CB1010
2
4
P1104-020635ZZ2
BEARING 635ZZ
1
5
P1103-0205Z
SPRING WASHER φ5
4
6
P1102-0105AZ
NUT M5
2
7
P1101-0505025AN
SCREW M5*25
1
8
P1101-0505030AN
SCREW M5*30
1
9
P1101-0505015AN
SCREW M5*15
1
10
P1101-0605010AN
SCREW M5*10
1
11
P1202-0001000
SPRING
1
12
P01-0557000
SPRING SEAT
1
