Right-Side Components

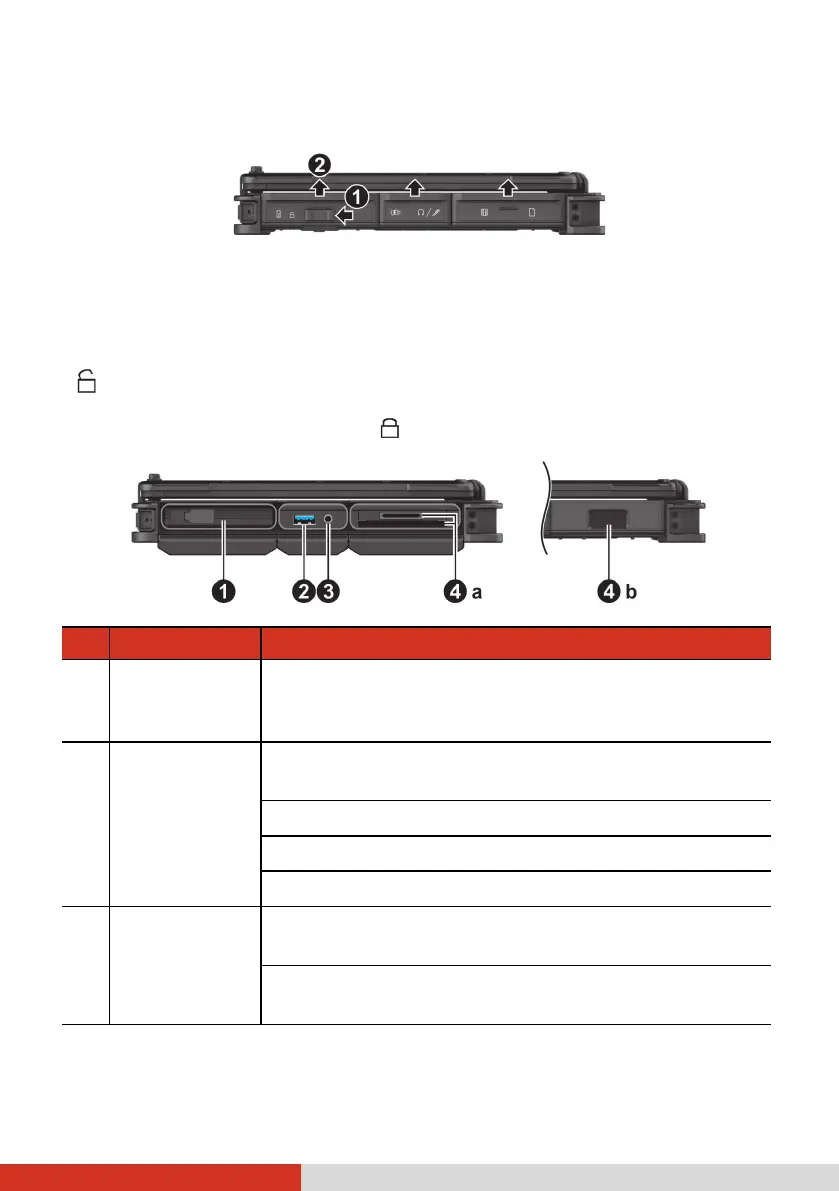

To access a connector, open its protective cover by lifting up the tab of the
cover. When closing the cover, push the tab downward until the cover clicks
into place.
To access a device bay, slide the cover latch toward the unlocked position
( ) and then lift up the tab to release the cover. When closing the cover,
push the tab downward until the cover clicks into place and then slide the
latch toward the locked position ( ).
Ref Component Description
Battery pack
Inside is the battery pack (Battery 2) that supplies
power to your computer when external power is not
connected.
PowerShare
USB port
Provides either of the below two functions depending
on your setting.
Charges a connected mobile device.
- or -
Functions as a standard USB 3.0 port (default setting).
Combo audio
connector
Connects a set of headphones or external speakers
with amplifier
Supports a headset microphone with 4-pole TRRS
3.5mm jack.
