Getinge 8668 - Pressure Sensor for Circulation Pump

Repair and adjustment
16
Service instructions
5015108-00 Edition 0403
A
B
Pressure sensor for circulation pump
To calibrate the pressure sensor for the circulation pump, proceed as follows.
1. Connect a PC with the CS 1000 program installed to the disinfector.
2. Connect a process simulator to A01-X2;
+ to 2
- to 5.
3. Set the process simulator to 4 mA.

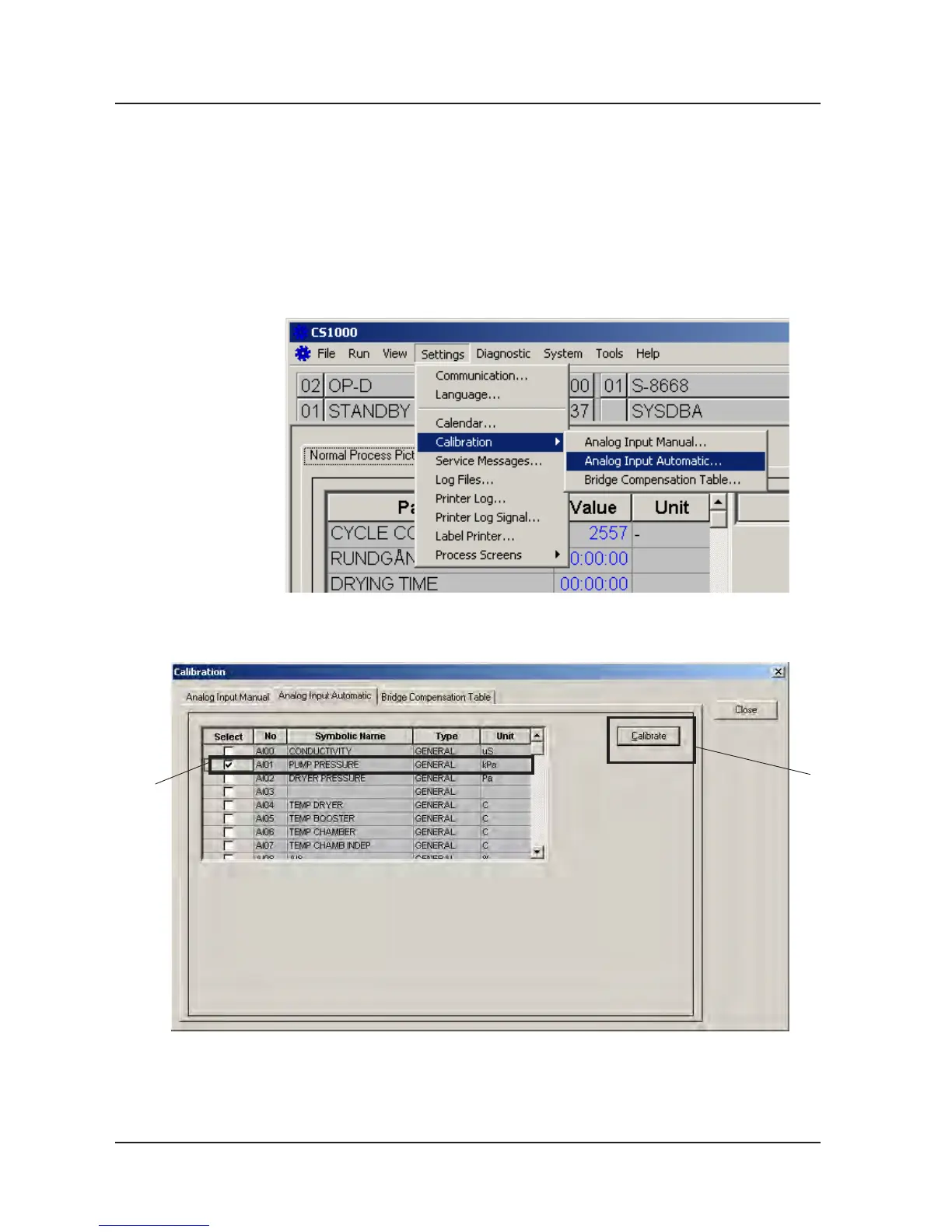

4. Start CS 1000 and choose Settings/Calibration/Analog Input Automatic...
5. Click Pump pressure (A) and then Calibrate (B).
V1563
V1567
