Repair and adjustment
30
Service instructions
5015108-00 Edition 0403
Replacing the door seal
This must only be done by authorised personnel.
• Automatic door: Remove door switches and bolts. (If a loading/unloading unit is installed,
there are door switches on the left-hand side only). This is so that the door can be pushed
down far enough to release the seal.
• Manual door: Remove bolts and leaf springs so that the door can be pushed down far
enough to release the seal.
• Push the door down to its lower position.
• Pull off the old seal.
• Fit the new seal and press it firmly into place.
• Automatic door: Install door switches and bolts.
• Manual door: Install bolts and leaf springs.

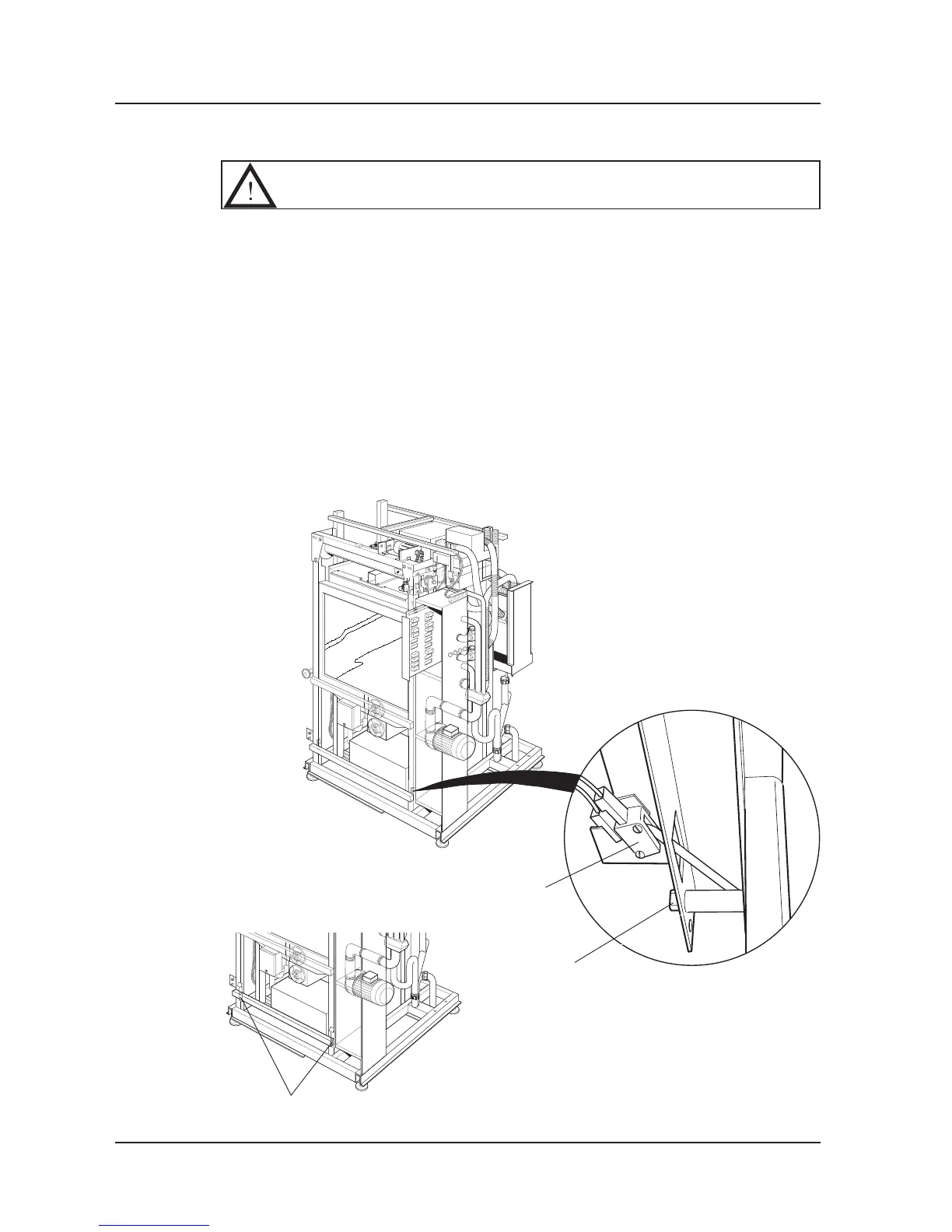

Door switch
Bolt
V1297
V679
Leaf springs
V1452
Machine with manual door:
Machine with
automatic door:
