Getinge 8668 - Temperature Sensor - with Resistor

Repair and adjustment
18
Service instructions
5015108-00 Edition 0403
Temperature sensor – with resistor
Proceed as follows to calibrate the temperature sensors with the aid of resistors:
1. Connect a PC with the CS 1000 program installed to the disinfector.
2. Insert resistors for 20 ºC at the following places:
A01-X7 Chamber temperature (two sensors)
A01-X6 Booster tank
A01-X5 Dryer

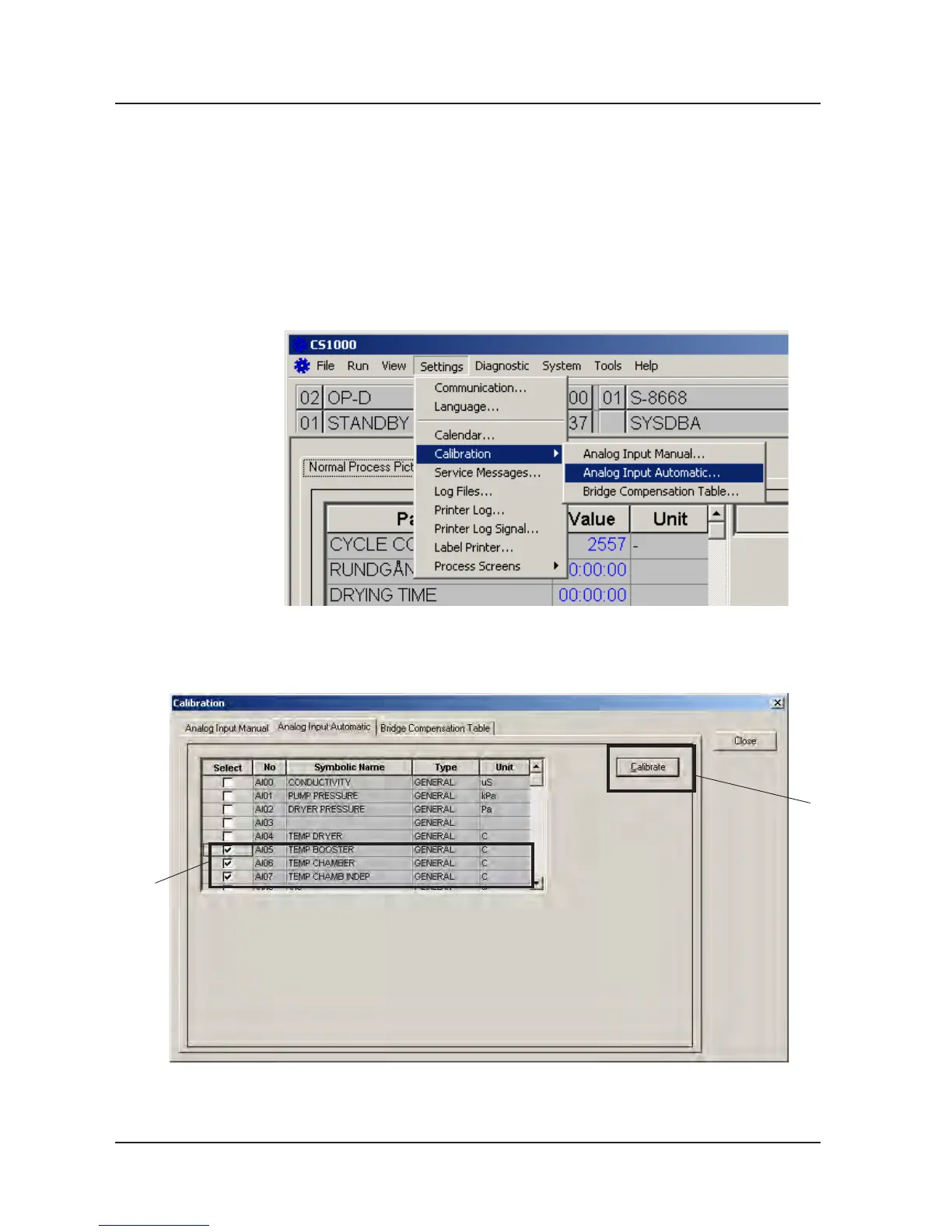

3. Start CS 1000 and choose Settings/Calibration/Analog Input Automatic...
4. Click Temp booster, Temp chamber and Temp chamb indep(A), then click Calibrate (B).
A
B
V1571
V1563
