Repair and adjustment
42
Service instructions
5015108-00 Edition 0403
Replacing a hose to a hose pump
This may only be done by authorised personnel.
Before starting work, make sure that the machine is isolated from
the electric power supply.

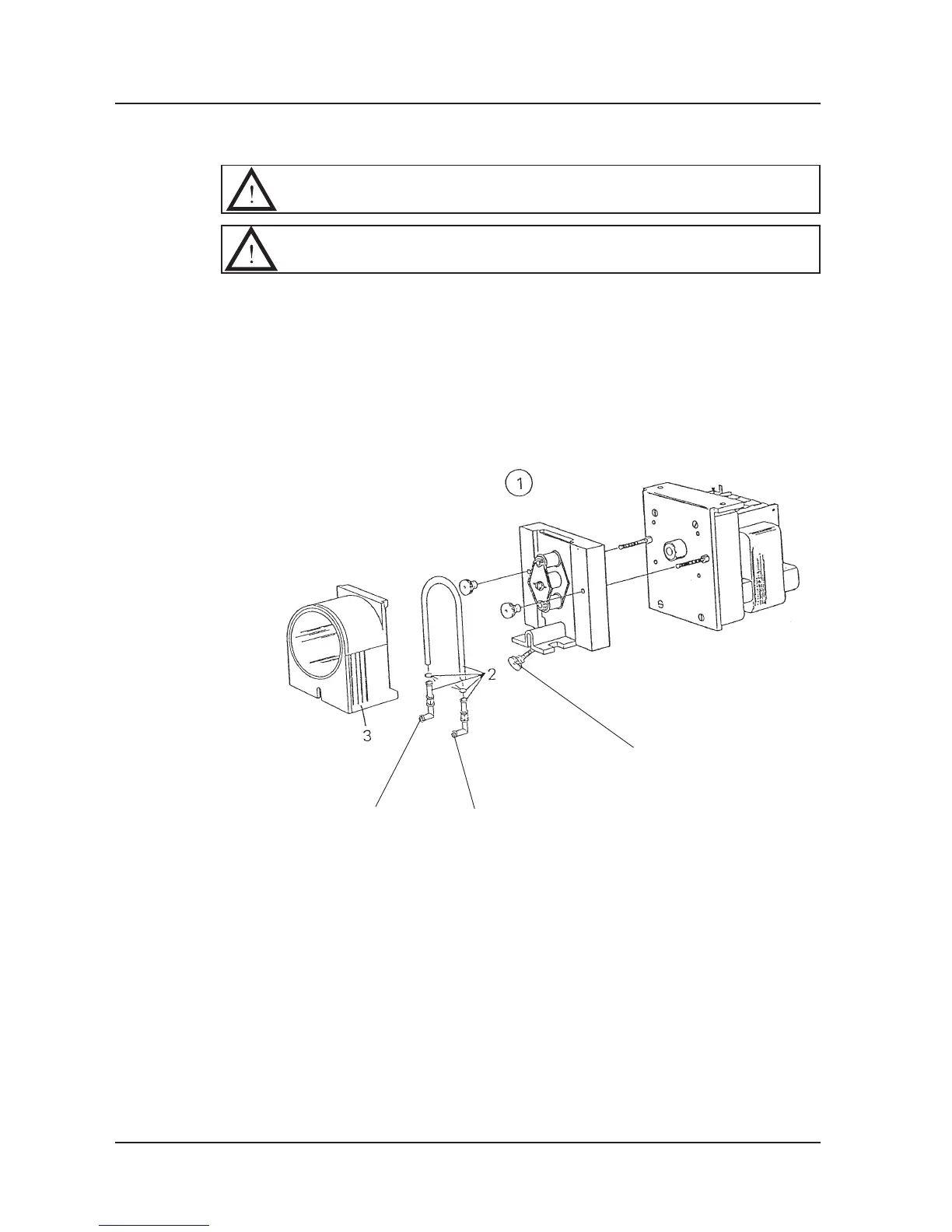

• Remove the cover (3) by unscrewing screw A.
• Disconnect the hoses at connections B and C.
• Take out the entire unit including hose (2) (a complete spare parts kit).
• Install the new unit.
• Refit the cover.
BC
A
V1043
